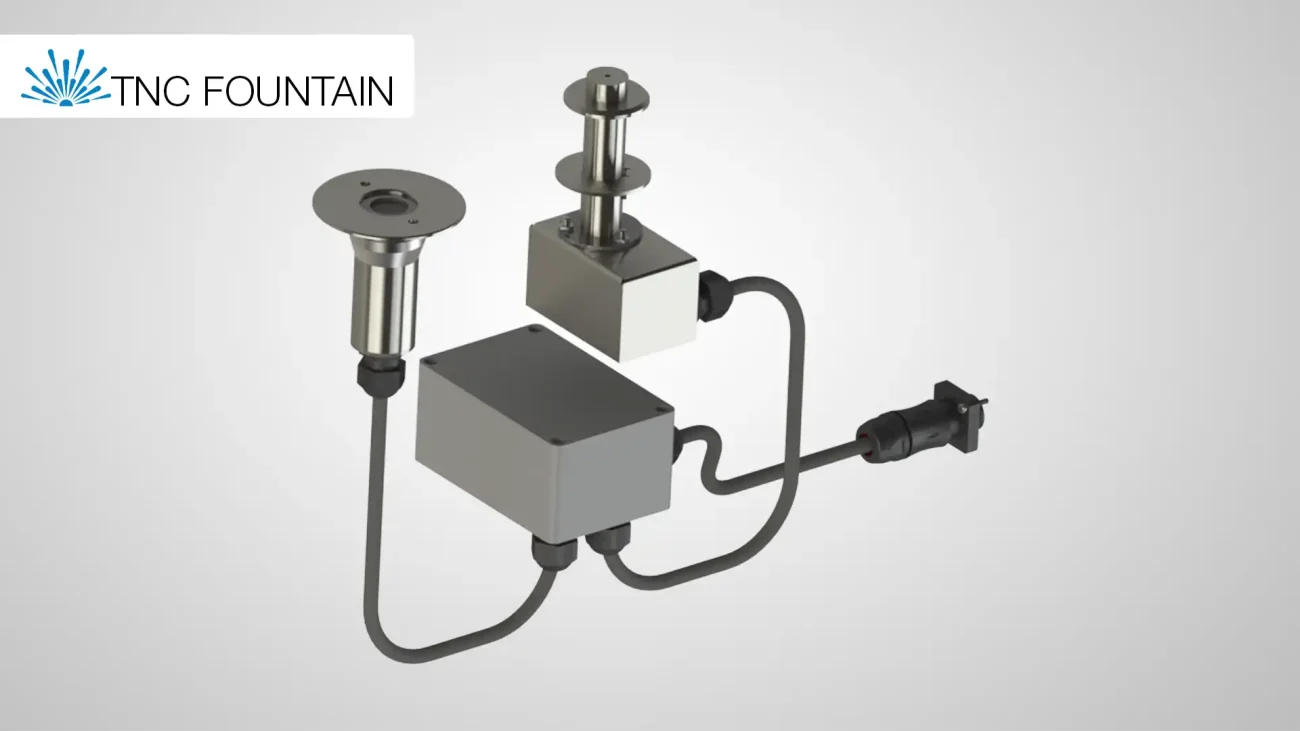

POP JET Fountain Nozzle

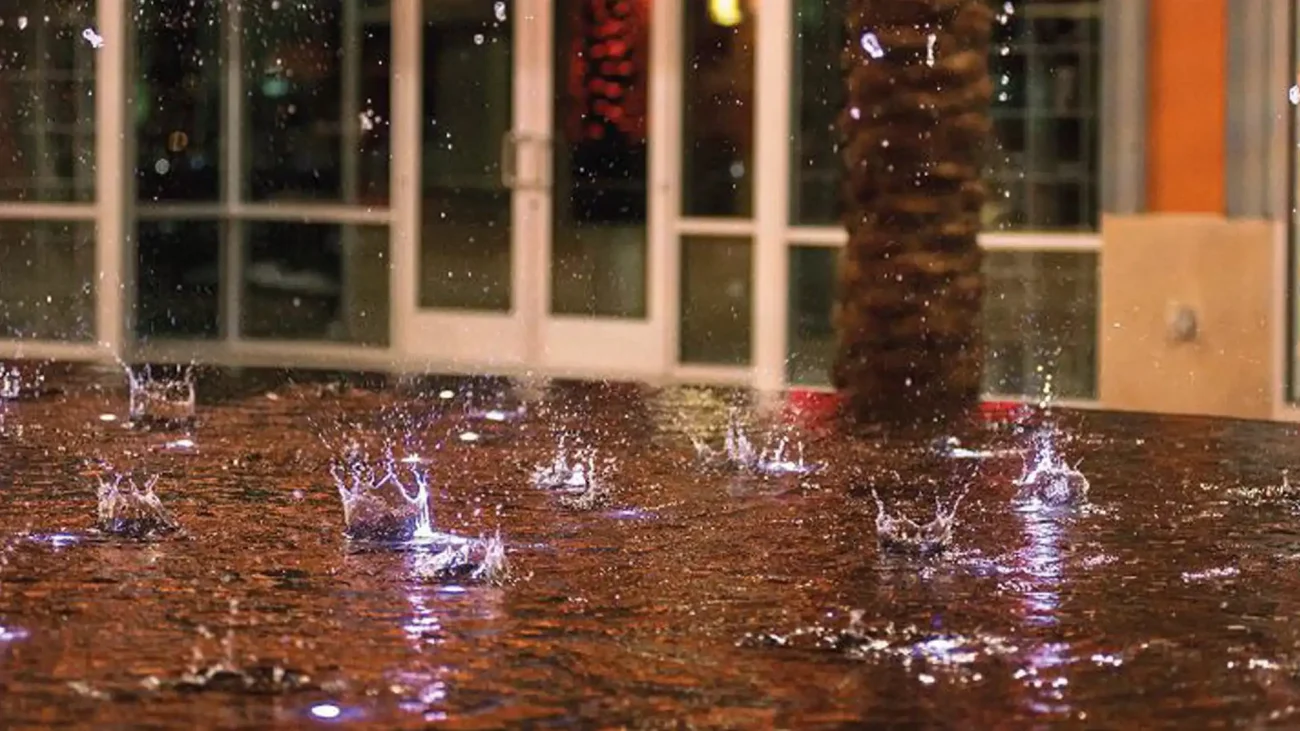

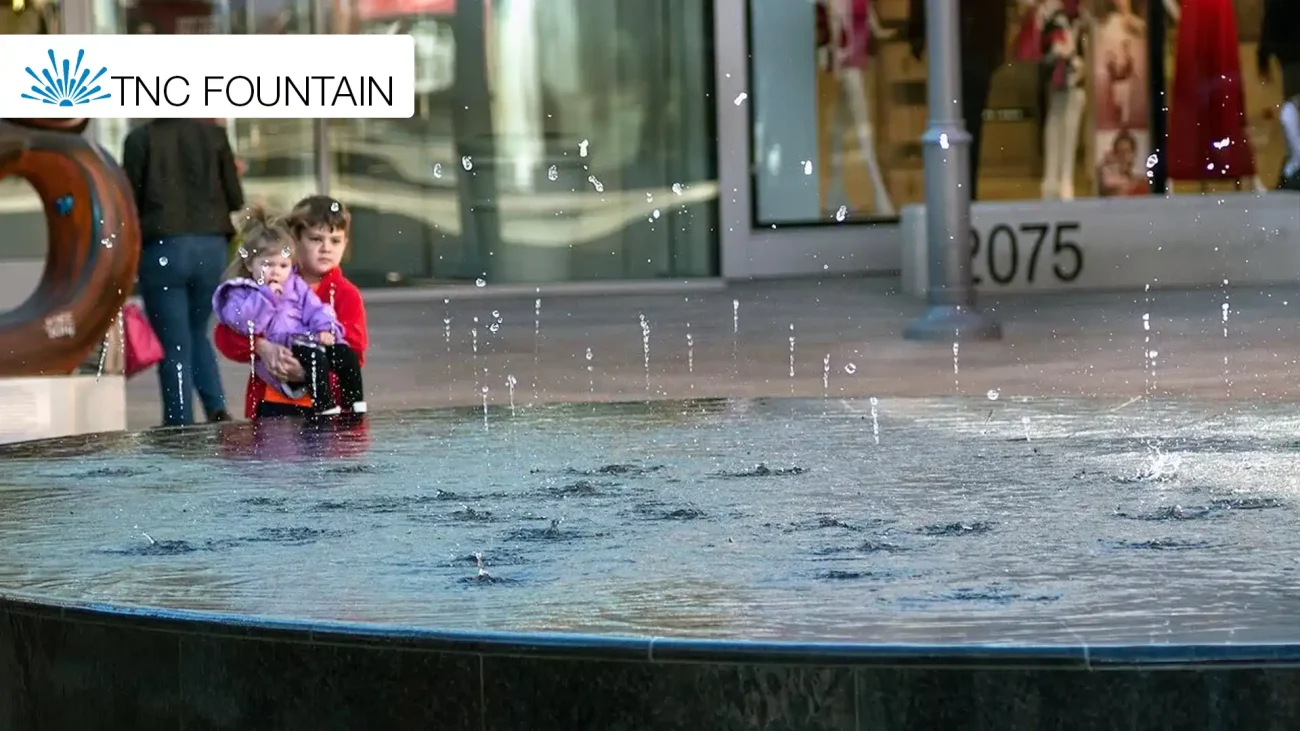

The POP JET Fountain Nozzle (called here POP JET) is a very well-made water system whereby single water droplets are generated to form fantastic displays of water splashed in midair. It offers a highly creative way of animating any placid pool or elegant surroundings with kinetic appeal. It gently distributes tiny, silky droplets–thus transforming any space into an ambient marvel—-serene while fraught with glorious kinetic energy.
For a similar specification, we would never forsake an elaborate luxury garden, a premium public space, or artists’ water installations available for creating captivating aesthetic pieces that will dissipate good vibes with some of the most enchanting sights for the eyes and sounds for the ears. The vividly glowing POP JET, made specifically for accentuating light reflection in water, soon comes to innovatively enliven otherwise boring horizontal plain lines with its fascinating appearance to fully mesmerize all onlookers.
The Technical Requirement: Core Specifications of the POP JET System
A POP JET Fountain is virtually established on numerous independently verified strong component requirements:
A Delicate Droplet Effect was made feasible by engineering the graceful, highly controlled marching of single to multiple timed water droplets.
Solenoid Valve System: An essentially reliable, water splash-proof IP68, 24VDC Solenoid Valve System known for swift operation and accuracy of timeline control.
Integrated Lighting: Every Integrated 3W RGB LED Lighting of possibility with color accents for music and show programming.
Construction Quality: The best 316L Stainless Steel Body (Saintess Stainless Steel) accommodates robustness and the best of corrosion-resistance into the system.
Control and Power: The electronics are empowered with 24VDC Powered & DMX-RDM Controlled for seamless integration for professional performances.
Connectivity: A convenient IP68 Socketed One-Cable Connection (Combo: Power + Data) ensures simple installation that over time shall forever be waterproofed.
Software Compatibility: Syncronorm Depence Library Available to team up with those nice companies for visualizing and programming the show.
Complete Specification Data for the POP JET Fountain Nozzle
Where architects are concerned, there will be some requirements for system design. The POP JET Fountain Nozzle is carefully prepared and the specifications will follow below;
| Description | Data/Detail |
| Model & Construction | POPJET (P/N: 1000) with 316L Stainless Steel (Marine Grade) |
| Dimensions & Weight | 2620T Standard Unit / 1 kg (dry) |
| Protection Rating | IP68 (Fully Submersible, IEC 60529 certified) |
| Operating Voltage | 24VDC ±5% |
| Power Consumption | 24W (Current Draw: 2A @24VDC) |
| Maximum Pressure | 2 Bar (Flow Rate: 8-10 L/min, adjustable) |
| Droplet Frequency | 1-20 droplets/sec (DMX Programmable) |
Illumination, Control & Mechanical Precision
However, integrated lighting and control protocols will be crucial for the Musical Fountain or Dry Fountain application:
Lighting System
Comprises of 3W high-output LEDs (RGB spectrum) within POP- an integrated system of light.
Is addressed via 16-bit DMX allowing 512 channels of high-resolution coloring to the system.
Has a lifespan and 10mm polycarbonate optic for maximum light transmission due to the absence of any reflection resulting from water and air.
Control and Connectivity
The protocol was DMX512/RDM and ensures two-way communication in the next address.
Maximum cable run, 100m with the use of signal repeaters.
Full compatibility is provided with professional visualization tools such as Syncronorm Depence.
Nozzle Assembly
Made from precision-machined brass with Ø10mm; the nozzle has a built-in anti-clog design.
It throws a 280mm spray height (optionally extendable to 500mm with the extended nozzle kit).
Is the POP JET Perfect for Interactive Musical Fountain Projects?
Yes, with its unique blend of high-speed solenoid actuation and DMX-RDM addressing, the AquaPOP JET is best suitable for dynamic, interactive Musical Fountain displays, particularly those leading through dry deck or high foot traffic areas.
The following key specifications endorse the show system for continuous, programmed performances:
Installation Readiness: Minimum pool depth of 300mm and the system can sit within a temperature range as wide as an ambient temperature of -10°C to +50°C.
Safety and Compliance: Commerce features include CE EN 60335-1, RoHS 3 and showed adaptability of more than 2,000 hours of salt spray test to have any corrosion effect with the system.
Operation Requirements: In principle, they deal with water filtering down to 50 microns; it typically involves pumping via a 0.5HP centrifugal pump (recommended).
Indeed, the POP JET Fountain Nozzle is a diverse fountain mixing on-the-fly from subtle to moderately fast-pattern alterations, with numerous other choreographed motions intrinsic to the music experience as part of a sophisticated Musical Fountain System.
Specifying Your POP JET System
For precision with regard to hydraulic and electrical integration involving the POP JET Fountain Nozzle within your forthcoming Musical Fountain or architectural water feature project, consult the detailed data sheet for pressure/flow curves and full mechanical specifications.
