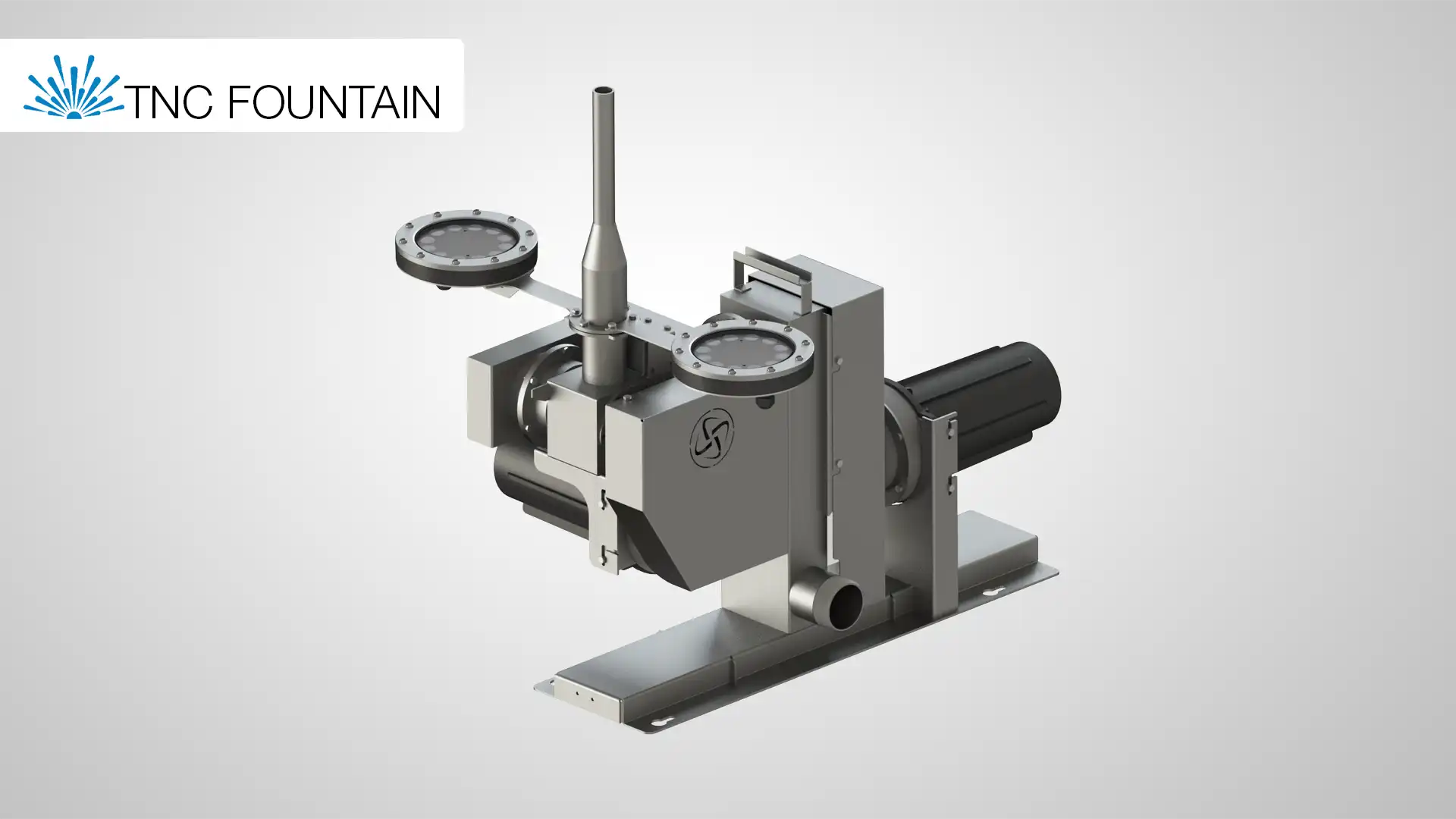

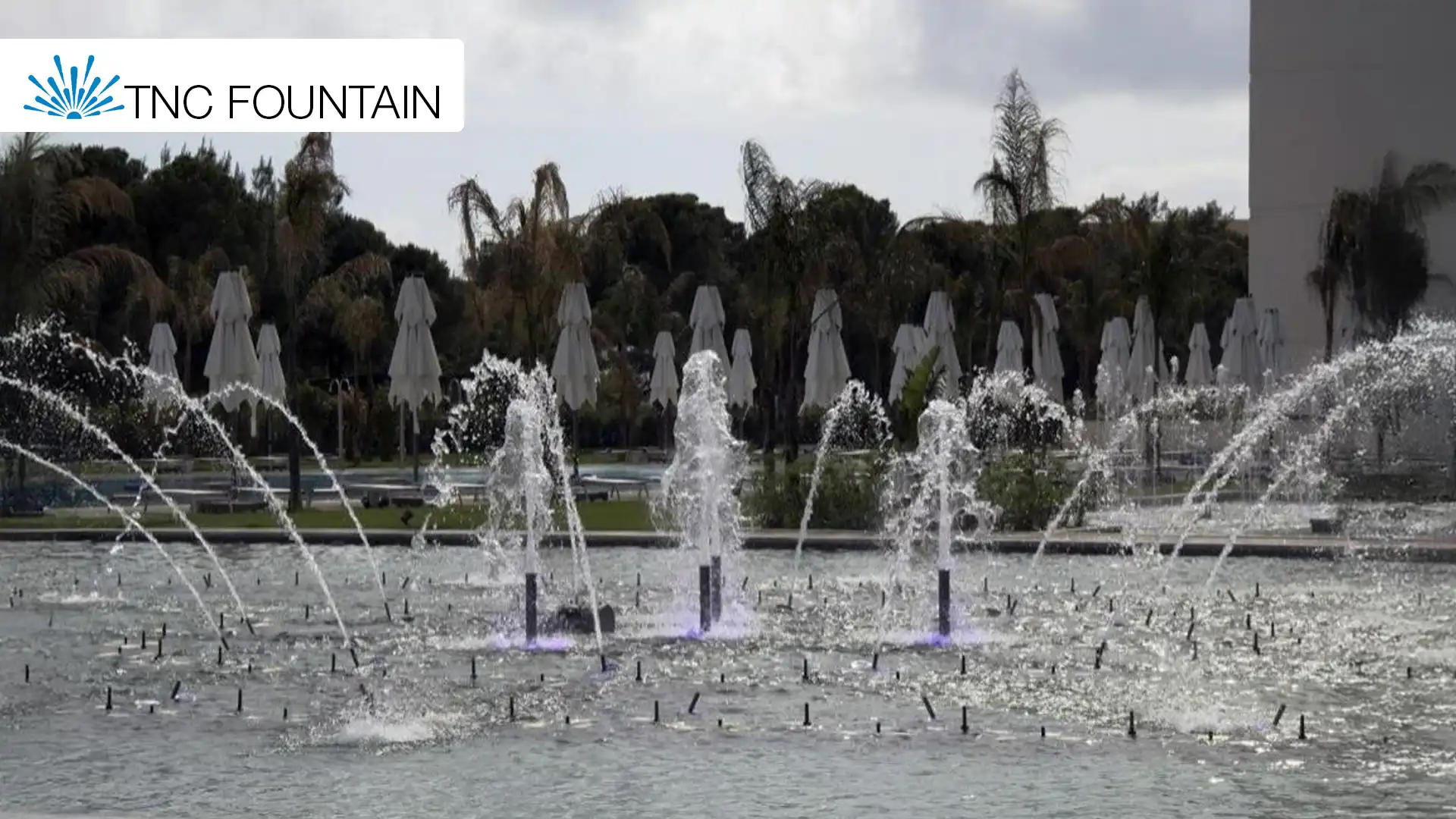

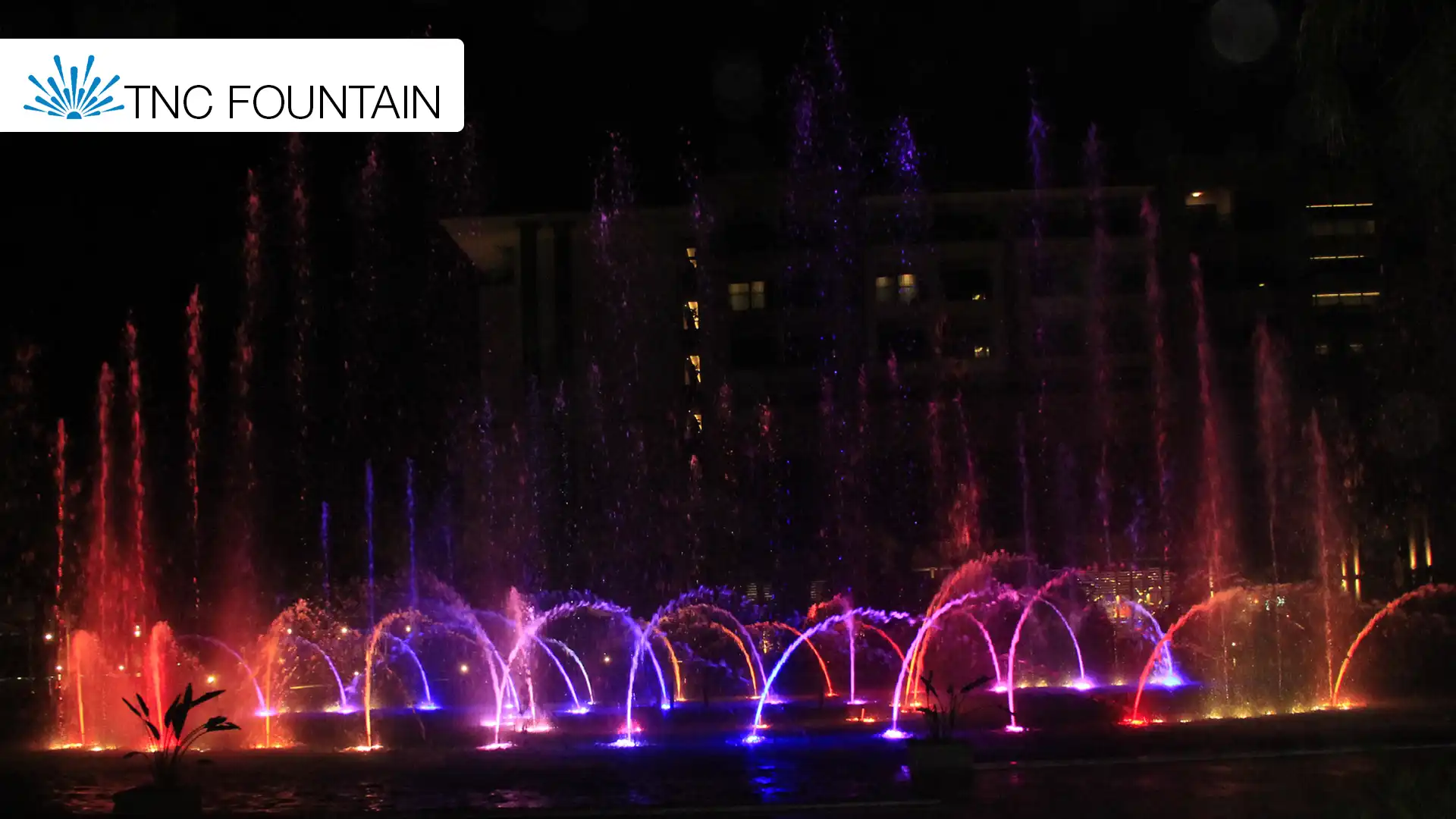

Aqua ROBO Dancing Fountain Nozzle
Aqua ROBO Dancing Fountain Nozzle
The ROBO Dancing Fountain Nozzle has been constructed to bring water displays to still higher levels of life and motion: this high-tech double-axis nozzle produces water patterns that are completely choreographed, swirling, pacing, and pitching, captivating audiences with true-dimensional fluid motion.
The ROBO Dancing Fountain Nozzle is best suited for music-led animated fountain projects as it guarantees seamless integration and marvelous functionality that beyond doubt transforms every water feature into an irresistible visual treat necessary for world-class Musical Fountain.
Core Engineering & Robotic Control Specifications
The ROBO, just recently released for this category, is really the greatest moment for ongoing innovations in water features, interfacing robotics with elegant fluid movements. Certainly, the poor performer ROBO simultaneously appeals to captivate 3D water ballets through stunning cantations and dialogue on music and lighting effects.ventrialised for professional installs where reliability levels and positional accuracy is of great importance. Categorically, the technical superiority shall be present in the following:
Movement Technology: Dual-Axis Servo Drive, literally, may rotate 180 degrees on each axis, obtaining full freshly designed spherical coverage for complex water choreographies.
Control Precision: DMX-RDM Control electronics ensure seamless integration with professional show systems and feature IMU Sensor Technology for real-time auto-calibration equating to immaculate positional accuracy (pm 0.1^circ).
Constrictions: Constructed of High-Grade 316L Stainless Steel (Marine Grade) for giving a surety of unsigned heavy built, which is industrial, heavy duty quality fit for continuous operation under unfriendly conditions.
Connectivity: IP68 Waterproof Socket affords a one cable connection option (power + data integration), which becomes a lot easier for initial installation as well as maintenance in the long term.
Flexibility: With a flange mount system the ROBO Dancing Fountain Nozzle supports Multiple Nozzle Options, allowing for various water effects, while also featuring integrated RGBW lighting options provided by the LIGHT series.
| Category | Specification | Technical Detail |
| Model & Material | ROBO (Professional Robotic Series) | High-Grade 316L Stainless Steel |
| Physical | Dimensions (L×W×H) & Weight | 600 × 727 × 730 mm / 18 kg (Industrial) |
| Electrical Input | Voltage & Consumption | 24 VDC / 48 W (Nominal) |
| Control System | Protocol & Speed | DMX-RDM / 120°/second (Max Speed) |
| Precision | Positioning Accuracy | pm 0.1^circ (Laser Precision Movement) |
The Robotics of Water: Precision Movement and Synchronization
The groundbreaking high-definition robotic movement system generated an intricately harmonious 3D water pattern that was impossible to achieve using conventional, limited single-axis nozzles. The ROBO Dancing Fountain Nozzle has given life to endless fluid motions that hold one’s eyess’ fancy and truly unforgettable visual events.
Achieving Perfect Synchronization in a Musical Fountain
It is because of the superb features of the system that the water ballets remain perfectly synchronized, whatever the complexity of the Musical Fountain score shall be:
Dual-Axis Servo Drive: With the double-axis servo setup, it can rotate through 180° circumnavigating the entire sphere.
IMU Sensor Technology: Operates here to with a robotic function, acknowledges real-time auto-calibration.
Park & Zero Position Commands: These are a very few defined positions of preset reset providing quick calibrations and absolutely accurate synchronisation among different units.
Positioning Accuracy: Error falls within the limits of pm 0.1^circ (Laser Precision Movement).
Maximum Speed: Ensures maximum response speed at 120^circ/second for speedy response and dynamic choreographies.
Compatibility: Fully integrated and supported through Syncronorm Depence Library profiles, provided with an Art-Net/sACN Compatibility for smooth network integration.

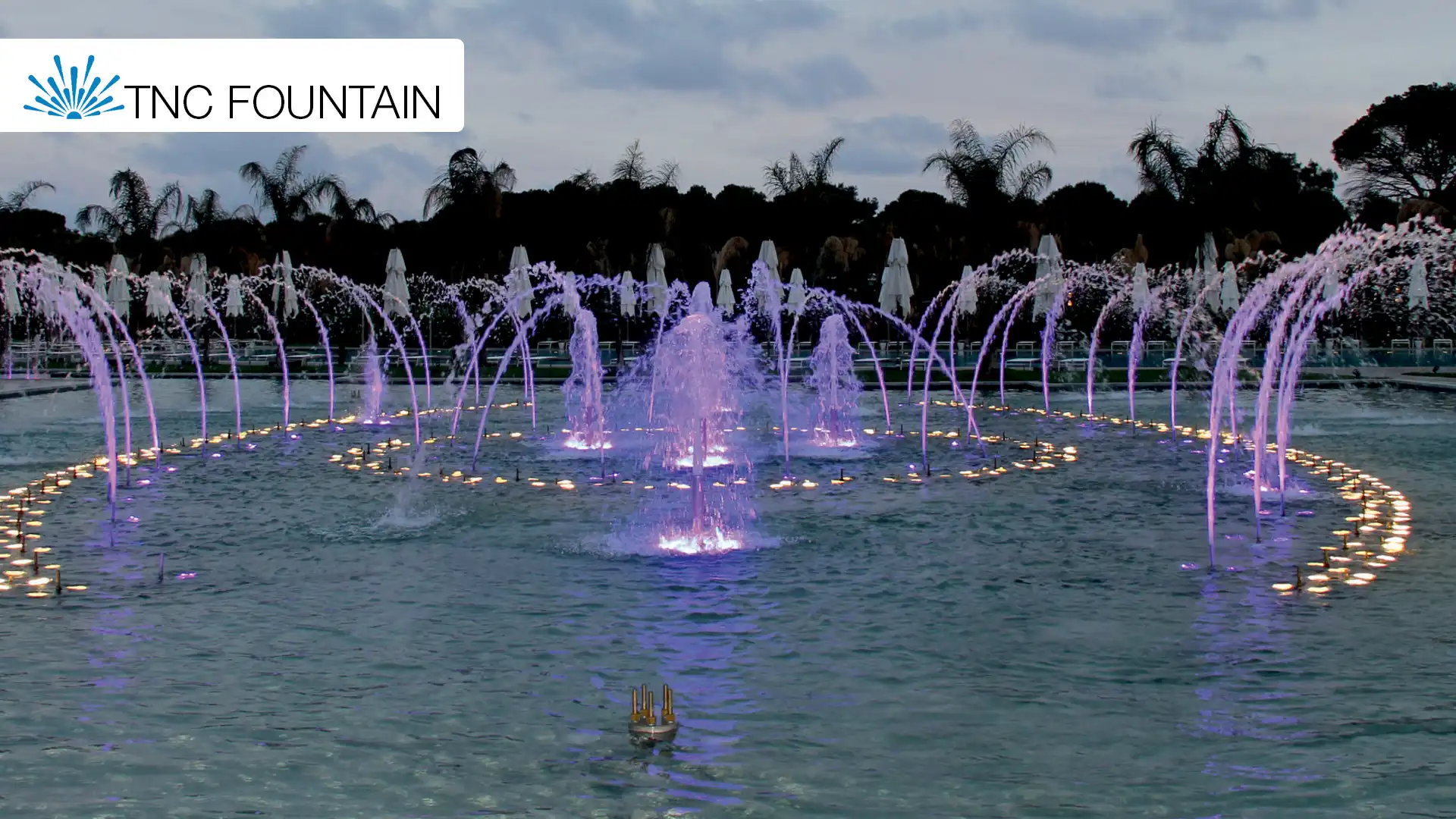

Is ROBO the Right Choice for Architectural Landmarks?
Definitely! The automated precision of the robotic ROBO with industrial reliability enhances the entire installations of this special class, ROBO Dancing Fountain Nozzle, in equally demanding sectors:
Musical Fountain Productions: The extreme precision that allows for creating the complex 3D water patterns dances so-to-speak in accord with those little musical notes-all the way. It dances with both subtle melodies and loud crescendos.
Architectural Water Displays: The device is perfect for metamorphosing the bleakness of public spaces, corporate plazas, and architectural landmarks into beautiful water art that can reinvent itself throughout the day, programming sophisticated shows that unfurl daytime elegance and over-the-top night spectaculars.
Theme Parks & Resort Attractions: The sturdy construction of the product ensures reliability in operating, thereby augmenting guest experience in high-thrill amusement environments.
Event Productions & Live Performances: Any professional production team feels quite contingent on its fast response time and very strong control for its fabulous water effect synchronization along live performance attractions.
Installation Requirements and System Resilience
The Aqua ROBO system offers the highest user resilience and integrated operational capability:
Installation Requirements: Minimum Water Depth: 500 mm; Recommended Flow Rate: 100-600 L/min; Water Quality: Filtered to 50 microns.
Electrical System: Operates on 24 VDC (Low Voltage Safety System); Power Consumption: 48 W (Energy Efficient Operation).
Compliance & Standards: Adheres to CE, RoHS standards, and carries the IP68 Waterproof Rating.

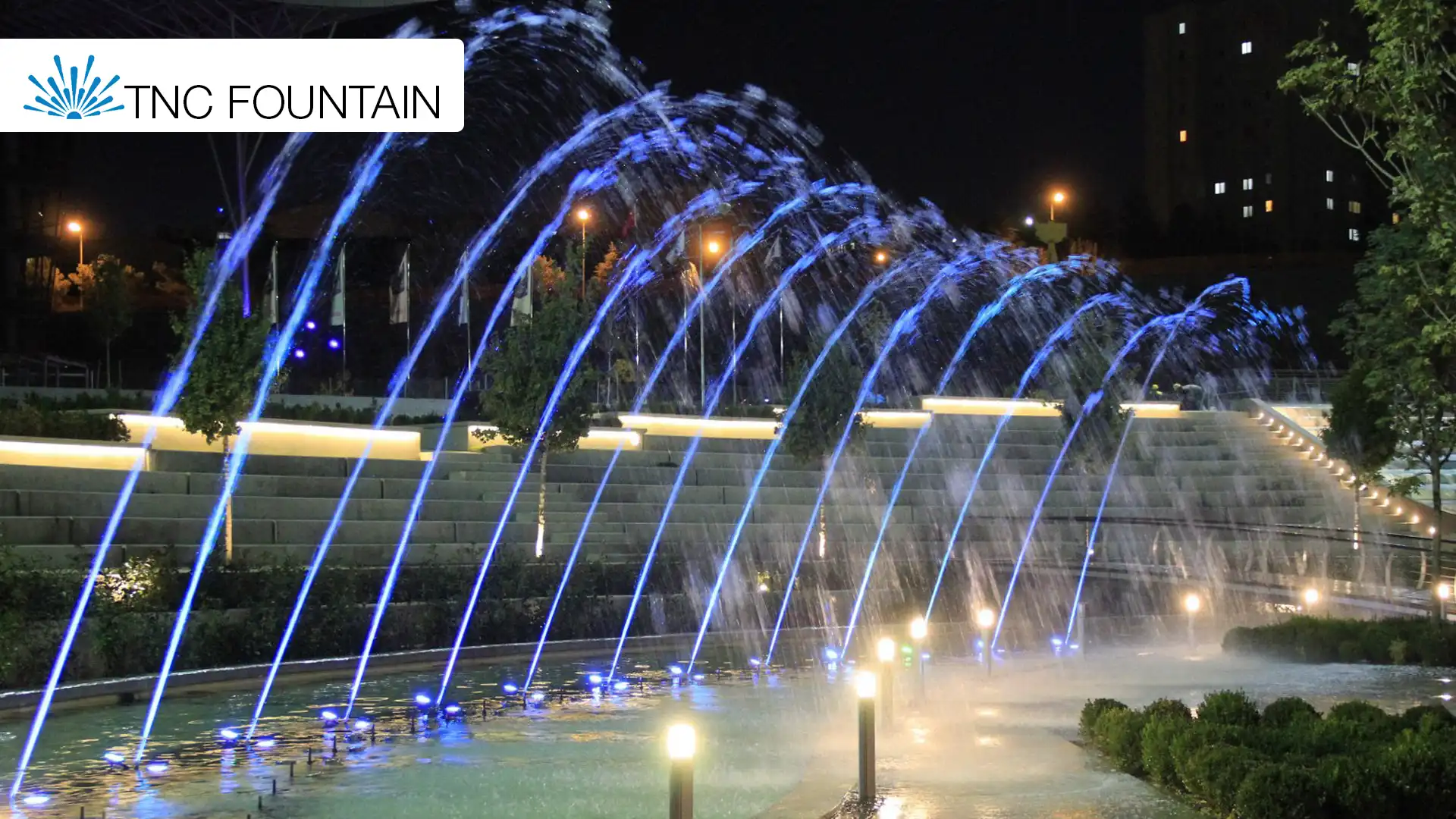

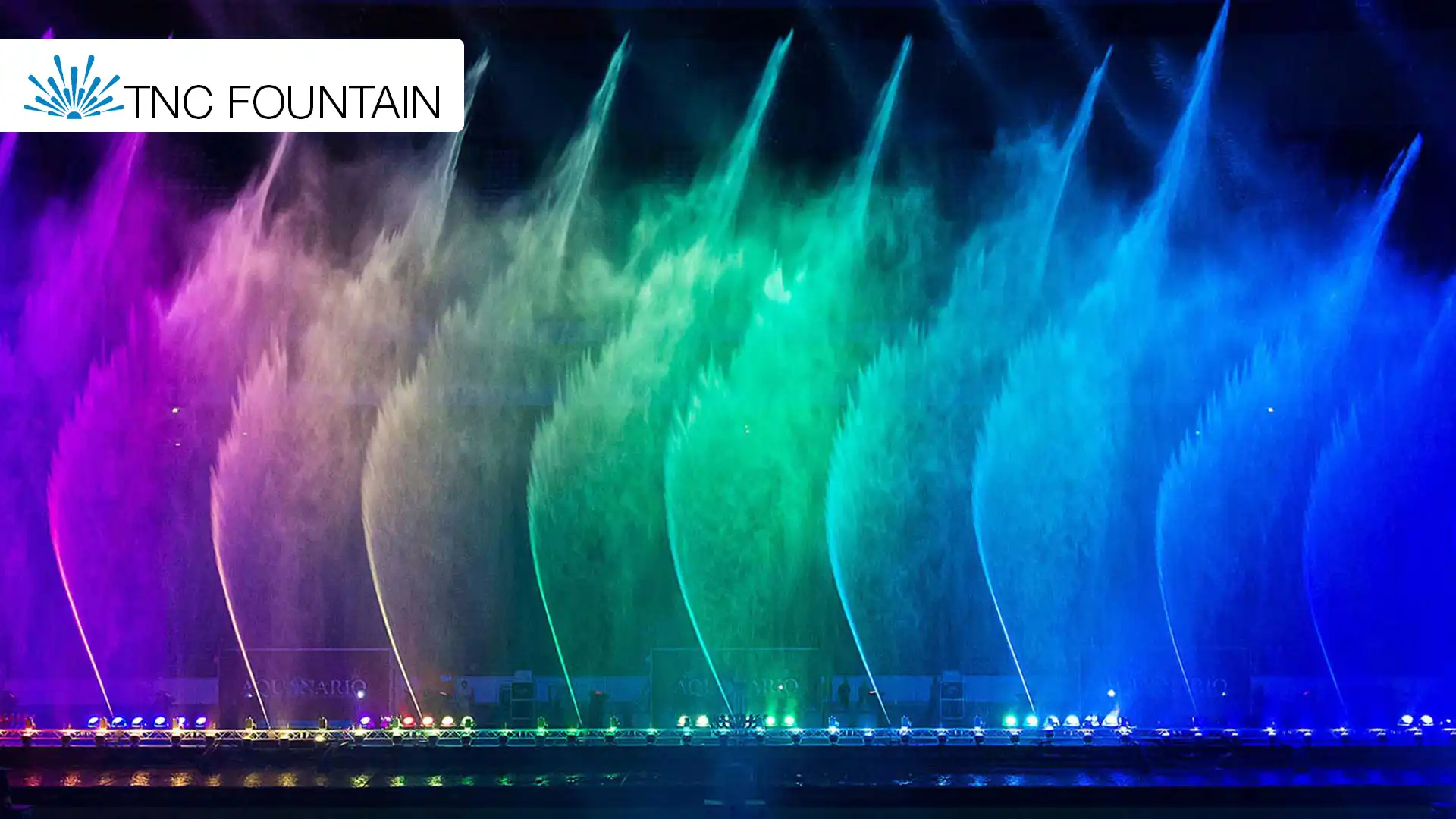

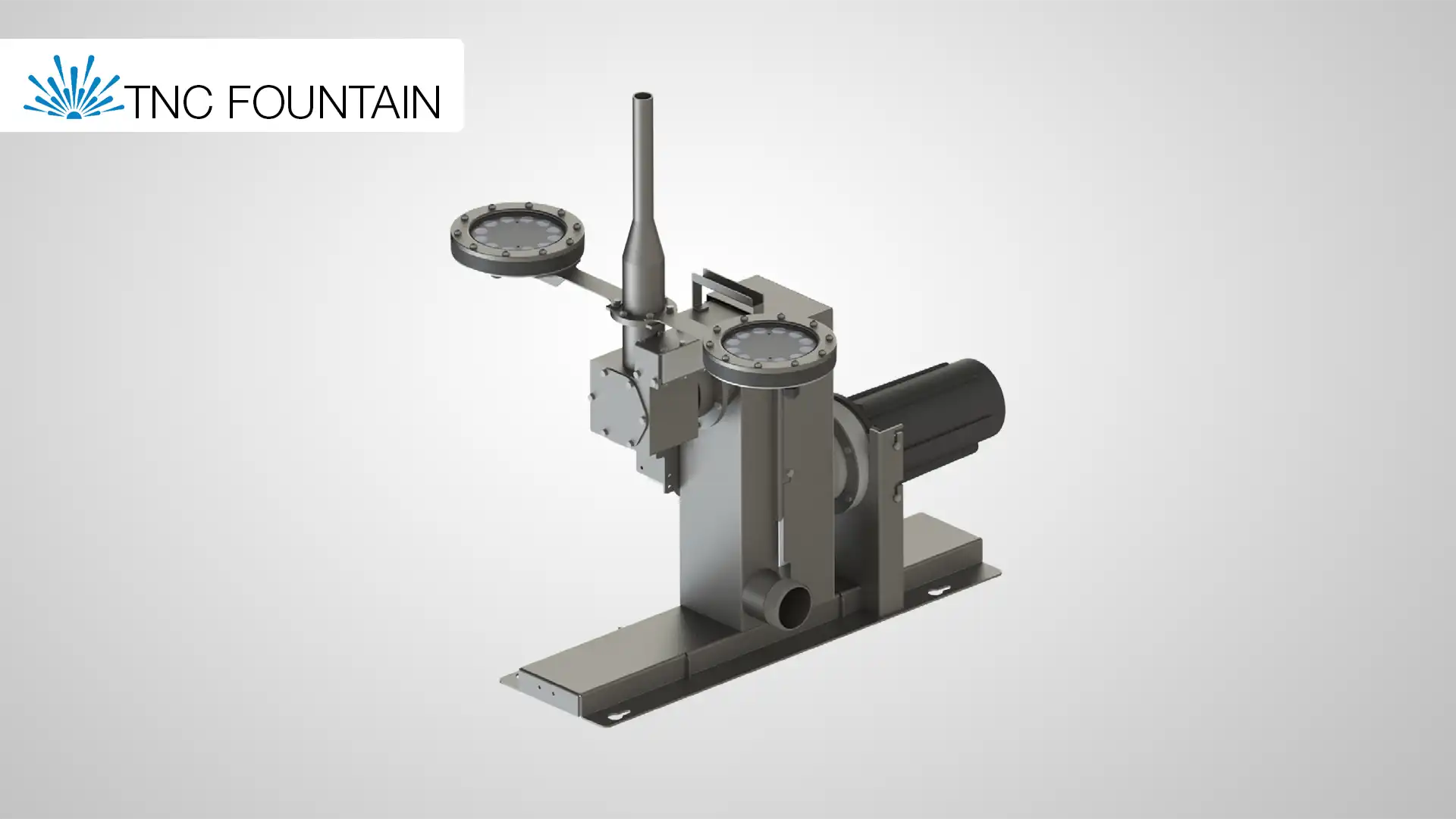

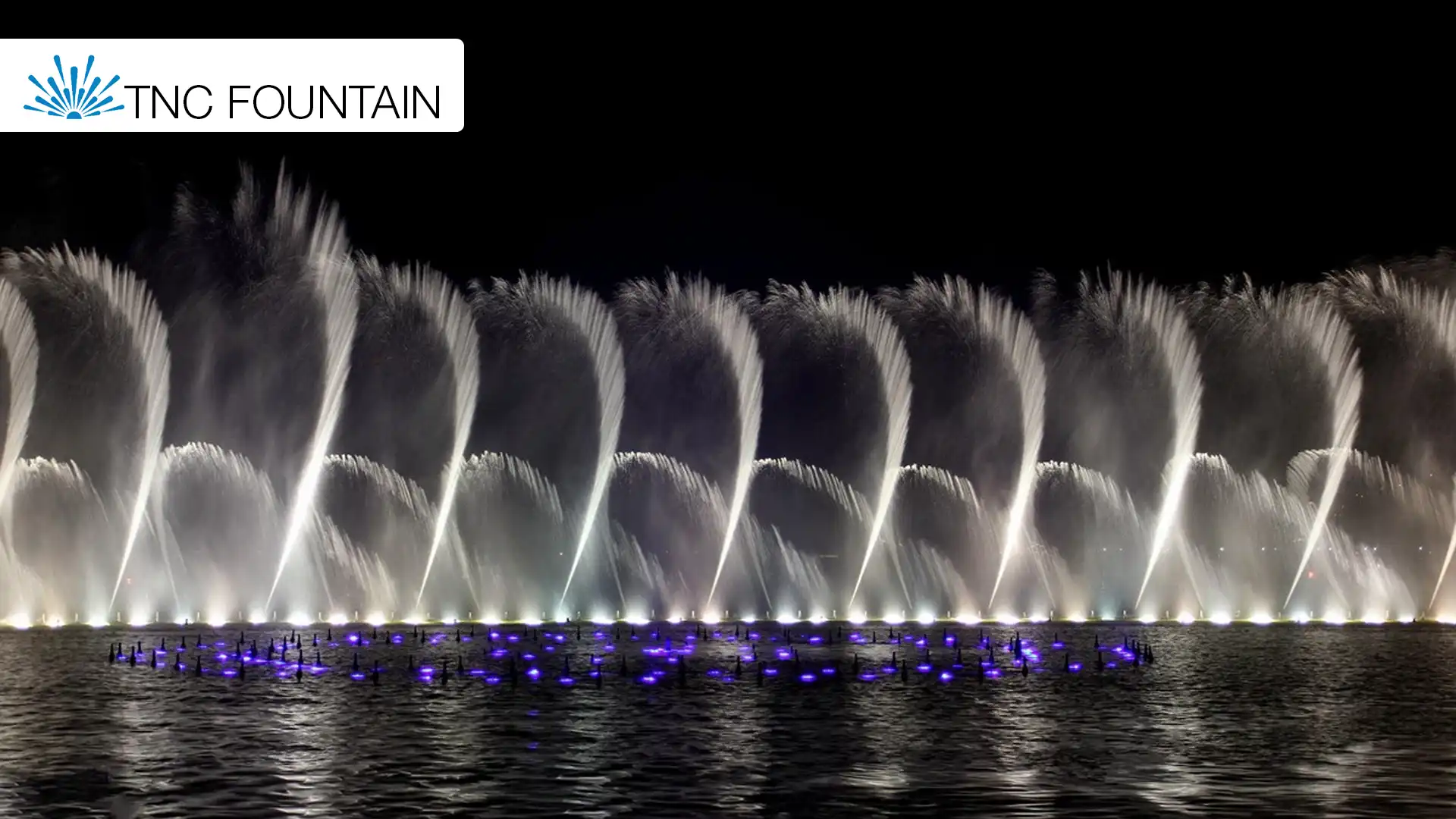

Aqua SWING Dancing Fountain Nozzle
The SWING Dancing Fountain Nozzle epitomizes the quintessence of water movement, having been irrefutably engineered for sheer elegance and accuracy to perfection. This sophisticated device, which is controllable using DMX, produces convincing water patterns that fluidly wave and gracefully move in a synchronized manner.
The SWING’s operational masterpiece, with its 180° single-axis rotation, creates captivating motions, while its IMU sensor input further improves the performance design protocol, keeping the system perpetually unfailing. The presence of such an extremely compact-yet-powerful system is characterized by dramatic results which can upgrade any static installation into the focal point of a living, dynamic Musical Fountain scenario.
Core Engineering & DMX Control Specifications
Now here comes the SWING SWING Dancing Fountain Nozzle, run by unflinchingly exact engineering, delivering reliable and vastly authentic motion performance, against basic environmental challenges:
Robust Build: This one is a Marine-Grade 316L Stainless Steel water feature that bestow extra type of resistance to its material of construction against corrosion, which can serve lifetime deployment.
Accurate Controls: Served by an electronics system of 24VDC & DMX-RDM Control, which make all movement interactions seamless for the pro show systems with fine result in DMX resolution (8/16/24- bit).
Motion Dynamics: It performs at different angles, horizontally, through a Servo Drive Control on a Single Axis, involuntarily presenting a wide 180° Moving Angle from the center, such that movement may be seen while in complete swing.
Smart Features: It is mated with the IMU Sensor Integrated for Auto Calibration, the accuracy of which checks the geometry technically and allows the device to effortlessly realign when need be anytime there exists faultlessly designed Park Position & Zero Position Commands.
Easy Installation: Impressed until the end with an IP68 Socket One Cable Connection, it just simplifies the waterproof wiring necessities and together shaves off heaps of remarkably time-wasting site installation time.
Made for Programming: For global standard types of show systems, Syncronorm Depence Library compatible and install-ready in conjunction with any show software present on the scene.
Verification of End Performance: Output Hydraulics & Motion Precision
The Dancing Fountain Nozzle leads the way on how water can be made to dance with grace for fountain displays that demand rhythm and chic movement–coetaneous with any standard high grade of Musical Fountain.
Projecting into the future, the technical speaker will be dealing with high-energy and musical visuals. This could involve sub-systems in the theatrical realm, such as lasers, sensors, DMX controllers, pyro-electricals, and so on.
The detailed tabulation below highlights the flow performance for varied sizes of nozzles as they project at different heights, as displayed:
| Jet Height | Ø17 Nozzle | Ø20 Nozzle | Ø23 Nozzle |
| 5m | 141 L/min @ 0.68 bar | 200 L/min @ 0.57 bar | 240 L/min @ 0.74 bar |
| 10m | 205 L/min @ 1.26 bar | 354 L/min @ 1.90 bar | 380 L/min @ 1.55 bar |
| 15m | 360 L/min @ 1.91 bar | 443 L/min @ 2.30 bar | 550 L/min @ 2.90 bar |
Advanced Motion Control and Precision Choreography
The Single-Axis Precision Movement System consistently evokes from its characters–those most sophisticated of water arcs–harmonic, graceful, and well poised to go hand in hand with the tones of a Musical Fountain. In advanced motion engineering of this sort, measurable and demonstrable specifications have been given a high premium for an accurate designing in every respect:
Movement Axis: The sole means of articulating features that enter the key phrase Perfect Water Arcs.
Range of Motion: A satisfactory sum of 180° (±90° from the central axis) out of a more moderately extensive throw.
Positional Accuracy: It takes ±0.5° (Laser Precision) in itself; this is a significant component of coordination tied to the magnificence to be achieved in synchronization across action performance from one system to another.
Maximum Angular Velocity: 90°/second (Rapid Response) is required; with this value, the nozzle effectively keeps track of the music tempo while also accomplishing rapid setup time.
Required Immersion Depth: The Immersion Depth of 500mm ± 20mm must be maintained for optimal hydraulic and mechanical operation.
Is the SWING Ideal for Large-Scale Musical Fountain Productions?
Yes. Hence, a high-capacity and extremely high-fidelity performance SWING established itself as the right SWING Dancing Fountain Nozzle for global high-profile applications:
Musical Fountain Productions: The machine turns ordinary shows, in rhythm with the musical scores, into golden moments in audiences’ memories. For the SWING, flowing arcs sway to the rhythm. This occasion will renew audience interest in this intense and indispensable thrilling production.
Architectural Water Features: Overarchingly, the SWING Dancing Fountain Nozzle is aesthetically captivating in a water movement that highlights the architectural ambience for sale; hence, the ease with which the SWING can be tailored to various water movements works in its favor in all building lobbies, public plazas, and urban installations.
Theme Park & Entertainment Installations: Time and again, big theme parks and entertainment centers all across the globe have favored installing SWING for engaging water shows that attract greater numbers of their guests and increase dwell time.
Quality Assurance, Compliance, and Installation Details
To ensure long-term safety and unbeatable performance, the system has as rigorous quality assurance, compliance, and numerous other integration factors totally backing it:
Durability and Compliance:
2000 Hours Salt Spray Tested: Ensures durability against long-term corrosion resistance.
IP68 Waterproof Rating: Provides maximum water protection through immergence.
CE and RoHS Compliant: Complies with European safety standards and environmental sustainability.
Installation Requirements:
A Minimum Heat Aloft: 500 mm.
Recommended Flow Rate: 100-600 L/min.
Water Quality: Filtered to 50 microns (A must for longevity and mechanism protection).
Internationally acclaimed, the SWING Dancing Fountain Nozzle is celebrated by professionals as the class act when it comes to precision, reliability, and superior performance on the grand stage of the high-octane Musical Fountain environment.
Next Steps: Specification for SWING Musical Fountain
For a more comprehensive case of technical integration and hydraulic planning tailor-fitted to the project’s integrity, talk to the engineering team who can enlighten you on the Aqua SWING flow requirements and advanced control mapping.

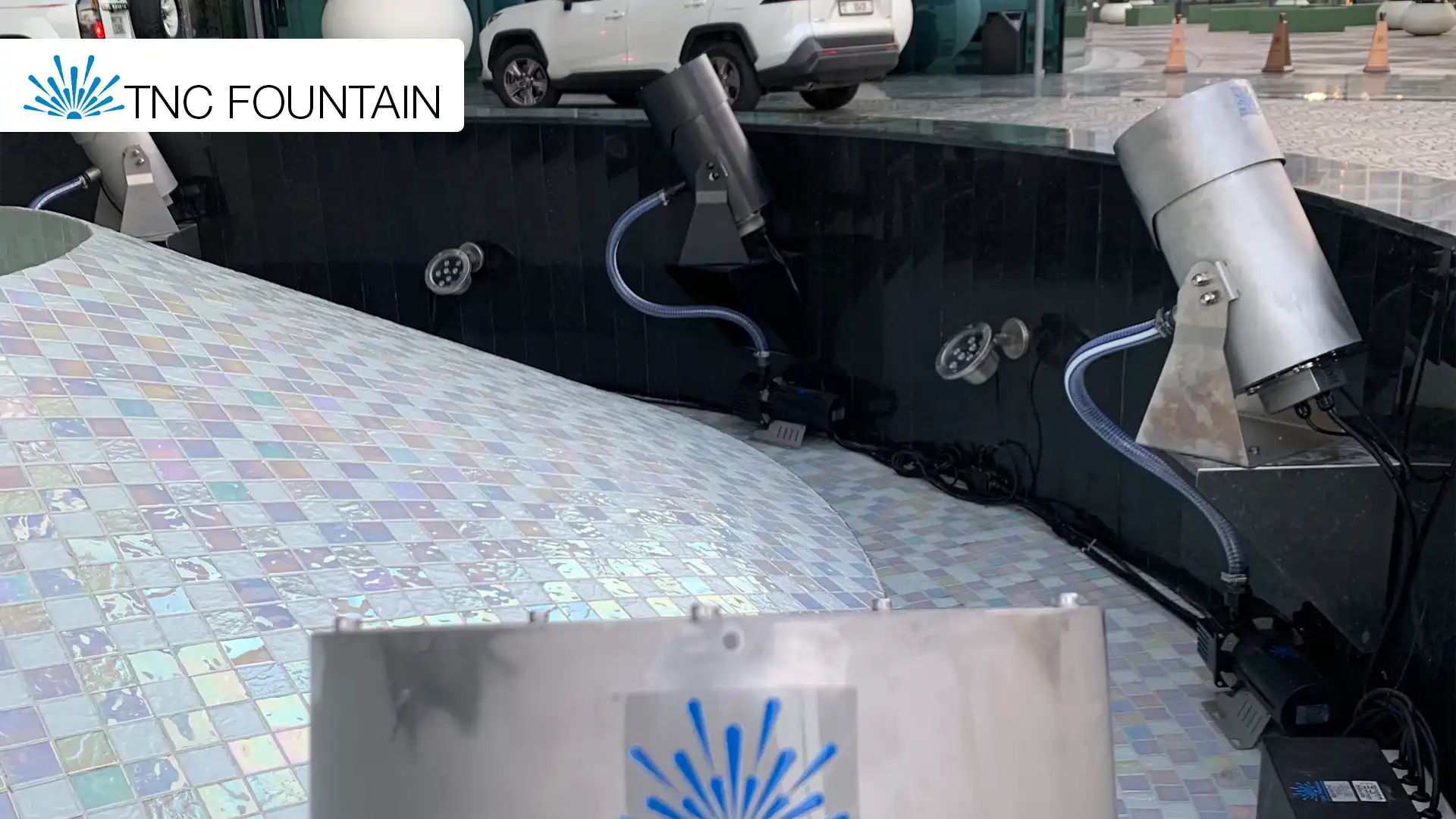

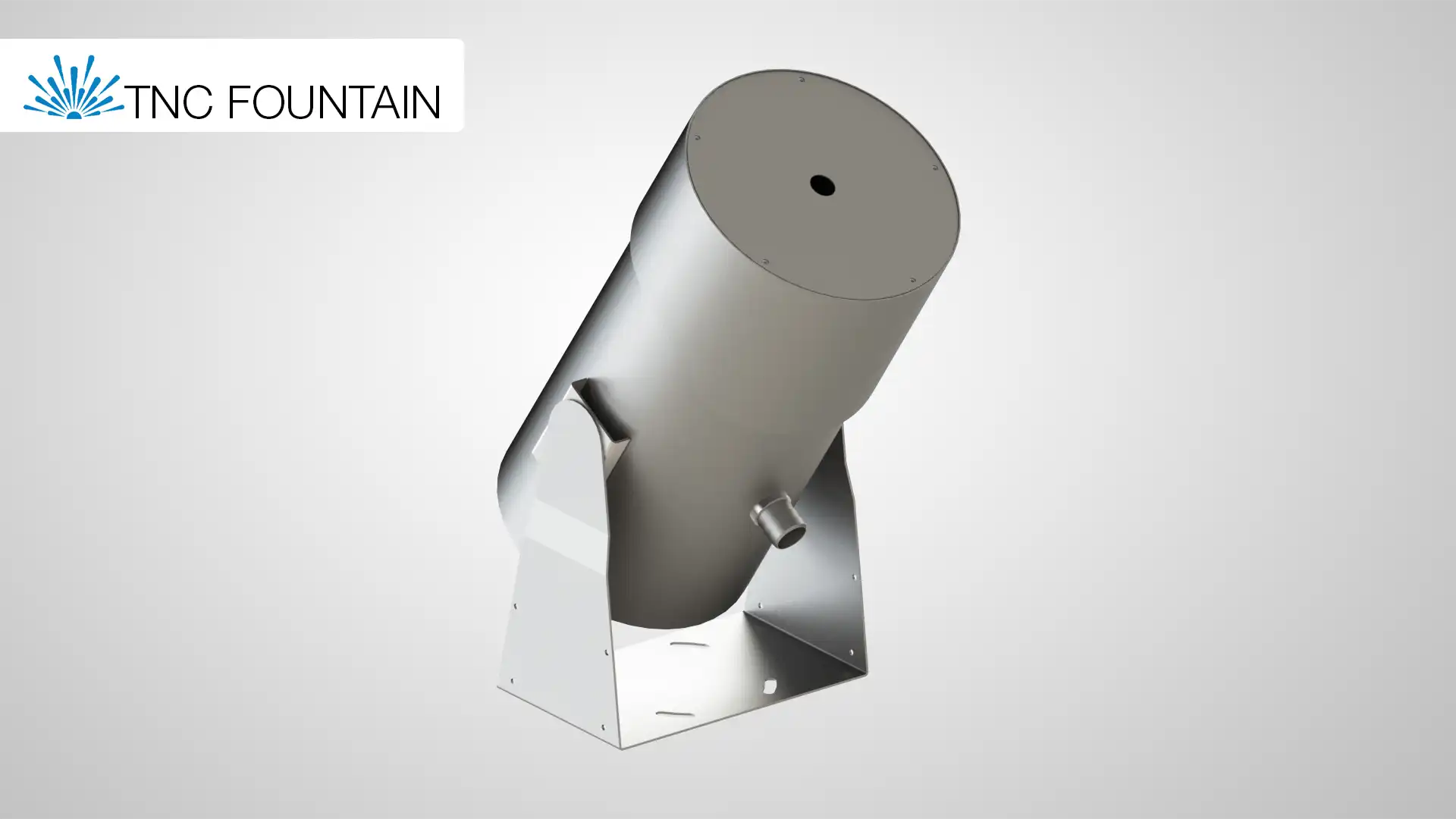

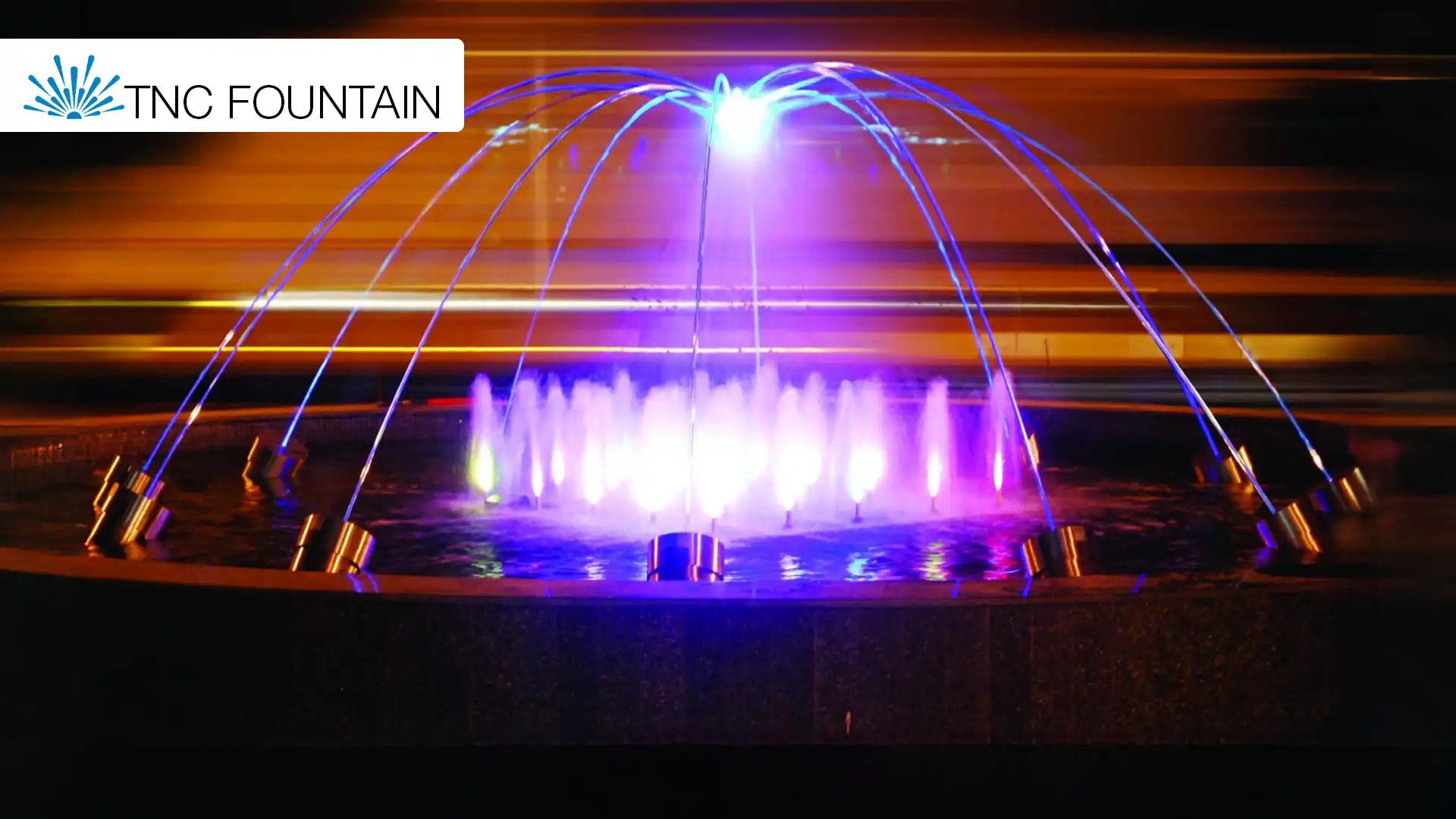

Aqua JUMP Laminar Fountain Nozzle
The JUMP Laminar Fountain Nozzle is developed particularly for producing grand visual effects with the laminar water arches. This is a perfect choice for any design-oriented installation where applications are extremely minimal spatially or topologically, including dedicated indoor settings. This highly specialized Fountain Nozzle is particularly useful for pools with variations in elevation or complex geometric layouts, as it helps the user to precisely set the arch height and endpoint trajectory simply by altering the angle of the water outlet.
Each unit comes outfitted with RGBW LEDs to provide saturated lighting colors that can be fully customized to turn the water arc into a united light-and-water show. The water streams can also be optionally segmented into sharp, clear laminar sections by installing a high-speed cutting unit that enables complex jumping jet animations and herd rhythmic happenings, essential for a professional Musical Fountain.
Technical Mandate: Core Performance and Construction
The installation of the JUMP unit accomplishes the next evolutionary step in controllable water effect generation. It fuses the science of fluid dynamics and electronic control more deeply than before to realize captivating displays of jumping jets. This assembly is constructed using robust materials that promise reliable operation underwater:
Robust Construction: 316L Stainless Steel (Marine Grade) body is corrosion-resistant and durability-oriented for a long-lasting performance.
Seamless Control: 24VDC Powered & DMX-RDM Controlled electronics lead to seamless integration with professional show control systems, providing high-resolution DMX (up to 24 bits).
Connection Integrity: The use of an IP68 Socket One Cable Connection allows for easy waterproof wiring while also providing maximum reliability while submerged (rated submersible to 2m).
Programming Ready: The availability of the Syncronorm Depence Library guarantees software compatibility, allowing it to be ready for professional visualization and show programming straight out of the box.
Dynamic Effects: Integrated Slice/On-Off Function allowing abrupt interruption of laminar streams for sophisticated riveting dynamic effects which are paramount in the design of modern Fountain Nozzle.
| Category | Specification | Technical Detail |
| Model & Material | Model Number & Construction | AJ-1080 / 316L Stainless Steel |
| Physical | Dimensions & Weight | 140 × 240 × 480 mm / 15 kg (dry) |
| Hydraulic Flow | Pressure Range (Optimal) | 1.5-3.5 bar (optimized at 2.8 bar) |
| Flow Rate | LPM (Varies by Nozzle) | 12-18 LPM |
| Control System | Protocol & Resolution | DMX512A/RDM / 8/16/24 bit |
Precision Engineering: JUMP Laminar Fountain Nozzle Arc Matrix
Engineers use verified performance matrices to design their projects for the proper integration of the JUMP Laminar Fountain Nozzle. Performance is directly determined with respect to pressure and discharge angle:
| Angle | Pressure | Max Height (12mm) | Throw Distance (12mm) |
| 45° | 2.0 bar | 1.2m | 3.8m |
| 45° | 2.8 bar | 2.1m | 4.7m |
| 60° | 2.0 bar | 2.0m | 2.9m |
| 60° | 2.8 bar | 3.2m | 3.8m |
Control System and Application Versatility
ADVANCED MOTION CONTROL FUNCTIONS:
Advanced Motion Control: It allows the arch trajectories very much programmable dynamically throughout the entire show.
Controlled Velocity Motion: It, in turn, also allows for smooth starts, stops, and transitions.
Preset memory positions: The motion control can recall three memory positions very rapidly.
Integrated Lighting:
High-end RGBW LED (CRI >90) that renders colors very accurately,
Extremely smooth color fades enabled by 16-bit dimming control.
System Integration:
Full compatibility with Art-Net/sACN protocols for large network integration.
Remote diagnostics and addressing enabled by RDM device management.
Does the JUMP Nozzle Support Highly Interactive Features for Handling Traffic?
Yes. The JUMP Laminar Fountain Nozzle is extremely suitable for high-traffic areas because of the low-voltage operation and specialized output. It is the best choice for Interactive water features, architectural fountain displays, and indoor atrium displays, as it strikes out a clean, crystal clear bubble-free water arc, adding to its much-debated aesthetic quality and impact.
Installation Requirements Summary:
Hydraulic Requirements: Minimum water depth: ≥600mm; Filtration: 50 micron (critical).
Electrical Requirements: Daisy-chain capacity: 32 units; Surge protection required.
Compliance & Durability: Certified IP68 and 2000hr salt spray tested, confirming its long-term resilience in harsh or chemically treated water environments.
Next Steps: Specifying Your JUMP Laminar Fountain Nozzle System
To ensure precise hydraulic and electrical integration for your next project, consult our engineering team regarding the Aqua JUMP‘s flow requirements and the optional cutting unit deployment.

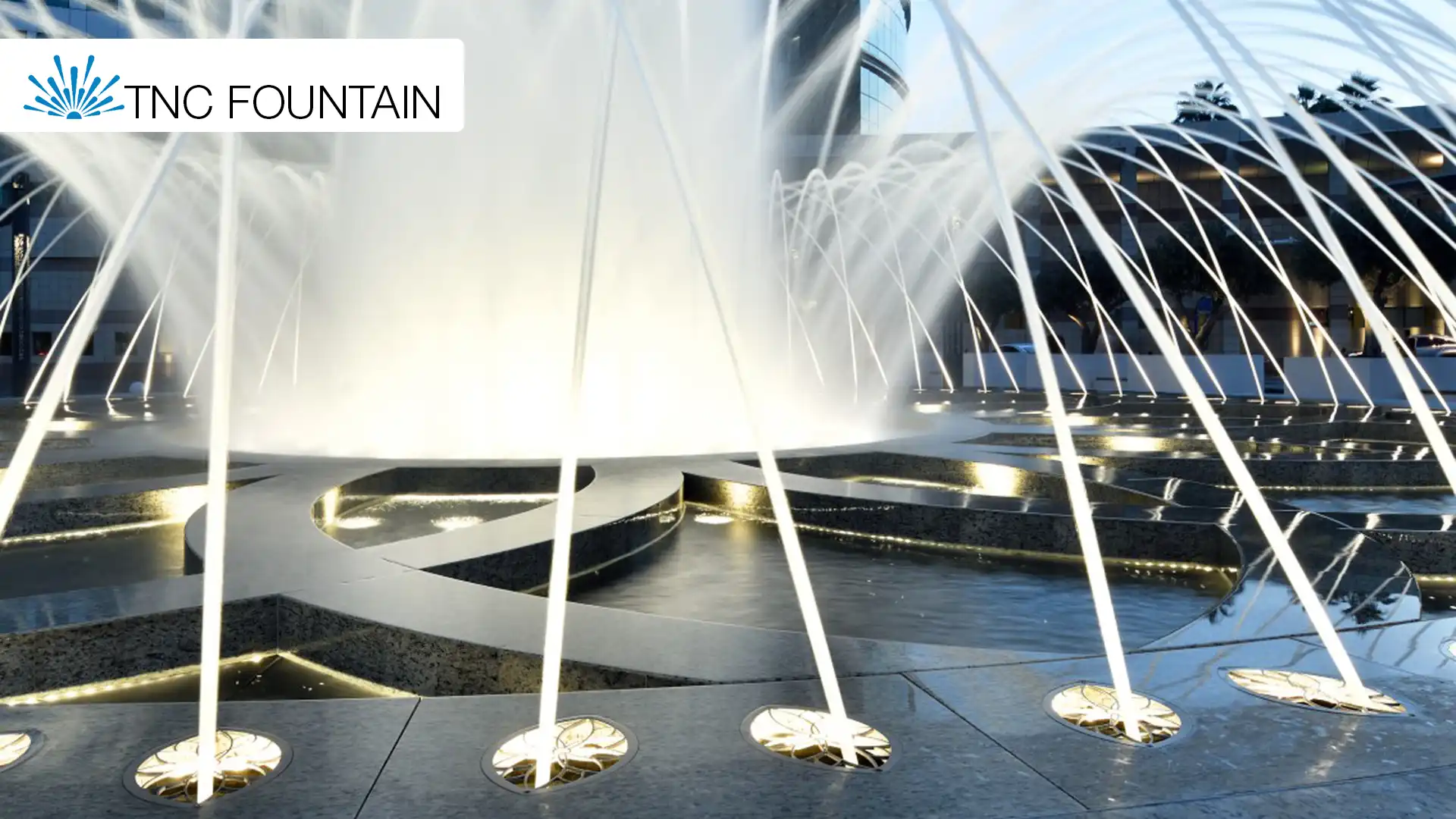

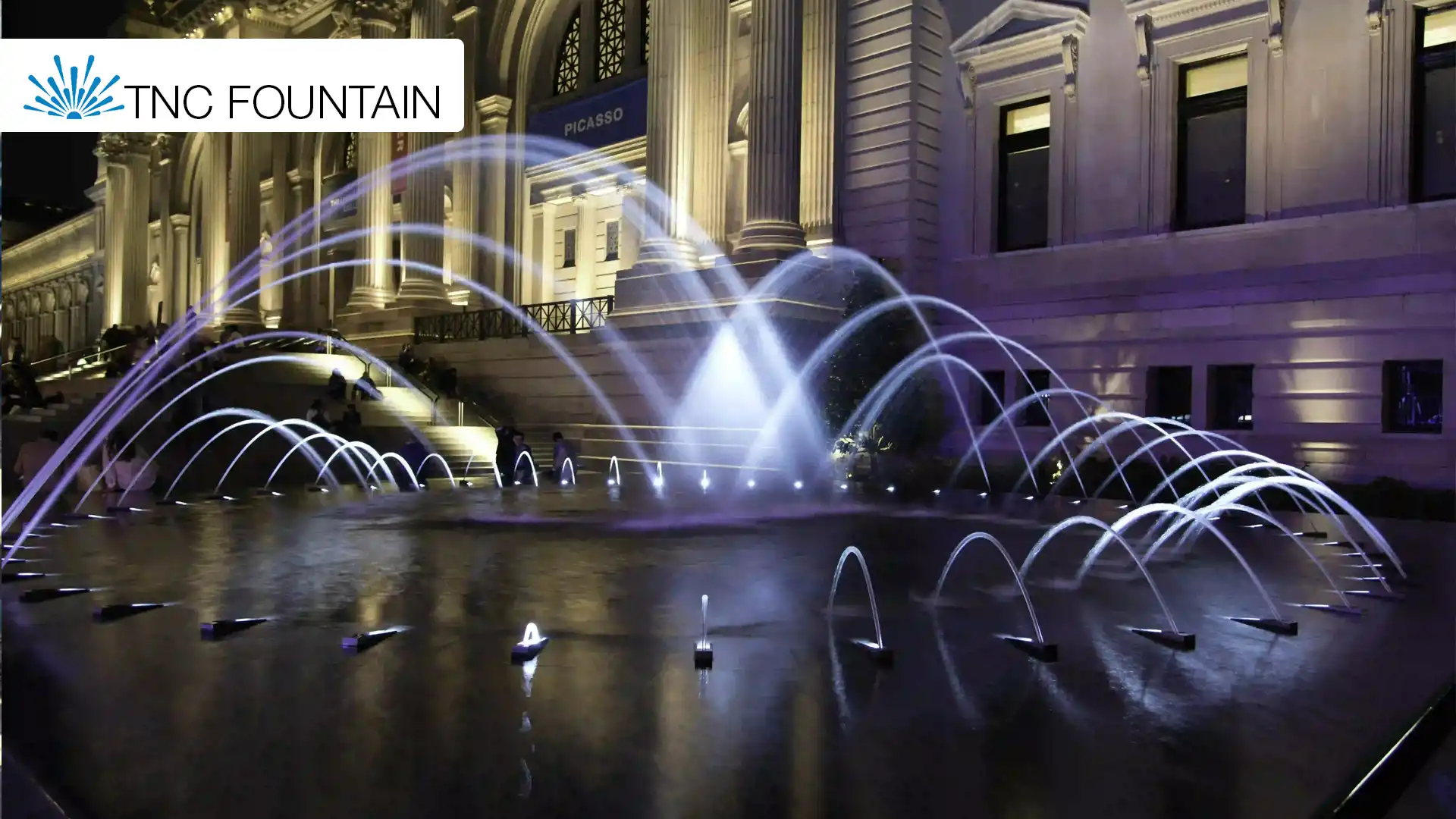

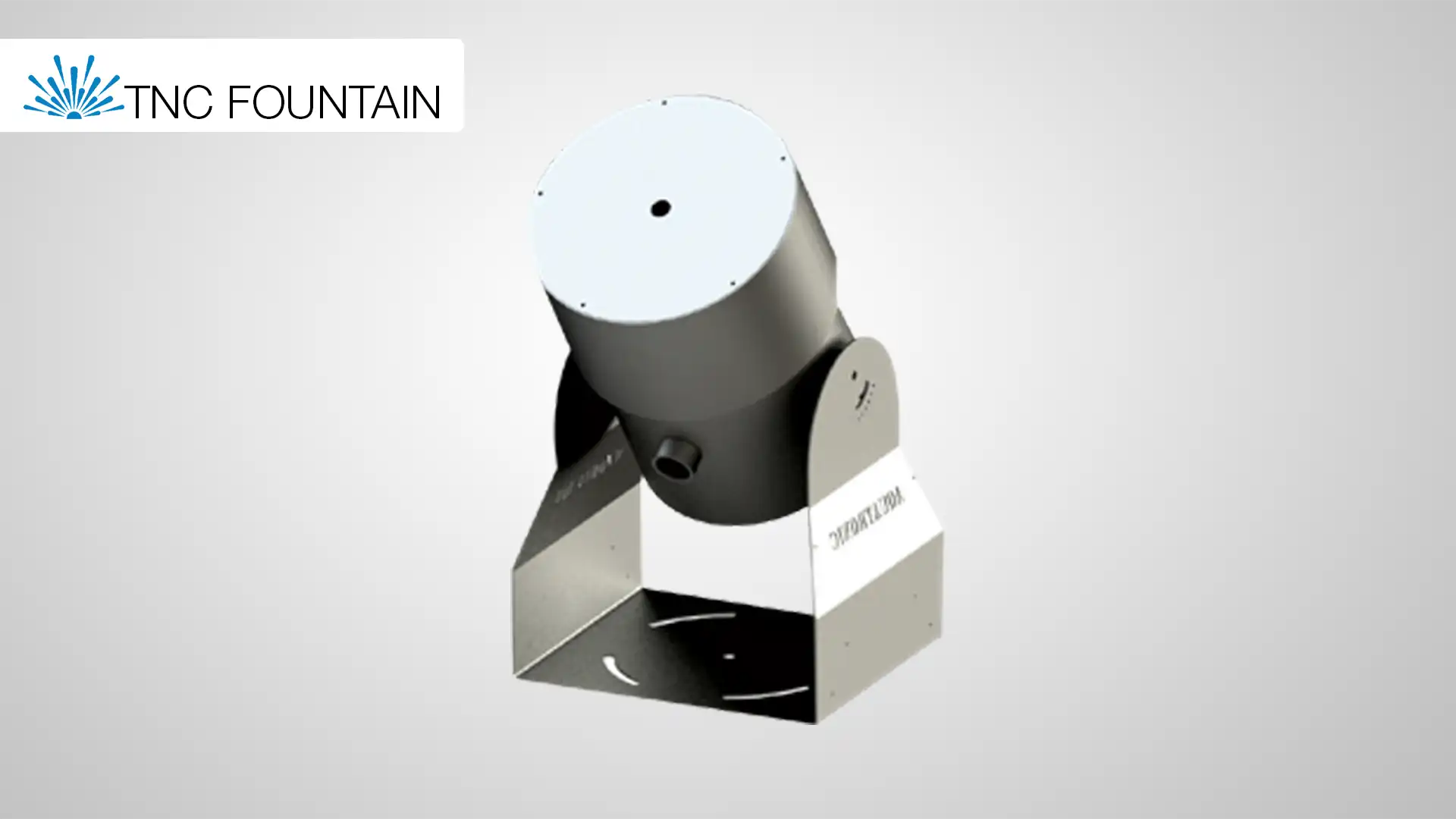

Aqua JUMP GIANT Laminar Fountain Nozzle
The Laminar Fountain Nozzle (specifically the Aqua JUMP-GIANT system) is designed to produce spectacular and huge water arches, so it is made to be the best choice for great installations when such a dramatic, crystal-clear water effect is required (like a Musical Dancing Fountain). This heavy-duty Fountain Nozzle performs well both in wide open spaces and highly impressive indoor environments, especially places with great elevations or highly complex architectural elements. The angle at which the water outlet is adjustable is vital as it allows for accurate control of the height and parabolic form of the water arch.
It also features integrated high-output RGBW LEDs, which send brilliant, fully customizable beams of light, thus converting the water stream into an impressive optical experience. Finally, a fast-cutting unit, which could be added as an option, could be deployed as a remedy to convert an instantaneously continuous laminar stream into segments to create dazzling “jumping jets”.
Core Technical Specifications for the Industrial-Grade Fountain Nozzle
The JUMP-GIANT is the technical pinnacle in the field of water effects on massive scales. It is uniquely suited for the grandest of fountains needing massive impact and long, durable life, with reliability ensured.
Heavy-Duty Construction: Fabricated from Marine-Grade 316L Stainless Steel-an industrial grade which is the mainstay for demanding installations where corrosion resistance is paramount.
Control & Integration: Operates on 24VDC Powered & DMX-RDM Controlled electronics, offering professional-grade control integration up to 16-bit resolution.
Easier Installation: Features an IP68 Socket One Cable Connection, thus allowing for simple waterproof wiring, which is another major advantage for large-scale deployments.
Show Control: Full compatibility confirmed with the Syncronorm Depence Library Available, which then enables full professional show control.
Advanced Functionality: Has included an Advanced Slice/On-Off Function for precision control, with segmented water effects to facilitate sophisticated sequencing.
Water Arcs: Capable of producing High-Capacity Parabolic Water Arches with a diameter of Ø12mm or Ø16mm, enabling powerful, long-range water trajectories.
| Category | Specification | Technical Detail |
| Model & Construction | Model Number & Material | AJG-1081 / Marine-Grade 316L Stainless Steel |
| Physical | Dimensions (L×W×H) & Weight | 350 × 330 × 450 mm / 25 kg (dry) |
| Electrical Input | Power Supply & Consumption | 24VDC ±5% / 40W nominal |
| Hydraulic Output | Nozzle Output & Max Pressure | 16mm (standard) / 0.5 bar (optimized performance) |
| Control System | Protocol & Resolution | DMX512A/RDM / 16-bit resolution |
Reach out to the 12m Arc: Laminar Fountain Nozzle Performance
Under predefined hydraulic and mechanical characteristics, the non-aerodynamically smooth-flying jet survives high-cast distances while still letting the laminar flow be as “glass-like” as the old style:
Throw distance: Ability to throw up to 12 meters (highly affected by outlet angle).
Maximum Height of Arc achieved: Projects vertically 4.5 m when performance pressure is optimized.
Flow rate: A very sturdy 18-22 LPM flow rate at the optimal working pressure of 0.5 bar.
Mechanical:
Features Precision-machined nozzle components that guarantee non-turbulent flow.
Contains Reinforced mounting points to ensure structural integrity in high-force environments.
Corrosion-resistant fasteners throughout.
Advanced Features: Control and Integration Capabilities
Advanced in control for JUMP-Giant in the highest level of public and entertainment scenes:
Programmable Trajectories: The system allows users to Create complex water arc patterns through DMX sequencing.
Velocity Control: Water features Adjustable movement speeds so that arcs could be transitioned smoothly.
Position Memory: 5 Preset Configurations are part of the package and these could be accessed quickly through the control protocol.
Real-Time Diagnostics: Built-in performance diagnostics that ensure reliable operations and faster troubleshootings.
The Laminar Fountain Nozzle is integrated well with:
Compatible with Syncronorm Depence show control software.
Enhanced network scalability due to support for Art-Net/sACN protocol.
Fully enabled for RDM device management.
There is an optional wireless control module available for ease of setup in far-off locations.
Installation and Durability: Major Requirements for the JUMP GIANT
The industrial-strength specification of this Fountain Nozzle must be bound with strict hydraulic and electrical values to ensure the application of architectural centerpieces, theme park features, and municipal water attractions:
Hydraulic Parameters:
Minimum: 20 LPM
Recommended filter: 50 micron (mandatory for laminar flow quality)
Minimum water depth requirement: ≥800mm
Maximum operating pressure: 0.5 bar
Durability and Compliance:
Tested with 5000 hours salt spray and Vibration with EN 60068-2-6.
Temperature Operating Range: -20°C to +60°C, allowing it to function in extreme climates.
The Aqua JUMP-GIANT is because of its robust character and high-fidelity output the gold standard in the field of large Laminar Fountain Nozzle applications. Next Steps: Specifying Your Laminar Fountain Nozzle Project For detailed technical integration and custom project consultation, please consult our engineering team regarding the JUMP-GIANT’s hydraulic and electrical requirements.

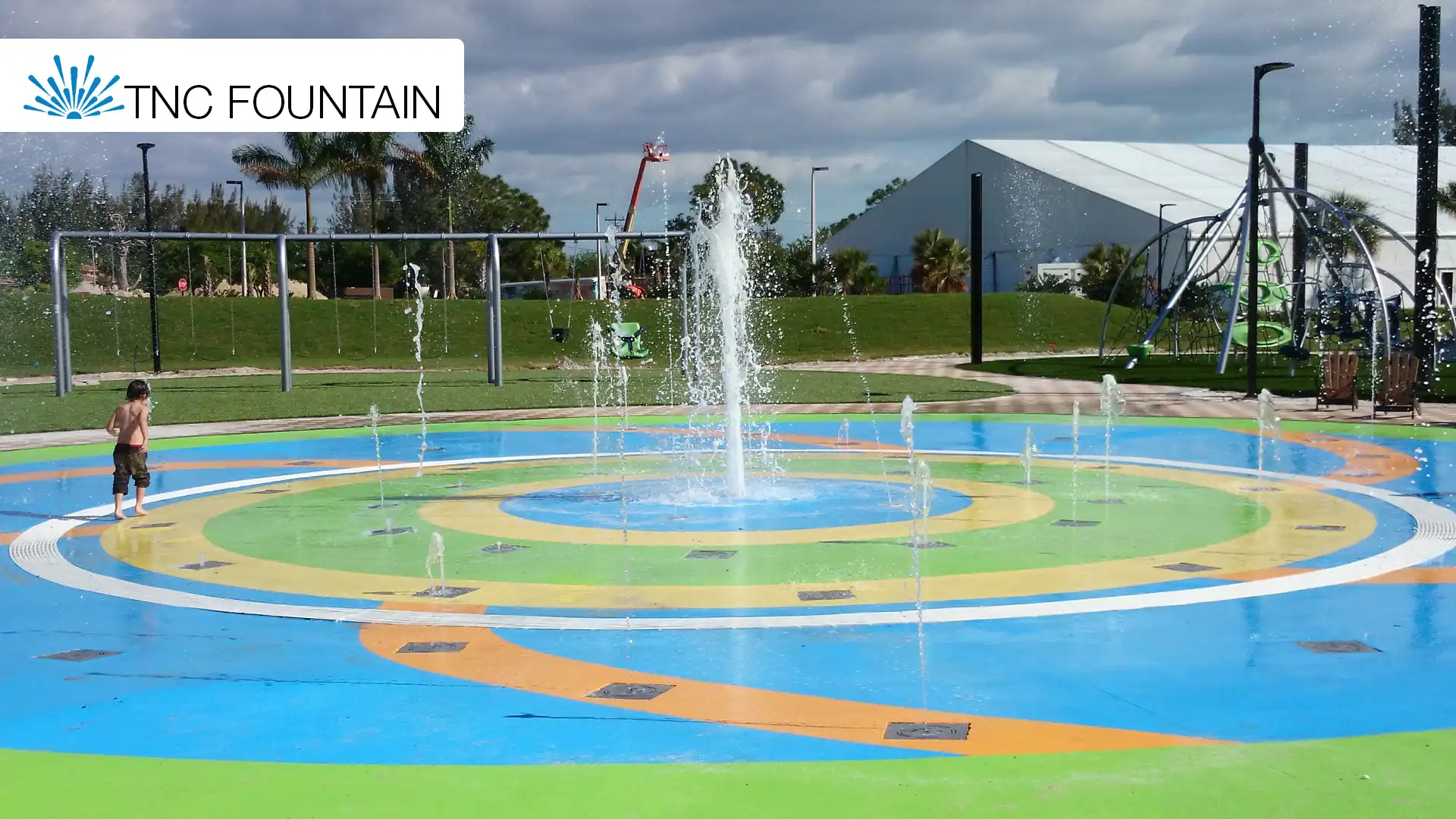

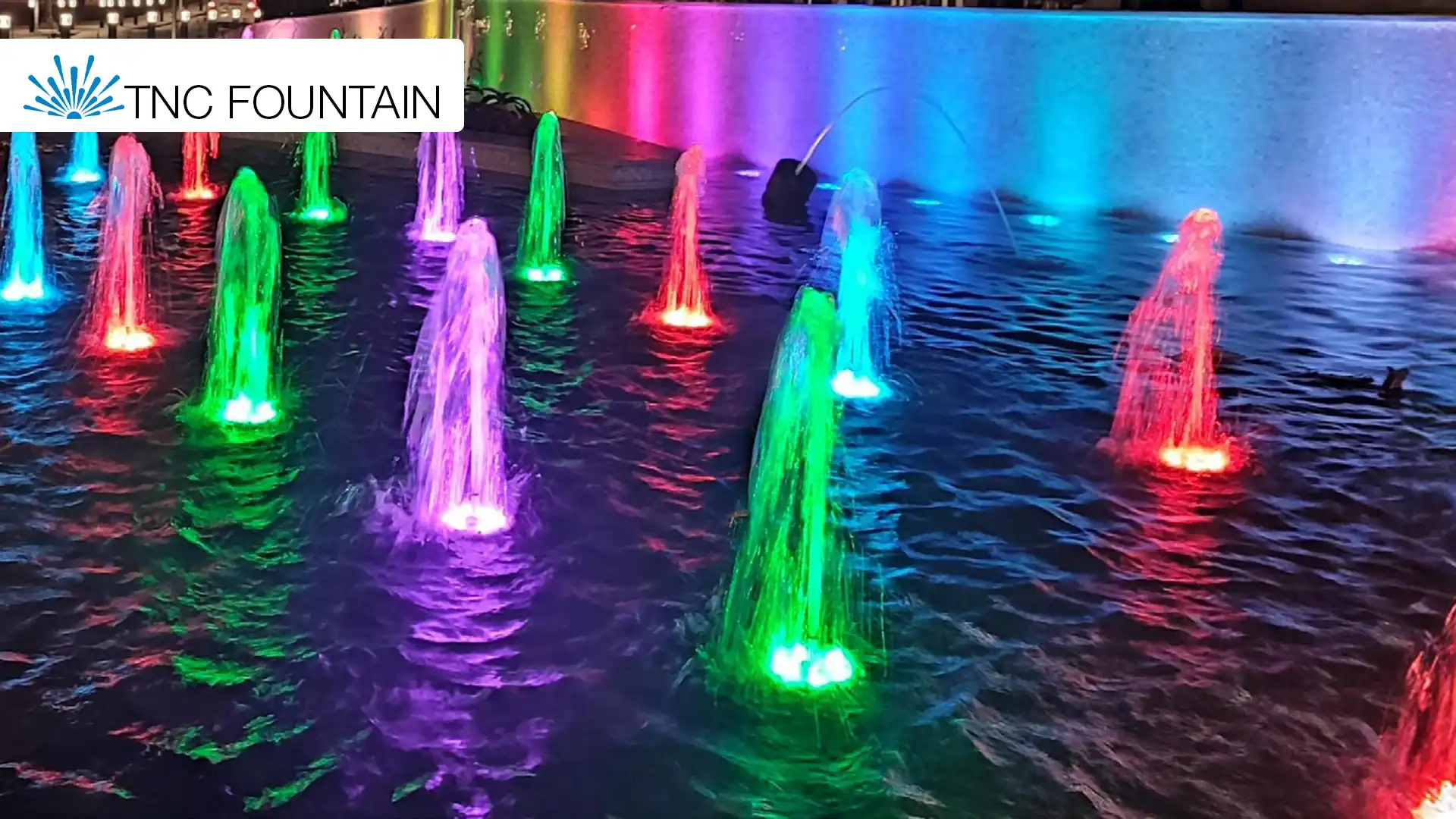

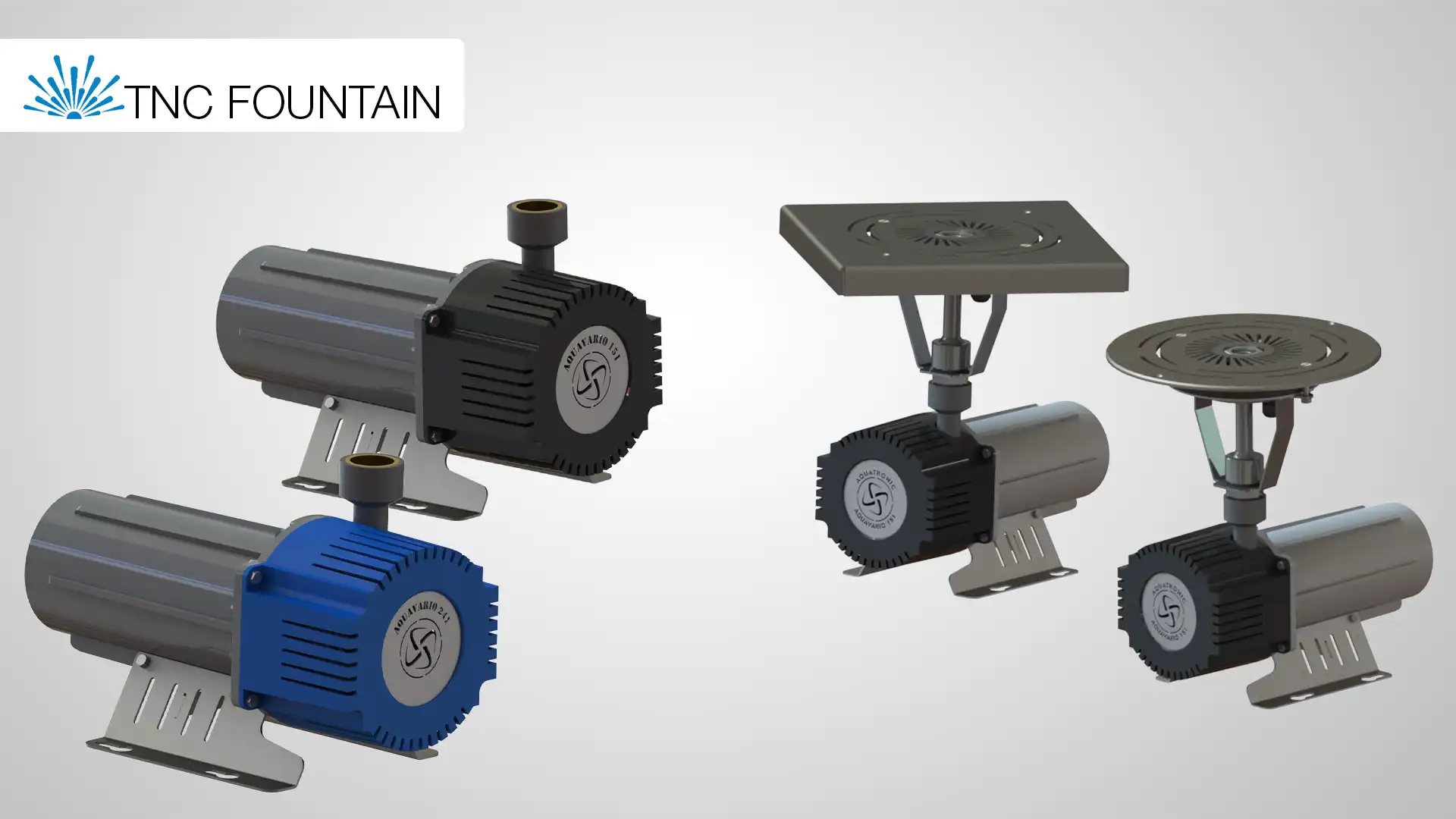

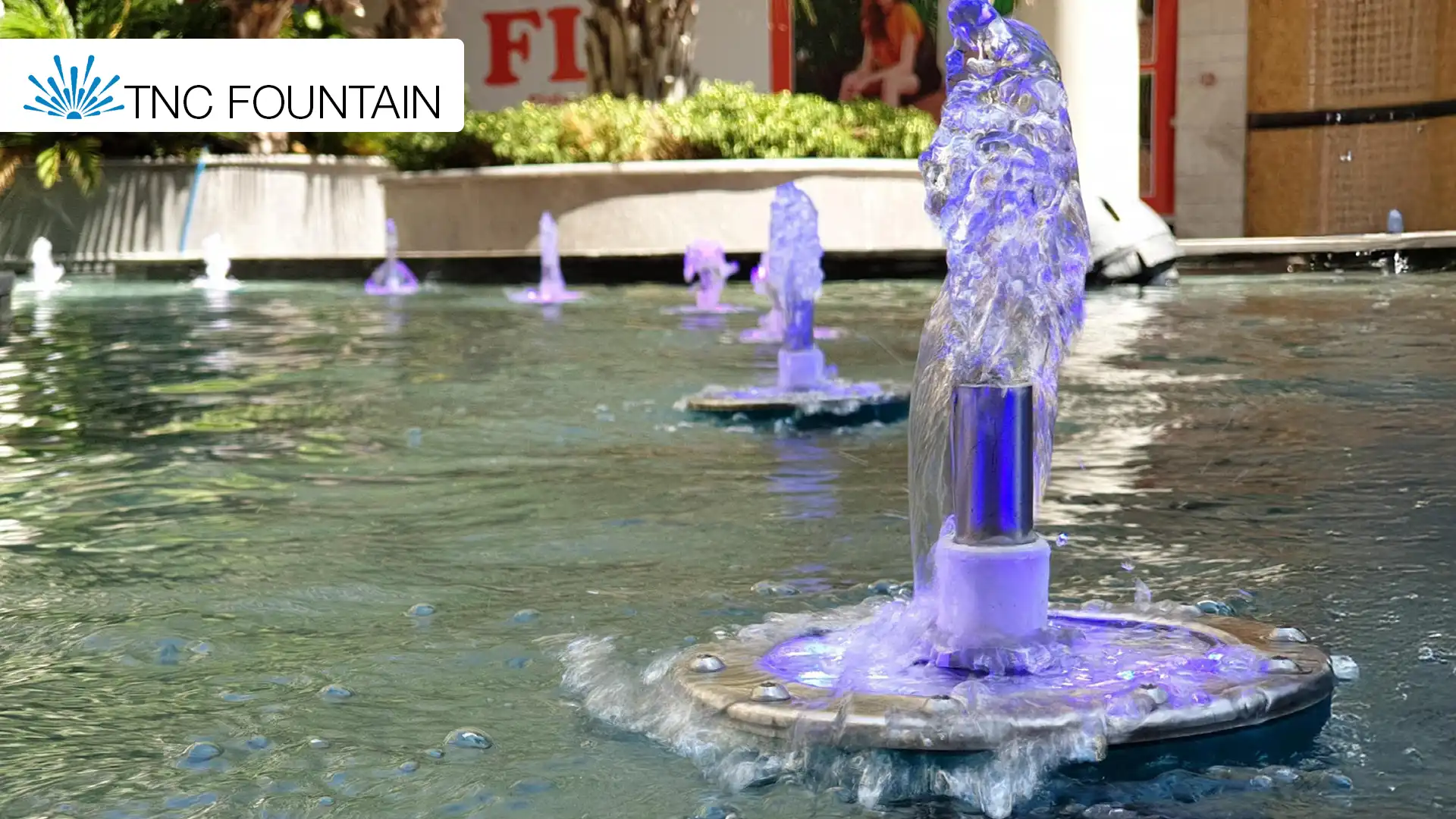

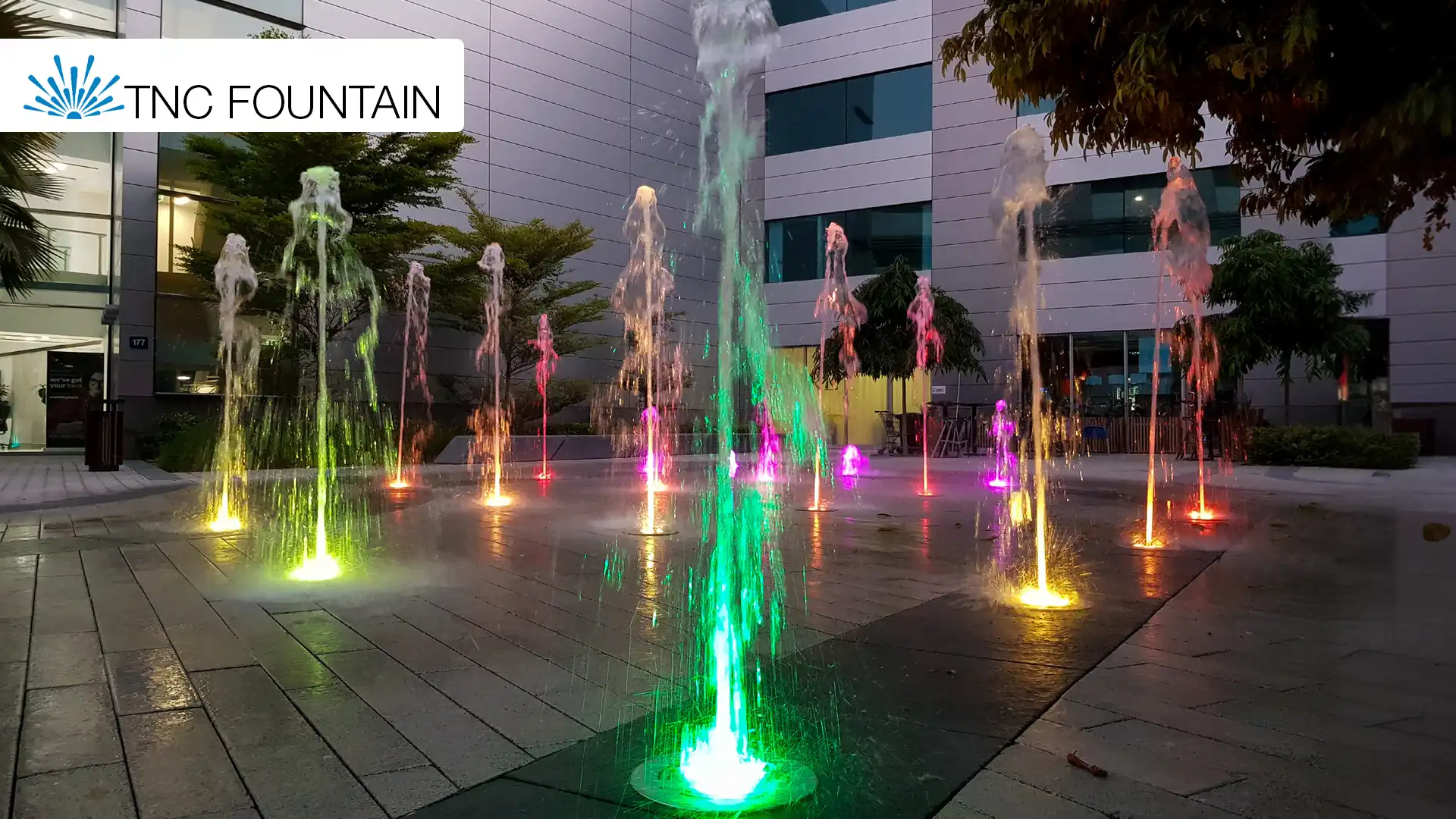

VARIO Musical Fountain Nozzle
The VARIO Musical Fountain Nozzle system is an adaptable, full solution that is capable of scaling with ease from intimate garden features to larger, dynamic TNC displays. Thus, the versatility of VARIO allows for its harmonious integration with nearly every setting of a project. The combined features of a powerful, 24VDC pump, vibrant 36W RGB lighting, multiple interchangeable fountain nozzles, with full DMX control integration all crammed into a compact housing.
Whether the task is creating the finest static water patterns or executing more flamboyant, dynamic show effects expected of a high-end Musical Fountain, VARIO delivers uncompromised performance level worthy of any size or application. This is part of the TNC series focusing on flexible control of variable water effects.
Essential Technical Configuration and Specifications
VARIO 241 is a professional modular system customized mainly for versatile applications in water display. Its core technical specifications ensure that reliability is at all times complemented with flexibility for operations:
-
Modular Pump System: Comes in ratings from 120 watts to 270 watts, to ensure that whatever stream height and flow could be required is perfectly matched.
-
Hybrid Construction: An engineered thermoplastic body is encased with housing and legs, combining adequate costing with good strength.
-
Control & Power: Dual voltage operation is supported (24VDC or 36VDC), with the control protocol being a strong DMX-RDM for reliable control communications and bi-directional feedback.
-
Connection Simplicity: Utilizes a single IP68 Waterproof Connection cable design that simplifies installation works while ensuring long-term watertightness.
-
Show Compatibility: 100% Syncronorm Depence Compatible to facilitate quick and professional integration into existing show programming platforms.
-
Smart Safeguards: Comes with integrated over-current safeguard features for the longer life and reliability of the pump system.
DryDECK: Interactive Fountains for Public Spaces
The DryDECK Fountain variants represent a critical application area for the VARIO system, specifically designed for public interaction. Dry DECKs are ground nozzles engineered to be installed flush with the ground surface, effectively maintaining a near-zero height and a zero water level, which gives rise to the term “dry pool.” These systems are primarily intended for interactive entertainment, enabling users, often children, to walk freely between the nozzles, engage with the water jets, get wet, and safely enjoy the display.
While crafted with paramount safety in mind, the enjoyment remains uncompromised. Numerous types of Dry DECKs are available, each offering a unique interaction experience. Furthermore, a highly professional version is available for integration into large-scale light and water shows, featuring significantly higher water jets and integrated lighting to provide enhanced visual appeal within the overall Musical Fountain spectacle.
Performance Analysis: VARIO 241 Technical Overview
Architects and specifiers must analyze core performance parameters to ensure project success. The VARIO 241 (PN: 1051) provides the following data:
| Component Category | Technical Parameter | Specification Detail |
| Physical Housing | Dimensions & Weight | 328 × 167 × 143 mm (L×W×H) / 5 kg (dry) |
| Electrical Input | Operating Voltage & Current | 24 VDC ±5% / 10A @ 24VDC |
| Hydraulic Flow | Max System Pressure & Flow | 0.5 bar / 18–22 LPM (Litres Per Minute) |
| Control System | Protocol & Compatibility | DMX512/RDM / Syncronorm Depence compatible |
| Mechanical Output | Nozzle Connection | Standard 1″ NPT female (Brass Output) |
Features Defining a Modular Musical Fountain System
VARIO’s greatest asset is the availability of integrated modular components designed for accommodation:
-
Interchangeable Nozzles: The system can accommodate various fountain nozzles (standard jet, laminar flow, fan nozzles) to allow the designer to create various water effects without having to worry about separate dedicated pumps.
-
Adjustable Mounting: There is an Adjustable Tilt Mechanism (±15°), giving very important flexibility to direct the water streams in complex Musical Fountain arrangements or to balance the water effect due to uneven basin floors.
-
Optional Illumination: The LIGHT-C RGBW module (36W power draw) is DMX controllable and can be recruited for better visual fidelity and color synchronization with music.
Where Does The VARIO Musical Fountain Nozzle Excel In Application?
The highly flexible design and integrated control of the AquaVARIO make it an exemplary option for the dynamic Musical Fountain elements amidst various challenging scenarios.
-
Architectural Water Features: It is ideal for building lobbies, public plazas and urban installations that require a clean, contained, programmable water effect.
-
Entertainment and Event Venues: Ideally suited for hotel water displays, theme park elements, and temporary event staging in need of easy setup and dynamic alteration.
-
Maintenance Specifications:
-
Service Interval: Requires servicing only every 500 operational hours.
-
Cleaning Requirement: Mandates quarterly inspections for optimum longevity.
-
Expected Life: Designed for a long service life of 10,000 hours.
-
Operating on a low voltage of 24VDC, paired with a robust IP68 rating and 2000-hour salt spray-tested construction, ensures a safe and durable operation, even when the Musical Fountain is set up in high-traffic or saltwater environments.
Next Steps: Specifying the AquaVARIO Musical Fountain Nozzle
The proper setup of this flexible system calls for a minimum water depth of 400mm, with water to be filtered to 50 microns. Please request the corresponding datasheet to receive full technical details about pressure/flow characteristics and accessory options.

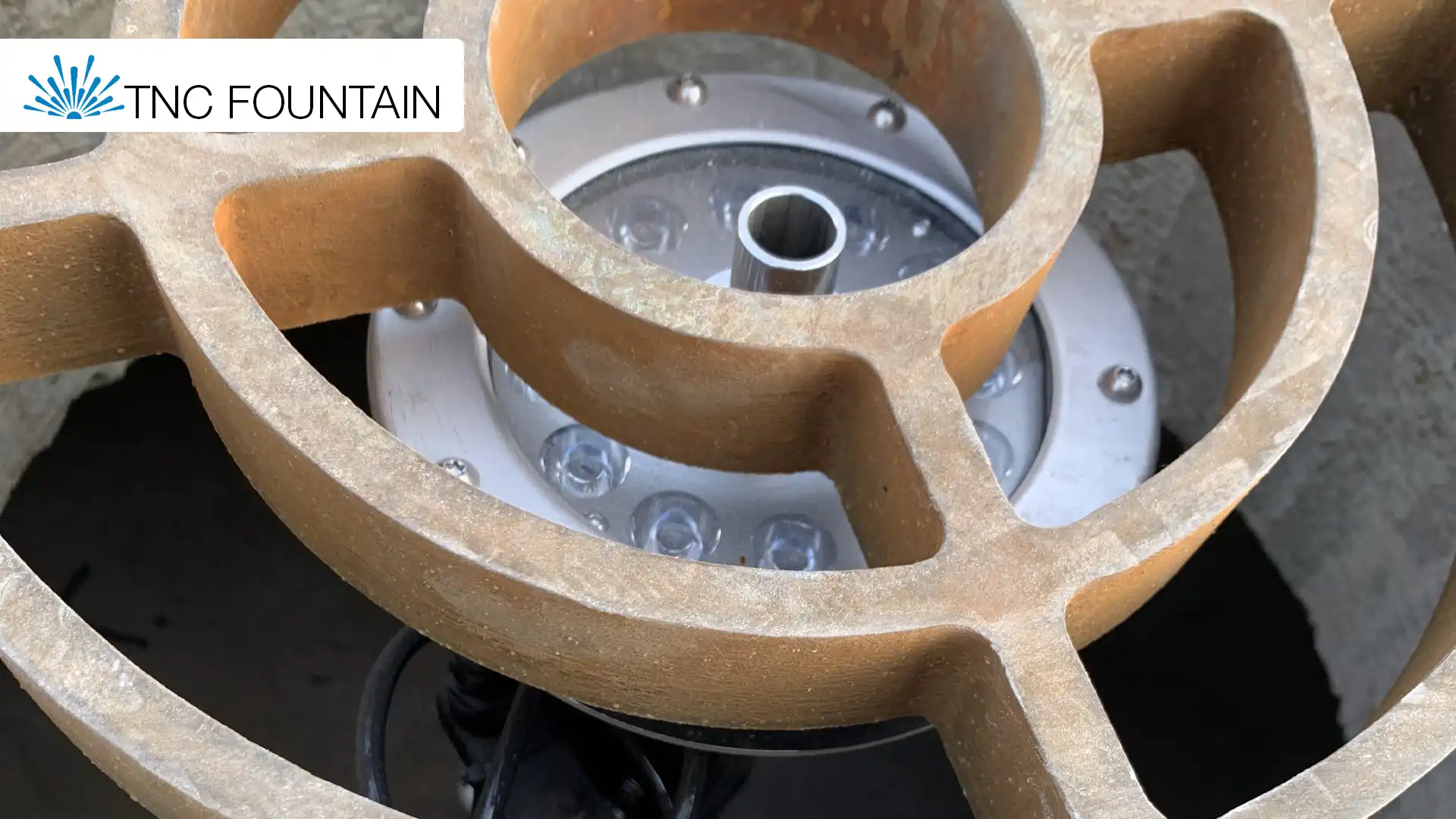

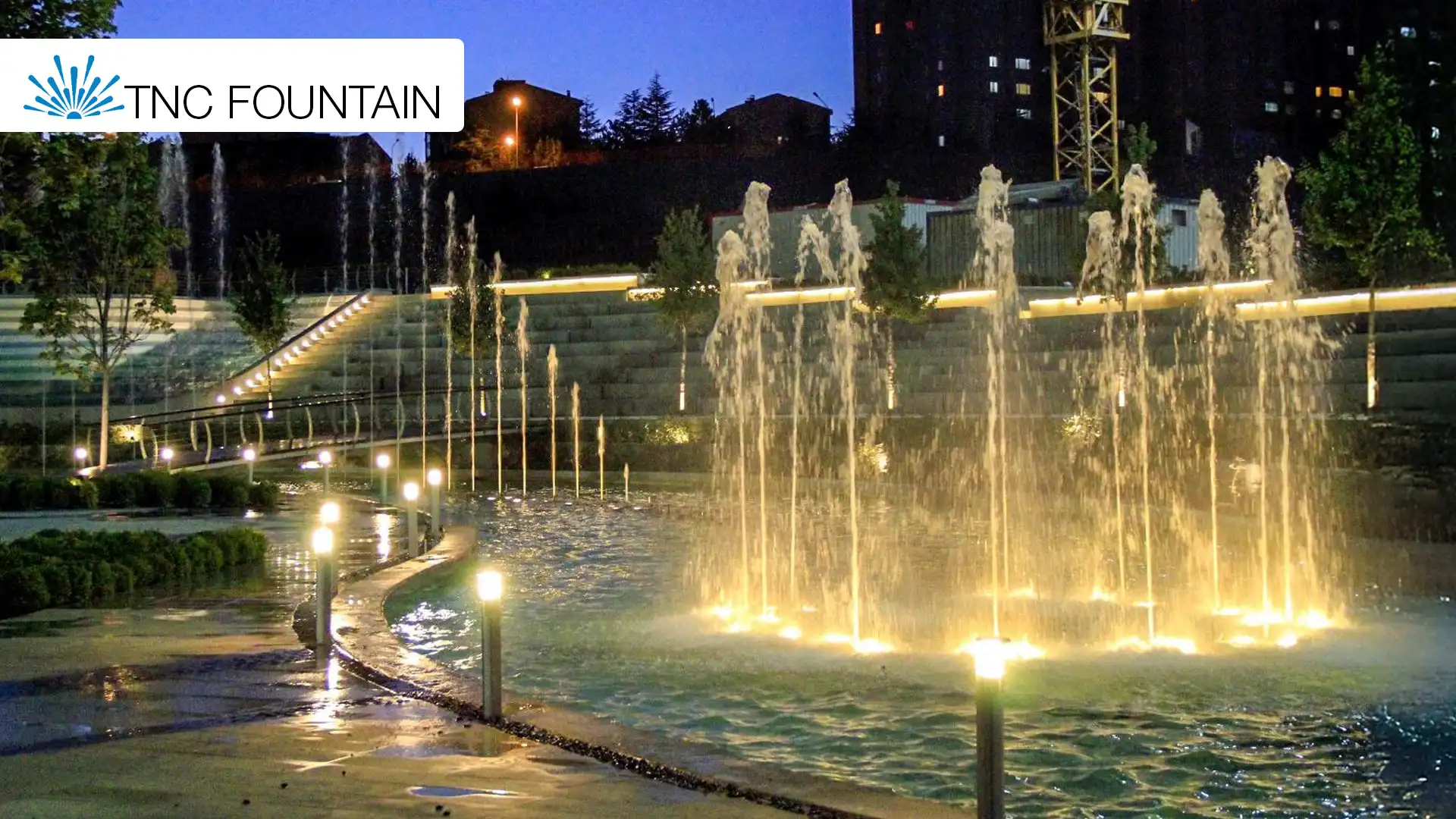

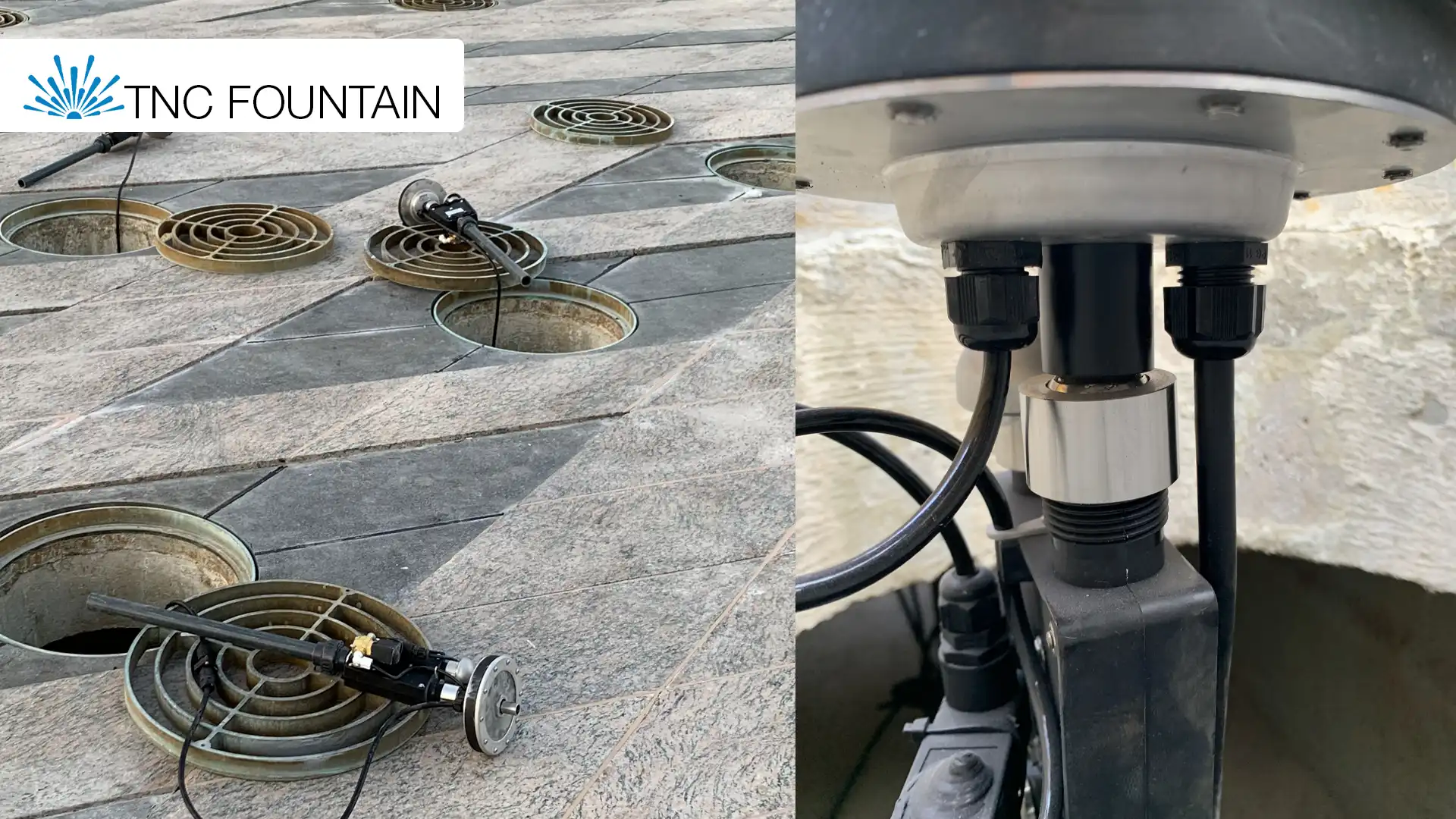

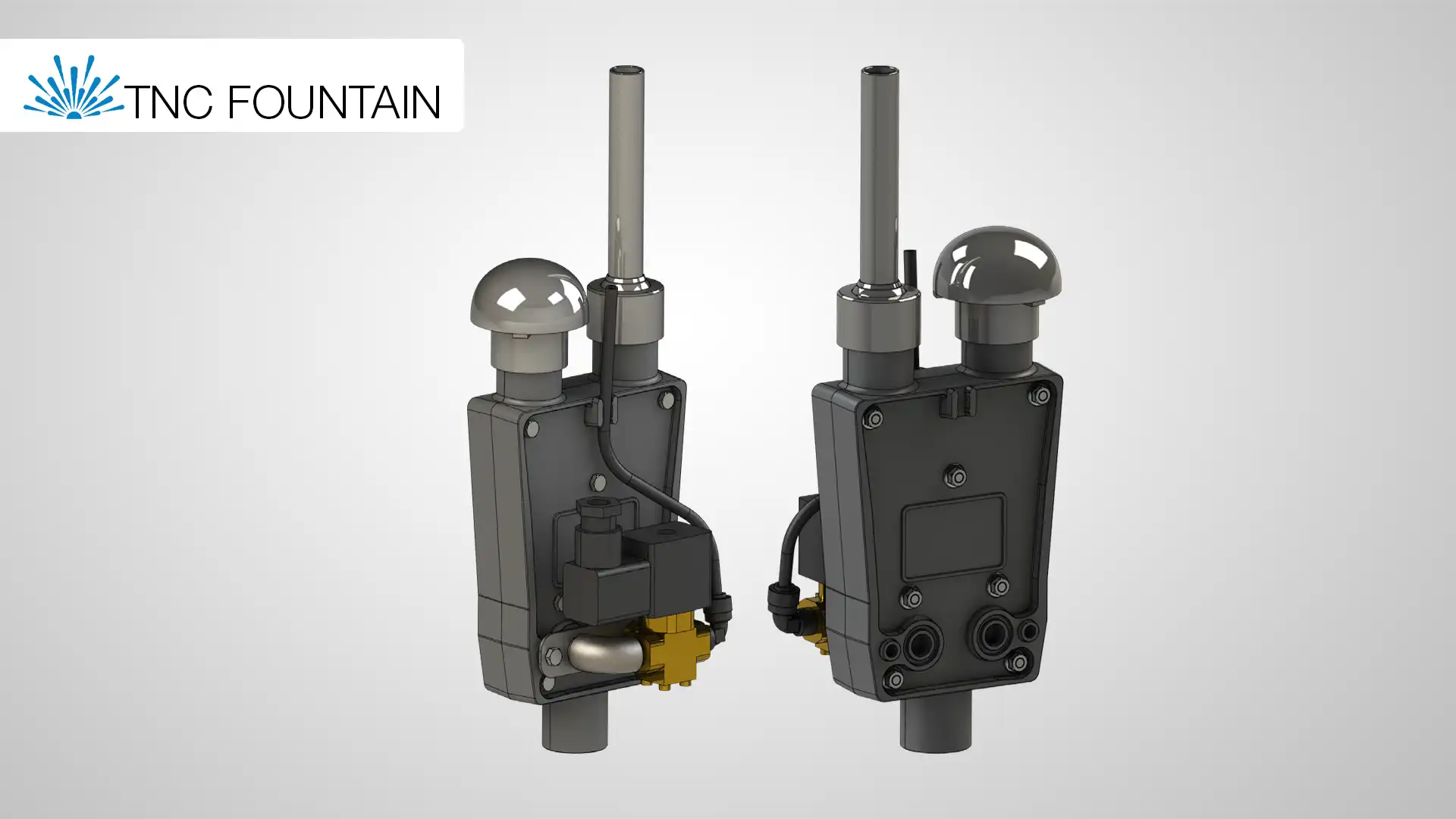

SWITCH Musical Fountain Nozzle
The SWITCH Musical Fountain Nozzle is a very fundamental change in conducting dynamic and Musical Fountain performances by providing ultra-fast water flow control. This system is specifically designed for coordinating with certain types of fountain heads and requires the installation of a companion 3/2-way bypass valve. This unusual assembly allows instantaneous switching of water streams (as low as 0.1 seconds) while also limiting the possibilities of damaging pressure loss and water hammer effects.
Thus, it is the first choice for creating sharp, percussive, and highly rhythmic water effects-one so much in need of orchestration with music or complex light shows.
Core Technological Requirements and Performance
The SWITCH unit is built upon stringent technical principles to ensure reliable, high-tempo operation within a demanding Musical and Dry Deck Fountain environment.
Robust Construction: Features a 316 Stainless Steel body (Dimensions: 160 × 200 × 350 mm) imposed for heavy-duty robustness and excellent corrosion resistance for continuous submerging.
Precision Control: The electronics make use of 24VDC Powered & DMX-RDM Controlled, thus offering a high resolution in electronic management and addressing within a show network.
Connectivity: An IP68 Socket One Cable Connection (Integrated Power + DMX combo cable) for a simple, waterproof installation wiring.
Refill Speed: The nozzle has advanced AIR-Vent System, remarkably speeding up the refill speed and reducing refill time by up to 70% to allow maximum rapid cycling capability.
Software Integration: Syncronorm Depence Library Available, making it ready for professional visualization and complex show programming.
Performance Metrics: The Speed of the SWITCH Musical Fountain Nozzle
The SWITCH Musical Fountain Nozzle is known for speed and strong hydraulic performance:
| Performance Parameter | Technical Data |
| Model & Material | SWITCH (PN: 10×1 series) / 316 Stainless Steel |
| Response Time | 0.1s (minimum) |
| Maximum Operating Pressure | 6 bar |
| Water Hammer Prevention | Integrated dampening system within the unit |
| Protection Rating | IP68 (Fully Submersible, IEC 60529) |
| Flow Control Function | Instantaneous On/Off actuation with zero pressure drop across the unit during active flow |
Nozzle Performance and High-Pressure Capabilities
SWITCH supports special effects like high-pressure operation for tall streams and volumetric displays:
Air Burst Effect: Capable of combining pressurized air with water flow for dramatic, high-impact volumetric displays that add another dimension to the choreography.
High-Height Support: The system, depending on the model (AIR I/II or AIR III), can effectively support water streams reaching up to 30m to 40m in height, meeting the needs of large-scale Musical Fountain projects.
| Nozzle Type (Standard vs. High-Flow) | Max Height (m) | Flow (L/min) @ 2 Bar |
| Standard 14mm Nozzle | 4.00 | 82 L/min @ 1.8 bar |
| Optional 20mm High-Flow Nozzle | 4.00 | 204 L/min @ 0.84 bar |
Application and Configuration Scenarios
In instances of complex Musical Fountain choreography and architectural laydowns, the precise control afforded through the SWITCH Musical Fountain Nozzle is indispensable:
Musical Fountain Scenarios:
Used for precise water choreography that requires absolute temporal accuracy.
Enables beat-synchronized effects where water movements perfectly align with the music.
Essential for high-tempo water sequences where rapid pulsing or staccato effects are mandatory.
Architectural Feature Integration:
Creates razor-sharp water curtain effects with clean start/stop lines.
Provides instantaneous on/off displays for dramatic, minimalist water features.
Forms the core actuation for complex, highly responsive interactive water elements.
Does the SWITCH Musical Fountain Nozzle Require Complex Maintenance?

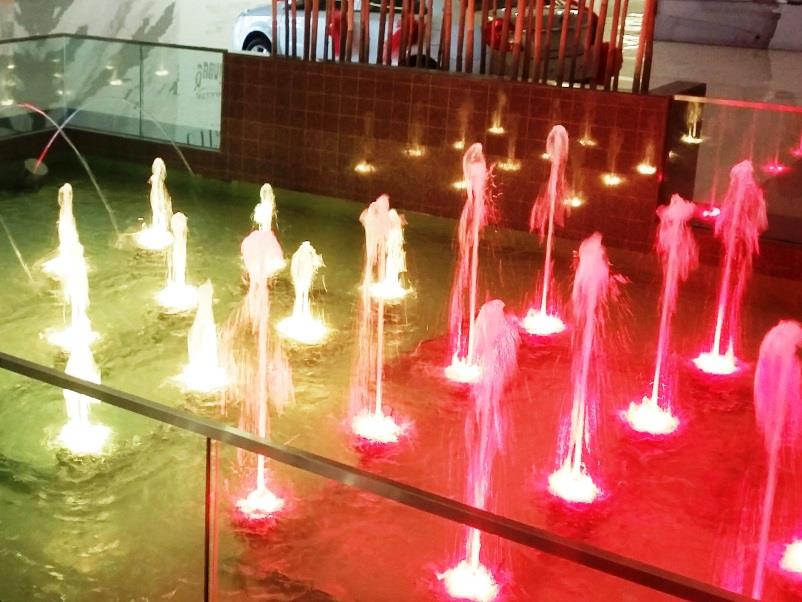

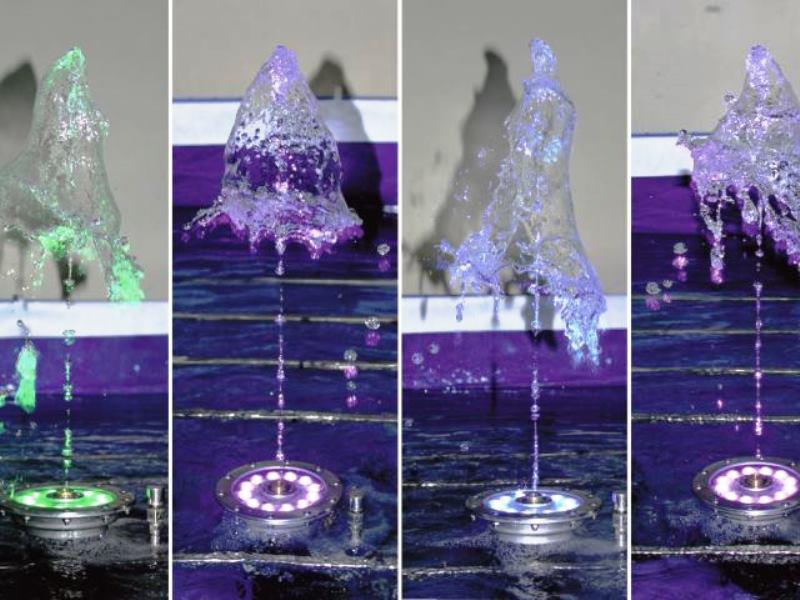

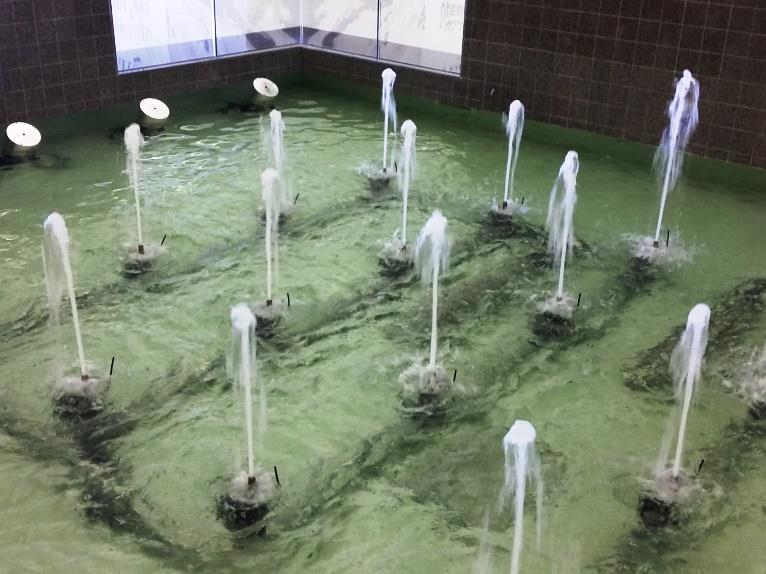

Despite its sophisticated function, the AquaSWITCH is built for operational longevity and simple maintenance:
Service Interval: Built for endurance, requiring servicing every 1000 operational hours.
Diaphragm Life: The internal diaphragm-a critical component-is endurance tested for 500,000 cycles.
Lubrication: Requires only a minimal annual service with just 3 designated lubrication points.
With reliable and incredibly speedy action, the SWITCH Musical Fountain Nozzle takes away any possibility of time lapse that may endanger absolute synchrony of these visual spectacles with the auditory score, a non-negotiable condition for the acknowledgment of any very serious Musical Fountain.
Ready to Implement Ultra Fast Musical Fountain Dynamics?
For the best application and reliability in your project, always couple SWITCH with a suitable counterpart 3/2-way bypass valve. Seize the technical manual for advanced configurations and complete pressure/flow curve.

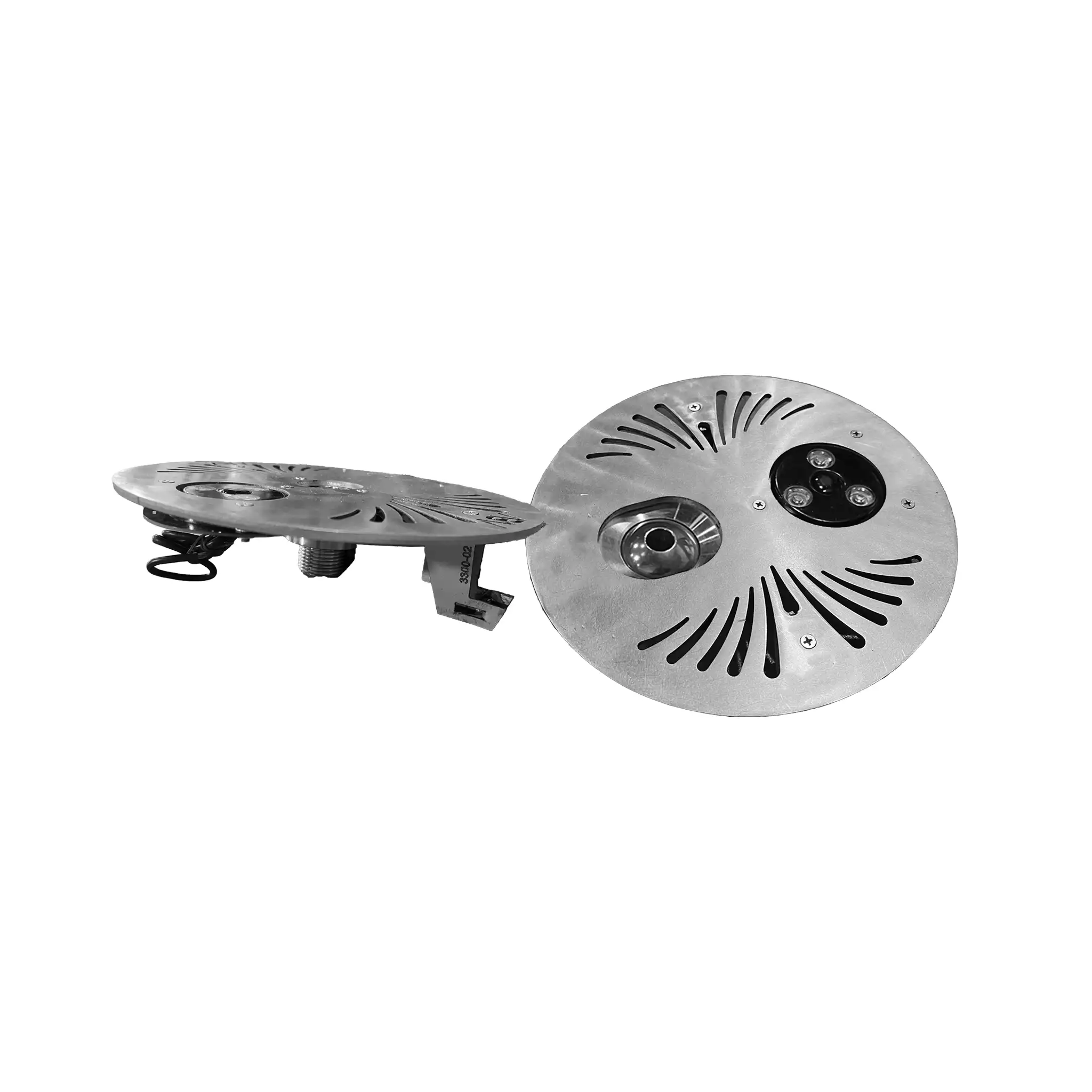

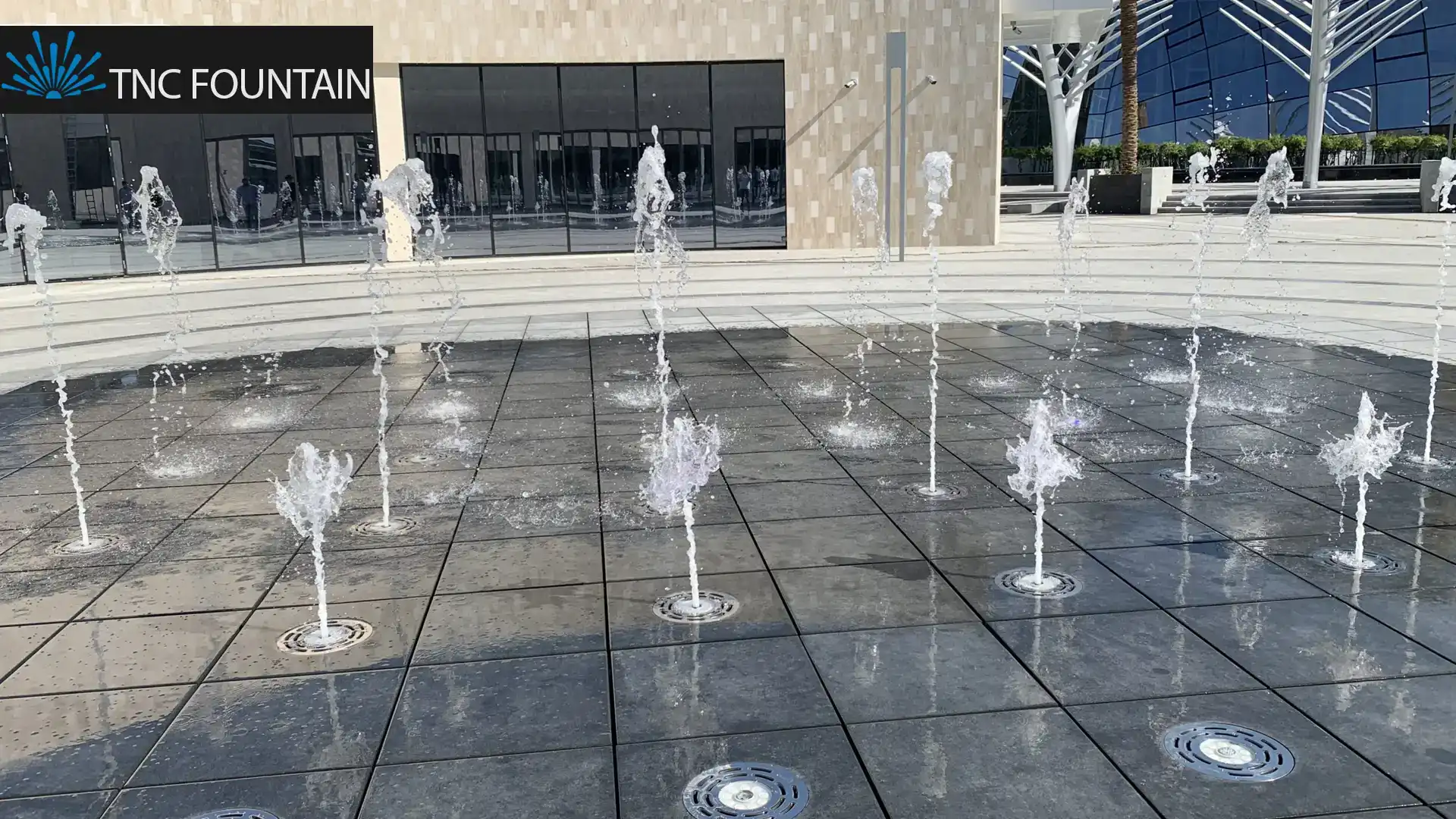

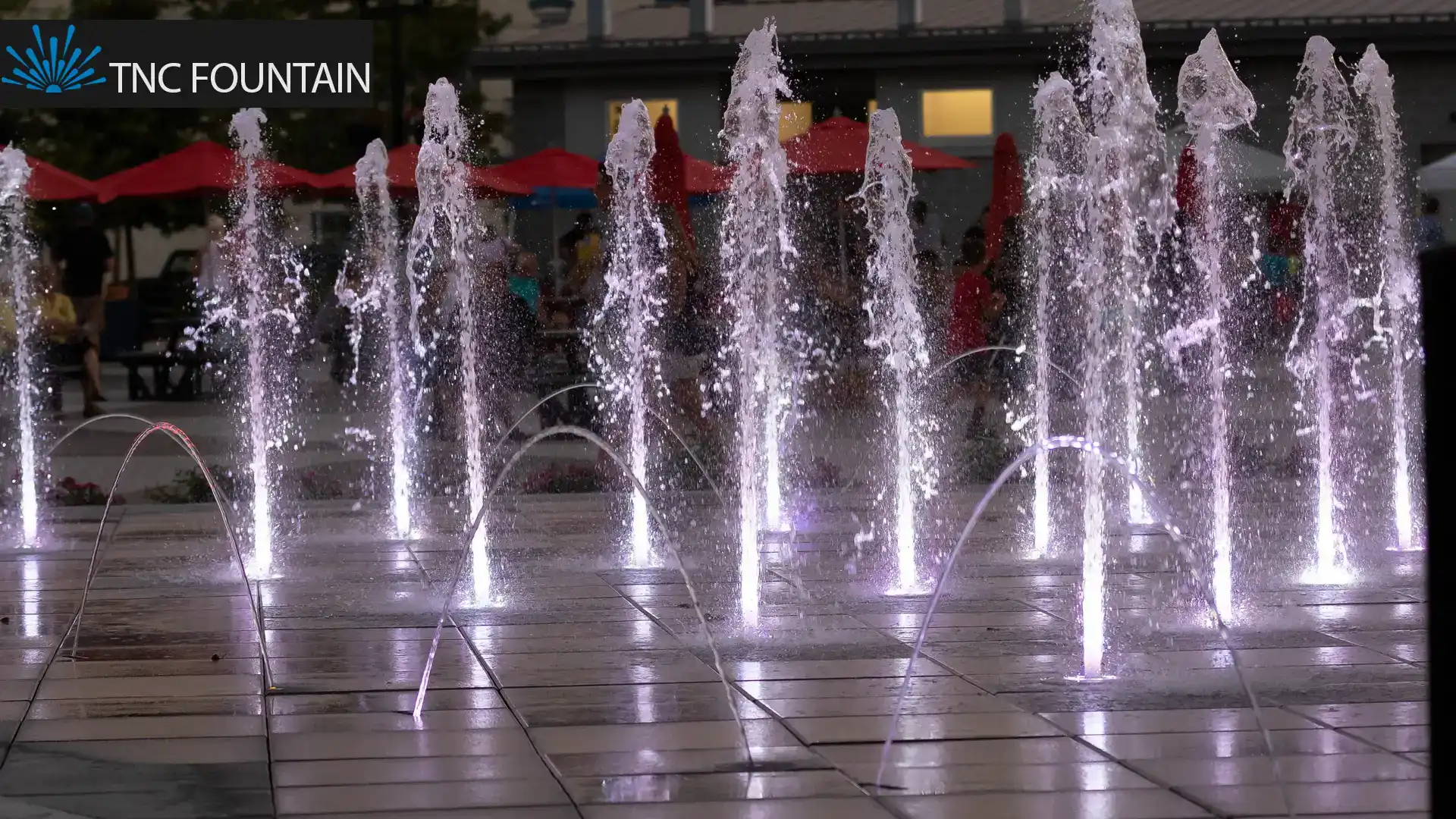

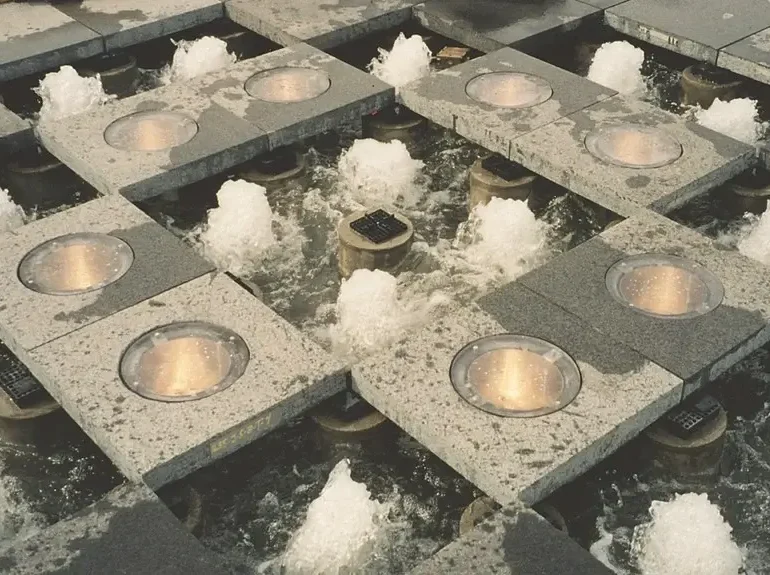

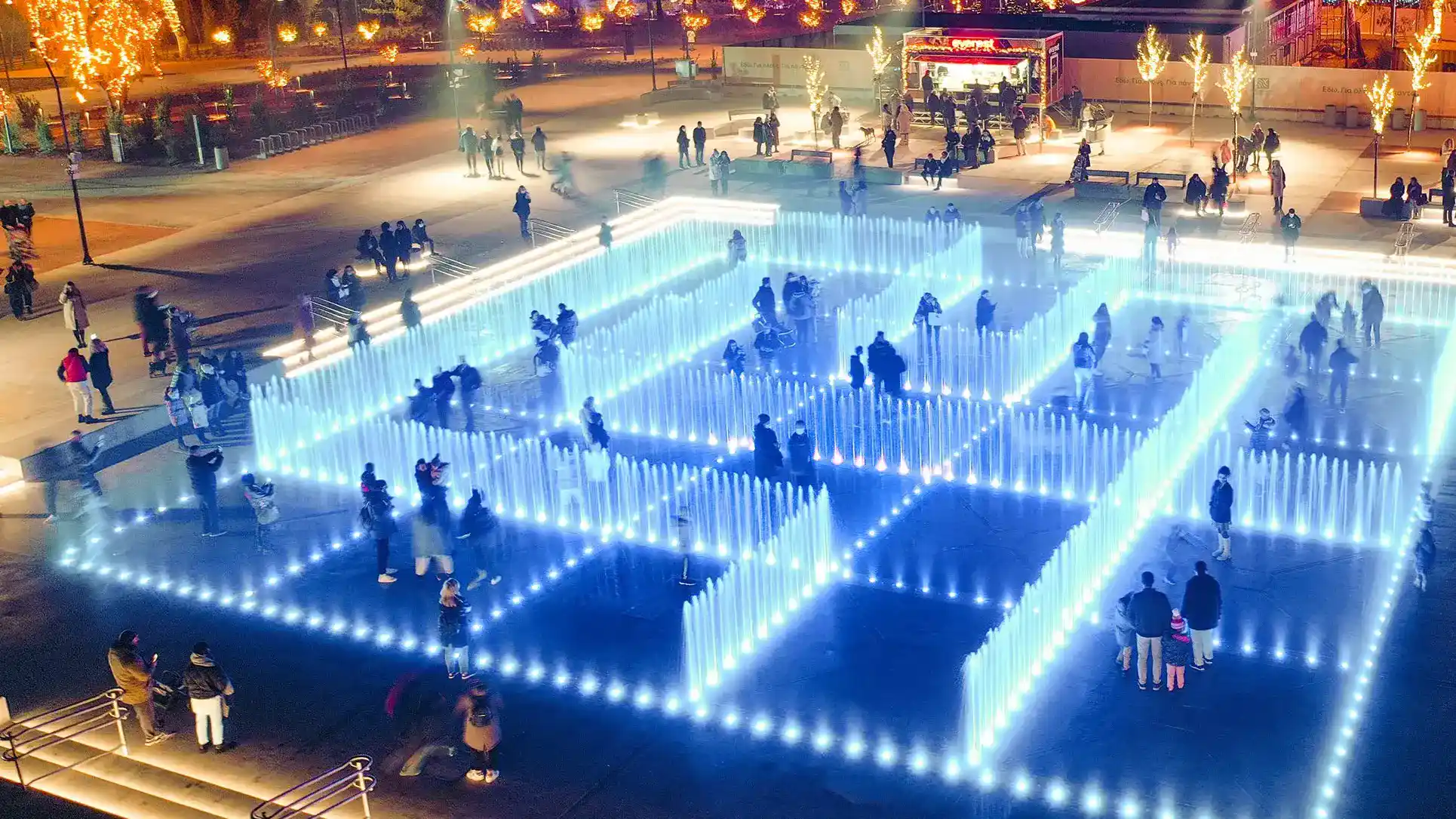

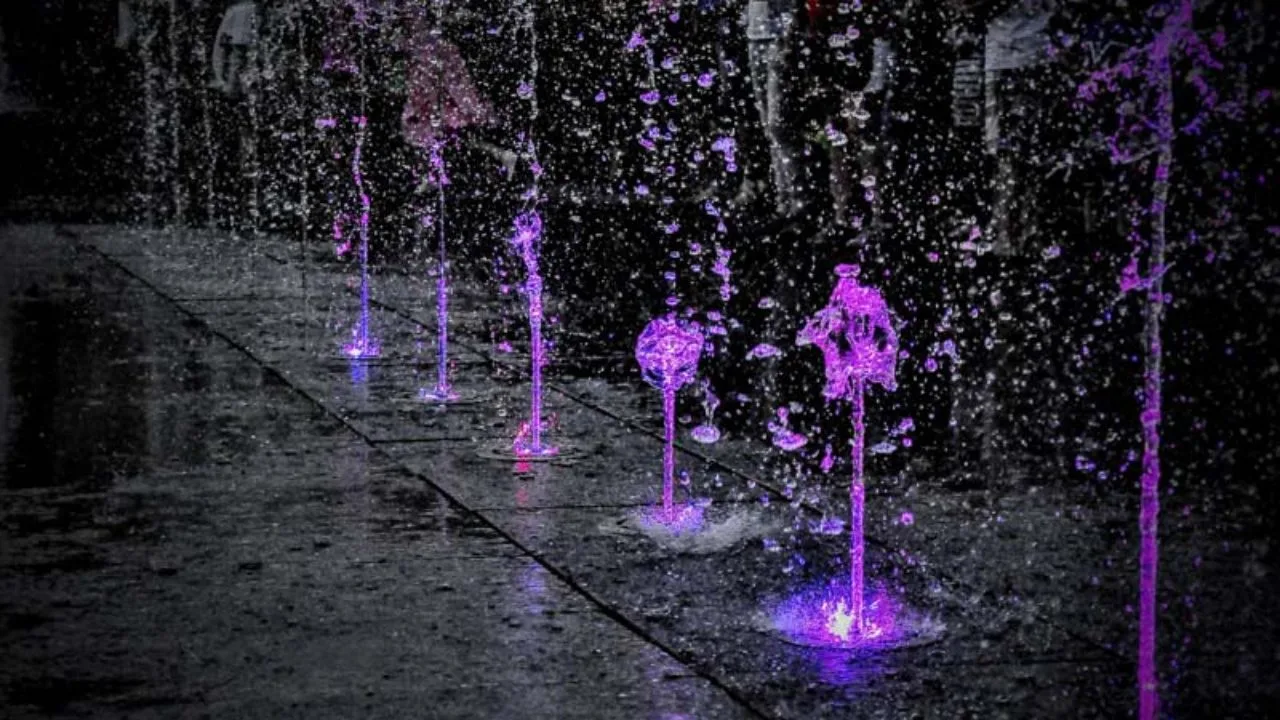

Dry Deck Fountain
The Dry deck Fountain represents an innovative urban water feature where water flows beneath a permeable surface, maintaining a completely dry upper deck. This cutting-edge design allows simultaneous pedestrian access and spectacular water displays, making it ideal for high-traffic public spaces.
Key Performance Features
1. Surface Technology
Walking Surface:
Anti-slip stainless steel grating (3-5mm openings)
Load capacity: 500kg/m² (ADA compliant)
Instant drainage: 1000L/m²/min flow rate
2. Hydraulic System
Water Circulation:
Subsurface collection basin (304 stainless steel)
5-stage filtration (50-100 micron)
Variable-speed pumps (0.5-3HP)
3. Special Effects
Synchronization Capabilities:
Musical fountain integration
RGBW LED lighting (IP68, 24V DC)
DMX512/RDM control protocold
The Engineering of Modern Public Realms: Integrating the Dry Deck Fountain System
The Dry deck Fountain system heralds a great evolution in aquatic architecture in that it transcends the traditional definition of water fountains to yield modern-day large water feature installations that are interactive and elaborate. For the enlightened engineering and architectural professional, it intrigues with an integrated approach toward a dynamic display of water artistry with essential public safety and spatial efficiency. This complex water display, organized around ‘zero-pool’ or dry-deck configurations, changes the context of the relationship between public space and water display. The very design precludes the presence of static water bodies, thus allowing thoroughfare areas to remain fully accessible and functional during the moments when the aquatic display exhibits silence. By incorporating geotechnical and hydraulic considerations, the Dry deck Fountain is configured to provide, in urban planning, the most perfect balance between aesthetic impact and structural performance, the fulcrum of contemporary urban design.
Implementation and Precision: The Dry Deck Fountain Installation Process
Successful deployment of a Dry Deck Fountain requires meticulous planning and execution to uphold the highest standards in electro-mechanical and civil engineering. This entails an elaborate coordination among various technical domains:
- Subsurface Infrastructure Preparation: Site preparation starts with precision leveling of the ground and reinforcing utility conduits. This is critical to the long-term stability and optimal functioning of the whole system.
- Plumbing and Drainage Integration: The installation necessitates precision-engineered underground reservoirs and high-efficiency pumps that attain adequate water recycling. A very important detail is the drainage system, which is made such that no accumulation of water occurs and mainly specifies a velodlty of flow equal to or greater than 200 \sec.

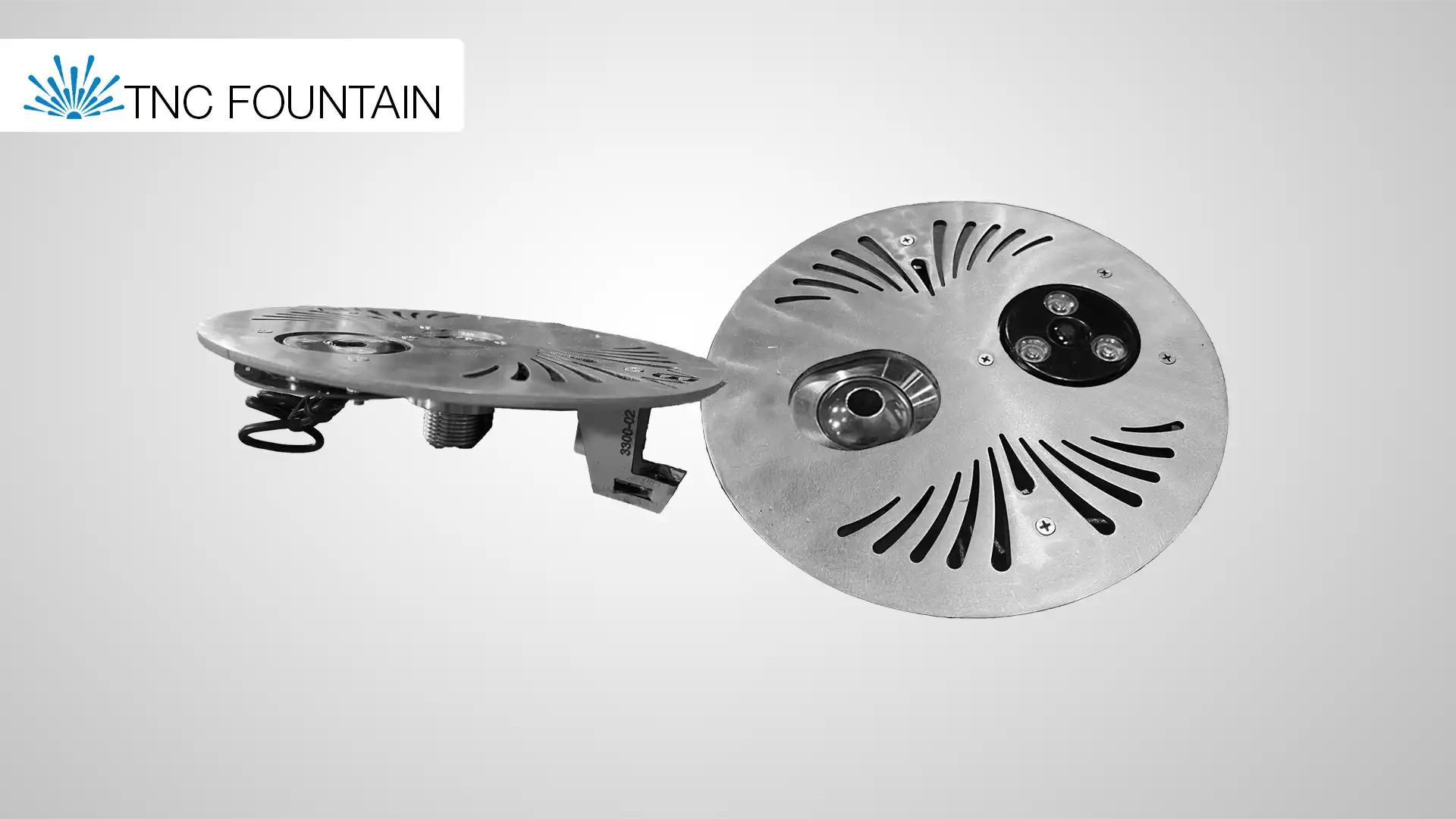

- Nozzle and Lighting Assembly: Special nozzles-fine laminar jets, jumping jets, and umbrella sprays-are fixed flush to the deck surface so that they produce precisely synchronized jet patterns. IP68-rated RGBW LED lighting with pixel mapping ability is then housed within the nozzle bodies, providing vibrant and controllable illumination.
- Digital Control System Integration: The entire spectacle is governed by advanced digital controllers that ensure seamless coordination between the water sequences, illumination and sound, often using DMX and MIDI-synchronized valves with an extremely fast 0.1s response time for real-time rectifications.
Optimizing Site Selection for Tank-Free Water Features
The versatile nature of the tank-free design makes the Dry Deck Fountain the perfect solution for a number of distinct commercial and public applications, where safety and flexible space utilization are paramount design considerations.
Urban Public Plazas and City Squares: These high-density, multi-use areas benefit immensely from a tank-free design. The system allows citizens and tourists to engage with the display while keeping the entire walkable area clear during off-cycles. Water and light shows, programmed for attraction, change public space into an attraction that fuses art with the sustainable management of water.
Recreational and Children’s Play Zones: The zero-pool design altogether eliminates the drowning hazard posed by classical water fountains. With anti-slip surfaces (e.g., R10 rating), stimulating jet action would provide a fun and secure play area, while LED lighting installed for energy efficiency would enliven the area both day and night without capping the passageway or accessibility.
System Configuration Models: Traditional Tank vs. High-Capacity Chamber.
Choosing the best configuration is a critical consideration dependent on the project scale and hydraulic requirement. Two main engineered solutions provide counterpoised benefits:
| Feature | Traditional Tank System | Chamber System Design |
|---|---|---|
| Water Storage | Underneath reservoir | Dedicated Drainage Pipes |
| Project Cost | Budget-Friendly | Higher (Due to Complex Piping) |
| Installation Depth | Approximately 800 mm | Approximately 1200 mm |
| Max. Flow Capacity | ≤ 150 L/s | ≤ 300 L/s |
| Maintenance Access | Accessible Panels | Service Tunnels |
Aesthetic and Functional Convergence: Musical and Rhythmic Integration
For elite commercial and hospitality endeavors—such as luxury hotels and exclusive dining establishments—the exporter’s ability to synchronize sound frequencies vastly improves brand prestige. Precise music-choreographed action of the water jets occurs by means of meticulous controls delivered through electrone-pneumatic DMX. The spray patterns and height of the jets may therefore be adjusted in real time, making these thematic shows truly immersive and engaging for the guests—now sometimes accented with the use of mist or laser—where the acoustics of the water are in tune with the day’s or night’s ambience.
The Drydeck Fountain truly redefines the aesthetics of contemporary public space in that it marries high-quality water art with functionality and safety-oriented design. Its various applications, from low-budget tank systems to such high-capacity chamber creations, set itself to meet the tough demands of urban planners, recreation developers, and luxury venue operators. With all the safety measures and intelligent operational control ingrained in the system, it guarantees workability, all the while providing unique and engaging experiences along the way; all these while preserving water and workable areas that are hard-won. We encourage you to consult with our engineering team for in-depth CFD simulations and custom BIM development for the optimization of your project.
