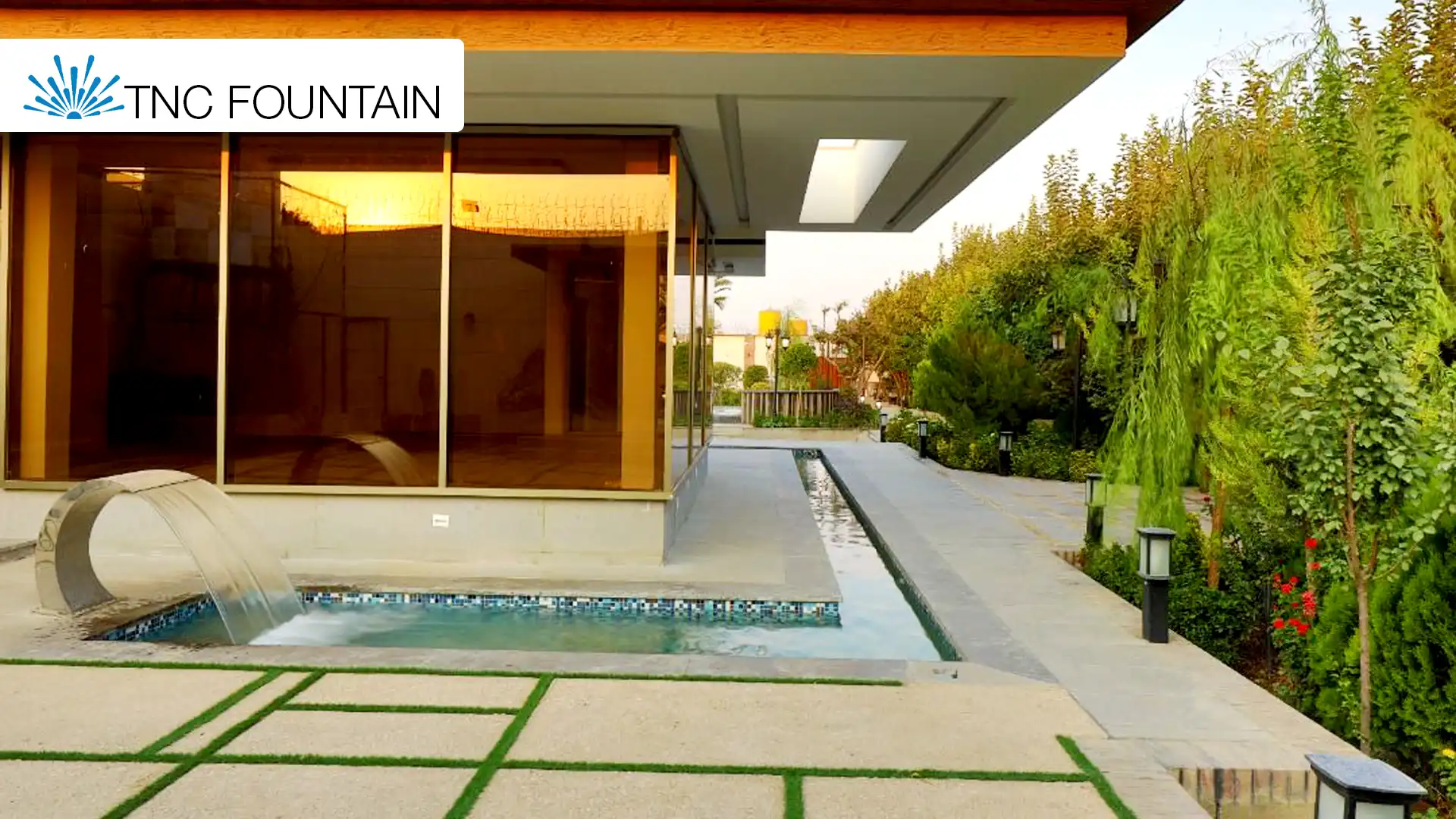

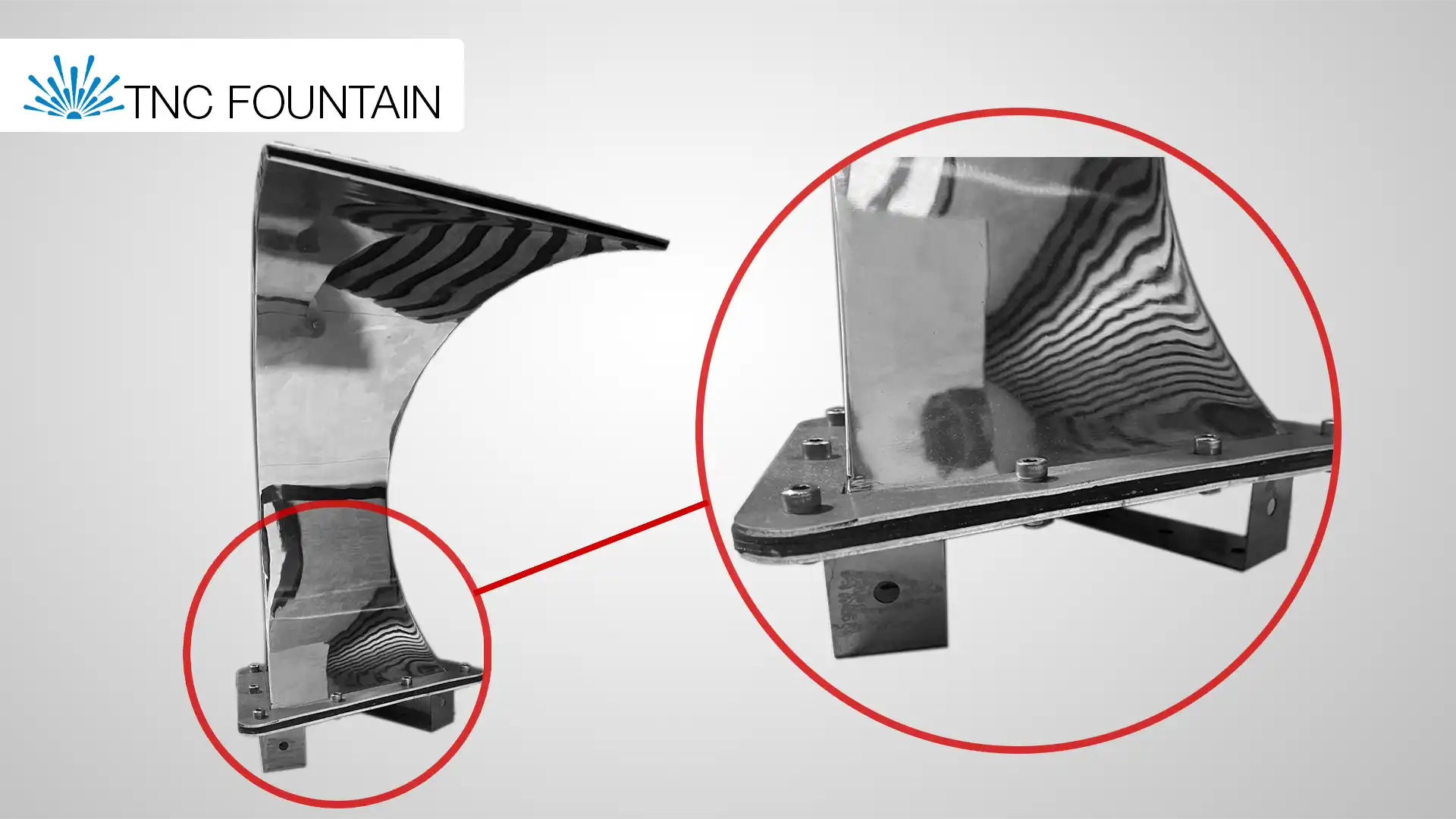

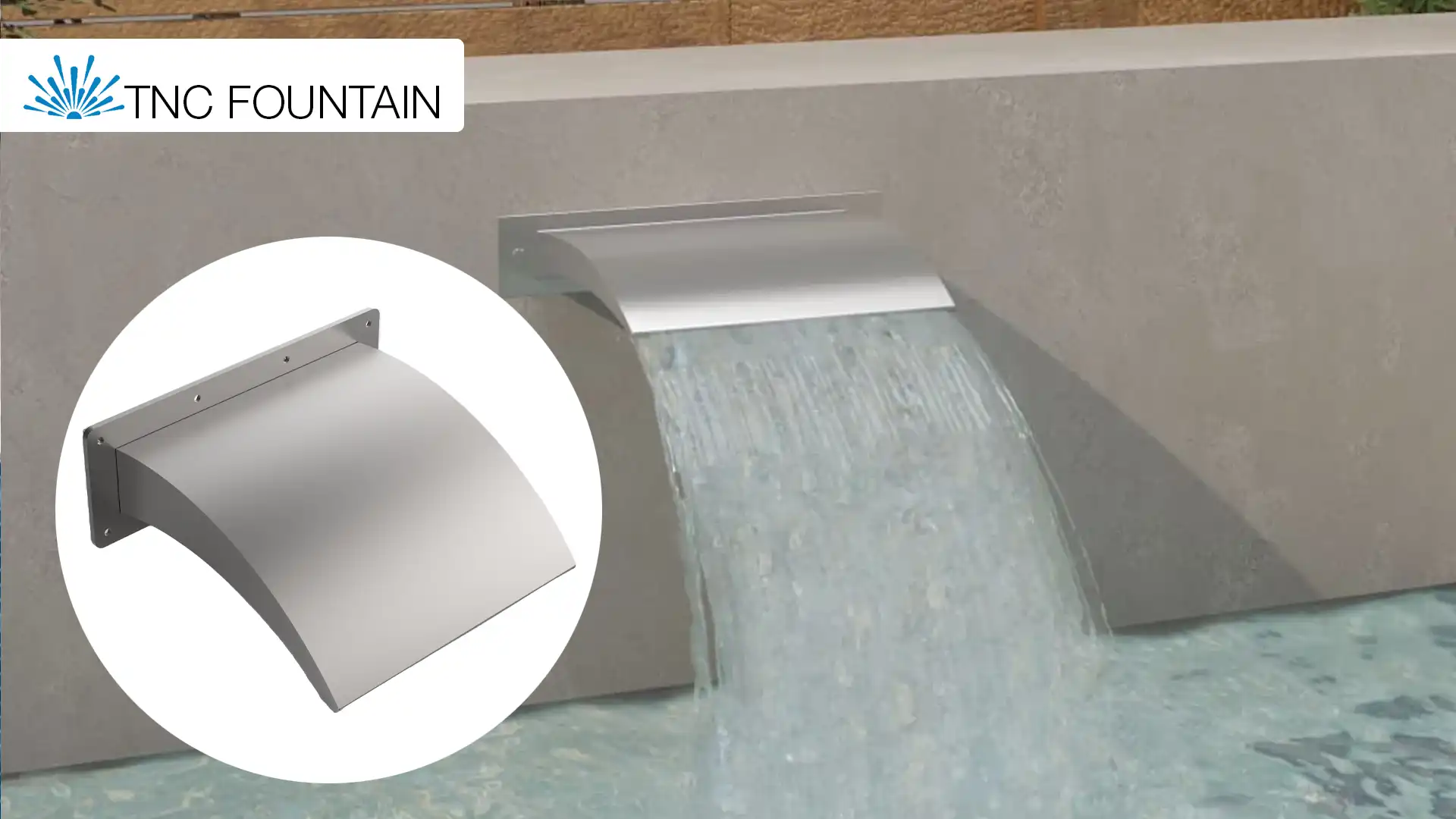

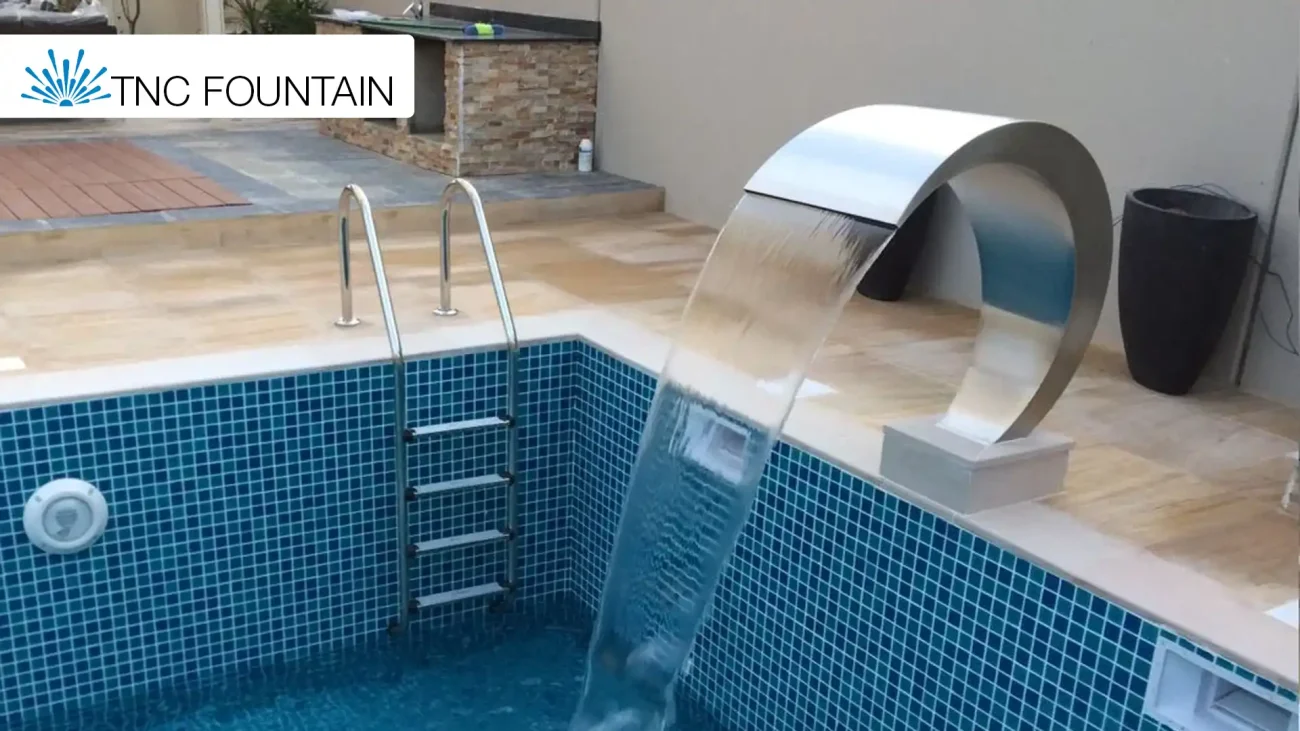

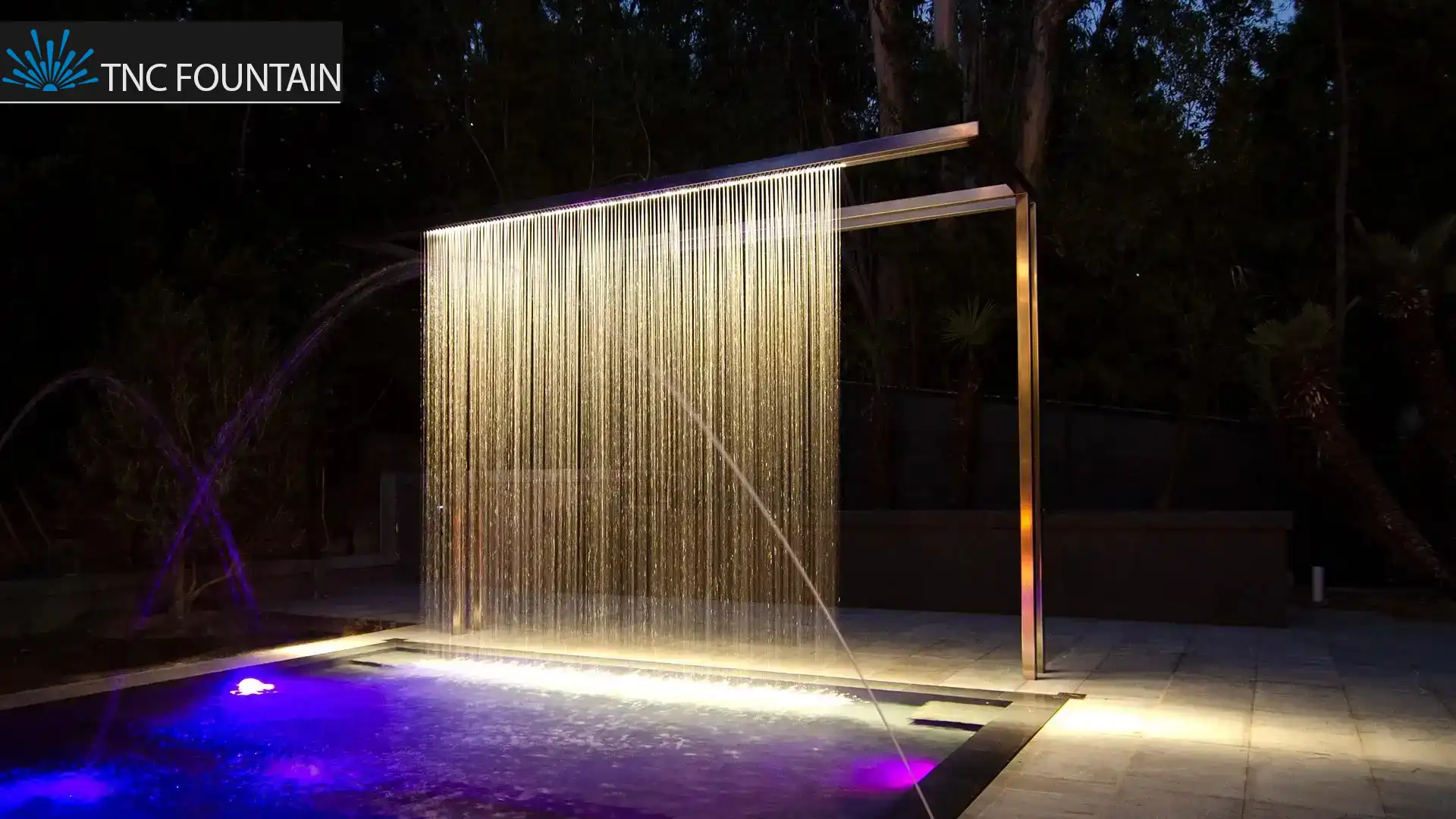

Stainless Steel Curtain pool water features
Stainless Steel Curtain pool water features
A field of high-quality and high-interest pool water features is surely among the curtain fountain lands. The article has also attracted the attention of very high-end customers and specifiers because of its twofold-valued function: it is both a source of therapeutic hydro-massage and acts as a mesmerizing, high-impact aesthetic enhancement. This kind of pool water fountains is engineered expertly to produce a uniform high-pressure sheet of water that visually elevates the pool environment dramatically as the flow is powerful back into the basin.
Technical Specification of Our Stainless Steel Curtain Pool Water Features.
The system relies, therefore, on the material science and design engineering for quality and durability:
Material Composition: Available in tough 304 or 316 stainless steel alloys required for exposure to water.

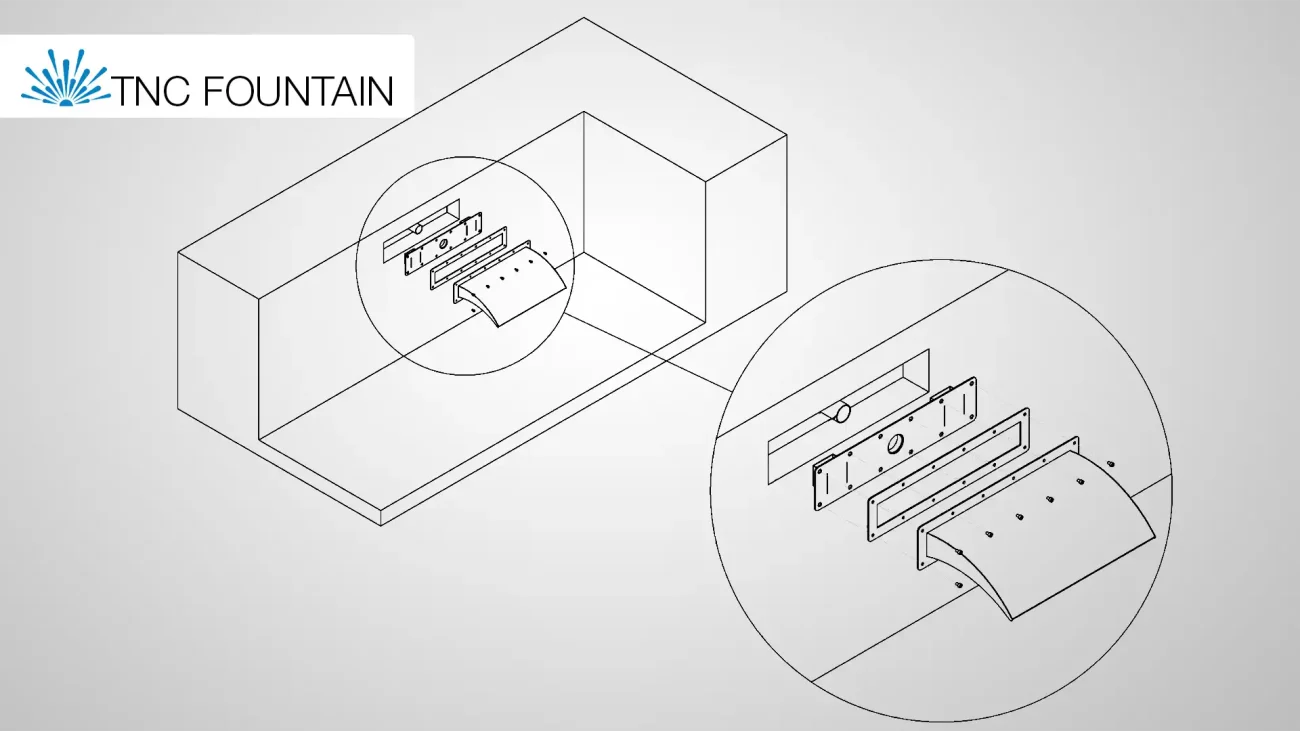

Flexibility of Installation: The company provides two distinct configurations for integration:
Flanged two-piece design (recommended for maintenance).
The single-piece unit is attached at the time of construction.
Customization: A myriad of size configurations and flow patterns is available depending on particular project requirements.
Models: Clients can choose either the permanently wall-mounted or the dynamic designs intended to be freestanding.
Performance Control: Each unit comes with an integrated flow stabilizer and vibration dampener for even operation.
The Ultimate Guide to Pool Water Features: Selecting Your Curtain Fountain
In the fine category of elegant pool water features, curtain fountains form a selection in merging modern technology and superior architecture. This type of installation features two general divisions and can give a pool project different aesthetics and functionality.
Programming the Curtain Fountain Models: Free-standing vs. Wall-Mount
1. Freestanding Curtain Fountain-Hydro-Massage Legacy:
It can be considered one of the earliest forms of decorative utilization in luxury-designed pools as originally intended for hydrotherapy. Eventually due to such a dynamic visual impact, it became that very fundamental and popularly sought feature of modern pool water features.
Installation: Along the perimeter edge of the pool.
Performance: Projects jets of high-pressure water for a dramatic visual performance.
Functionality: Conveniently double as a potent hydro-massage feature.
Innovative Design Choices: These can come in many sculptural nozzle designs that may be curved, spiral, S-shape, or stylized designs.
Most Efficient Models: The Curved Curtain Fountain (the standard-reliable) and the Dive Curtain Fountain (the latest-optimized and most hydraulically efficient design).
2. Wall Mounted Curtain Fountain-Architectural Integration:
It is the new innovation in the contemporary design of Outdoor Water Fountains: the wall-mounted curtain fountain, which is engineered to be perfectly installed on vertical walls of pools or at adjacent architectural structures, making it perfect for integrated landscaping projects.
Water Discharge: High-pressure water discharge.
Height Tolerance: Fit up to 2 meters in height while the flow stream lasts.
Placement Strategy: Most suited for pool edge areas or under terraces to deal with the splashes and drop of water trajectory.
Acoustic Note: The sound produced by the water in these units will be significant, hence need proper acoustic planning in the design stage.
Major Important Considerations in Stainless Steel Curtain Pool Water Features
Careful attention has to be paid to the choosing and installing the materials in order to maintain the longevity of these pool water features and keep their aesthetic appeal.
Long-lived Material and Installation Mode
1. Construction Material (The Chlorinated Challenge):
The constant exposure of chlorinated water and the chemical treatments, along with UV rays, to these pool water features makes selecting the most durable material a priority:
Stainless Steel (Best):
304 Grade: Most suitable for ordinary low-dosage freshwater pools free from heavy chemicals.
316 Grade: Required for salt water pools and chlorine-heavy places, high in coastal outdoor areas (best defense against corrosion).
Plexiglass (Not Recommended):
It becomes cloudy and yellow over time from destruction caused by chlorine.
Loses clarity rather early.

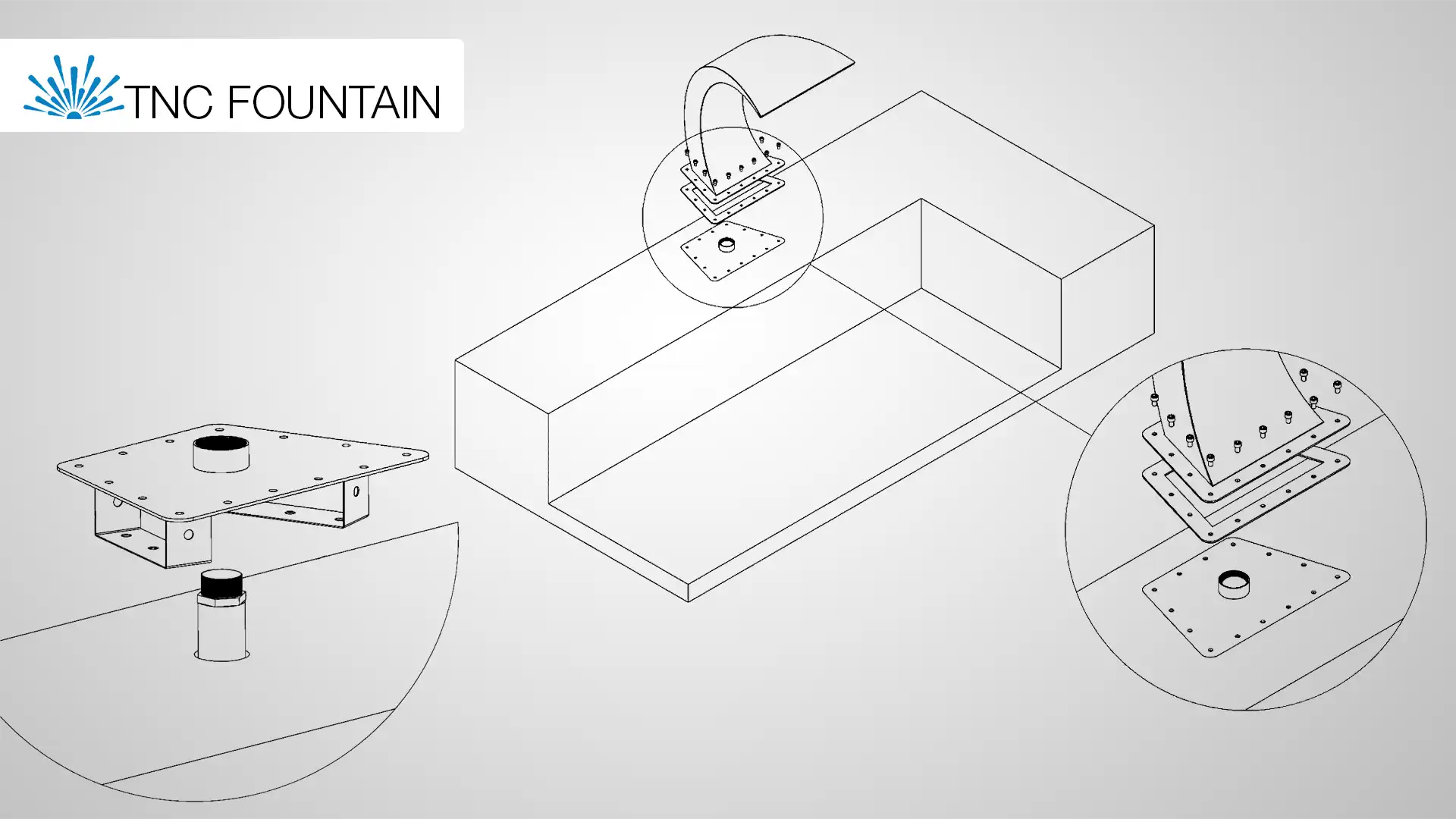

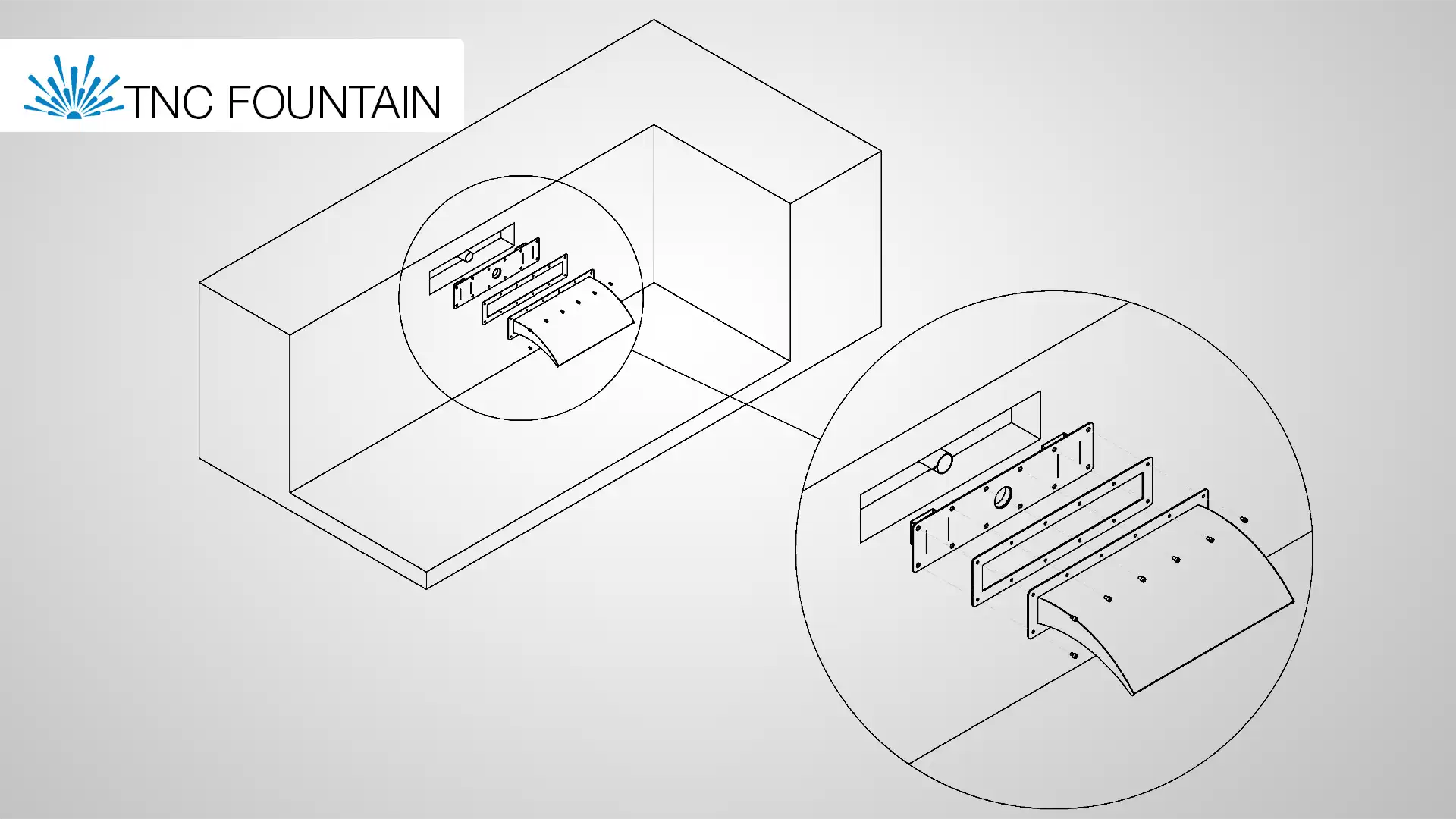

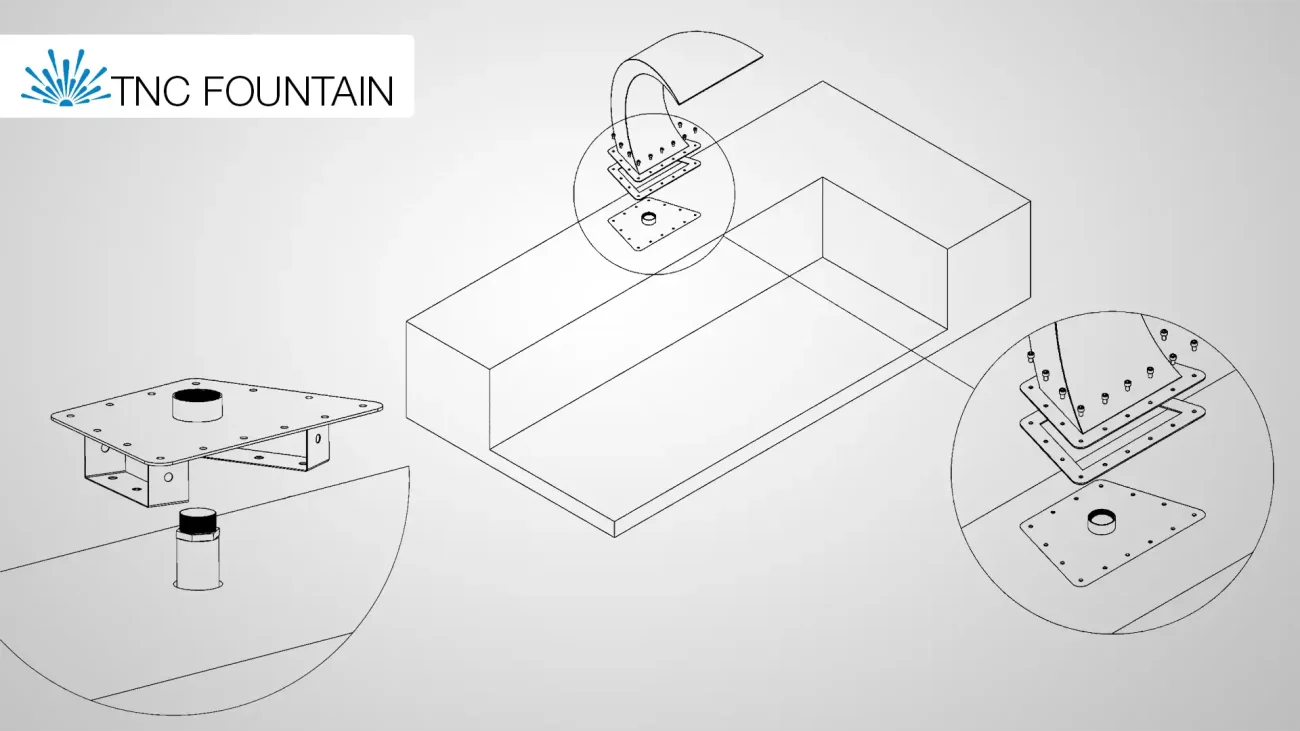

2. Installation Type (Servicing and Protection):
There are basically two types for incorporating these specialized features into the pool:
One-Piece Design: Installed during the pool construction process (high risk of damage during build-out; difficult to service/maintain later).
Flanged Two-Piece Design (Best): The base flange is installed part of construction, and the main body is attached later. This approach significantly reduces the risk of damage and permits easy maintenance and servicing access.
3. Water Supply Pipe Sizing:
The system needs at least a 2-inches pipe minimum in diameter for water supply to provide good hydraulic performance. Pipes of bigger diameters required for larger or higher-flow fountains; consult technical specialists for project sizing requirements only.
Final Recommendations for Your Pool Water Features:
By abiding by the guidelines below, one would ensure that pool water features are properly installed in a durable manner while performing efficiently and providing aesthetic value:
For Durability: Opt for stainless steel, and in any pool environment that is saltwater or has heavy chlorination, choose 316 grade.
For Easy Maintenance: Two-piece flange models are preferable so they can be serviced easily in the future.
For Best Performance: Ensure the water supply utilizes a pipe of at least 2 inches.
Next Steps: Specialized Design Consultation
To receive expert guidance on the precise sizing, material grade (304 vs. 316), and hydraulic configuration required for your Stainless Steel Curtain pool water features project, consult with our technical specialists today.

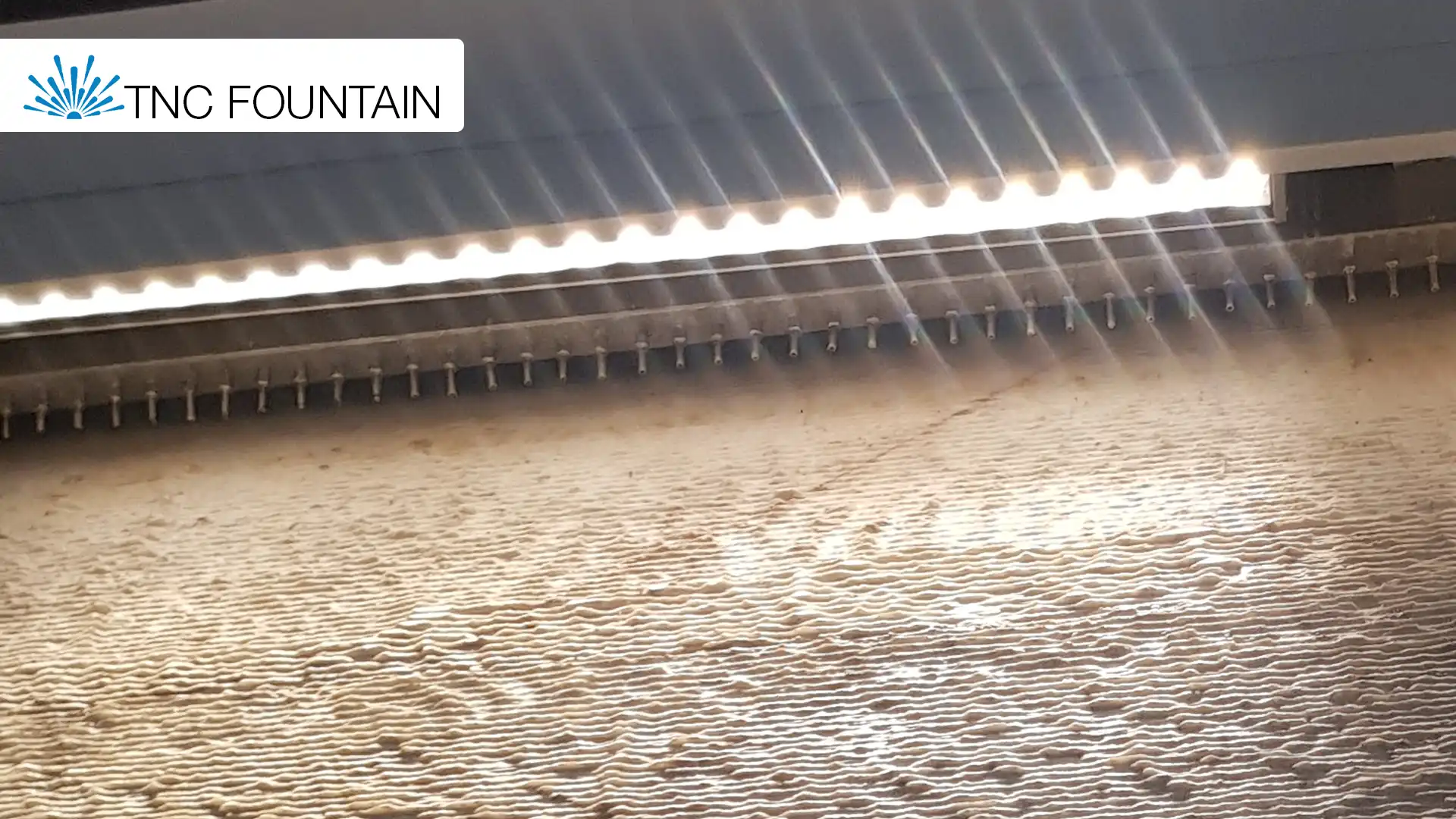

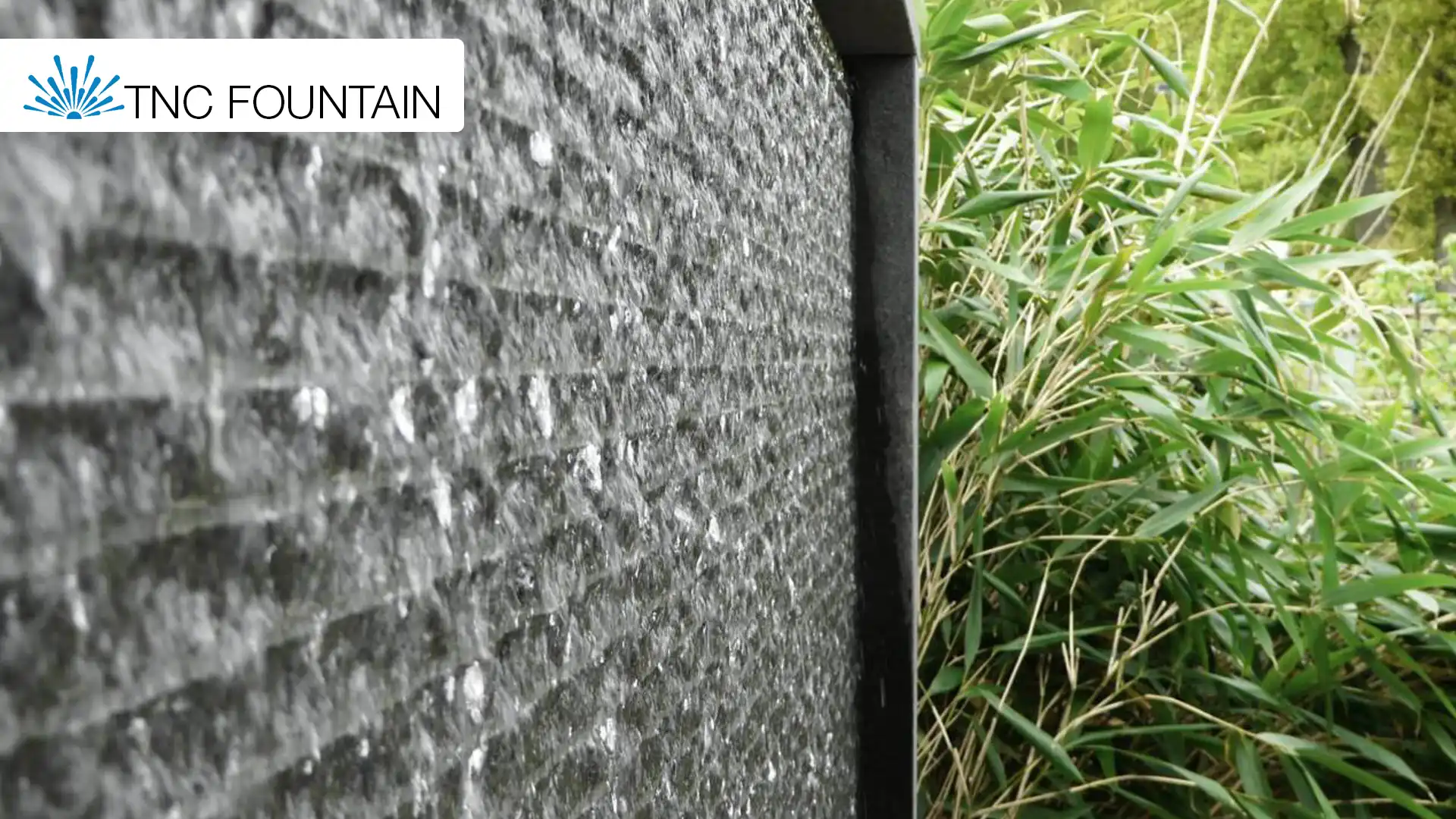

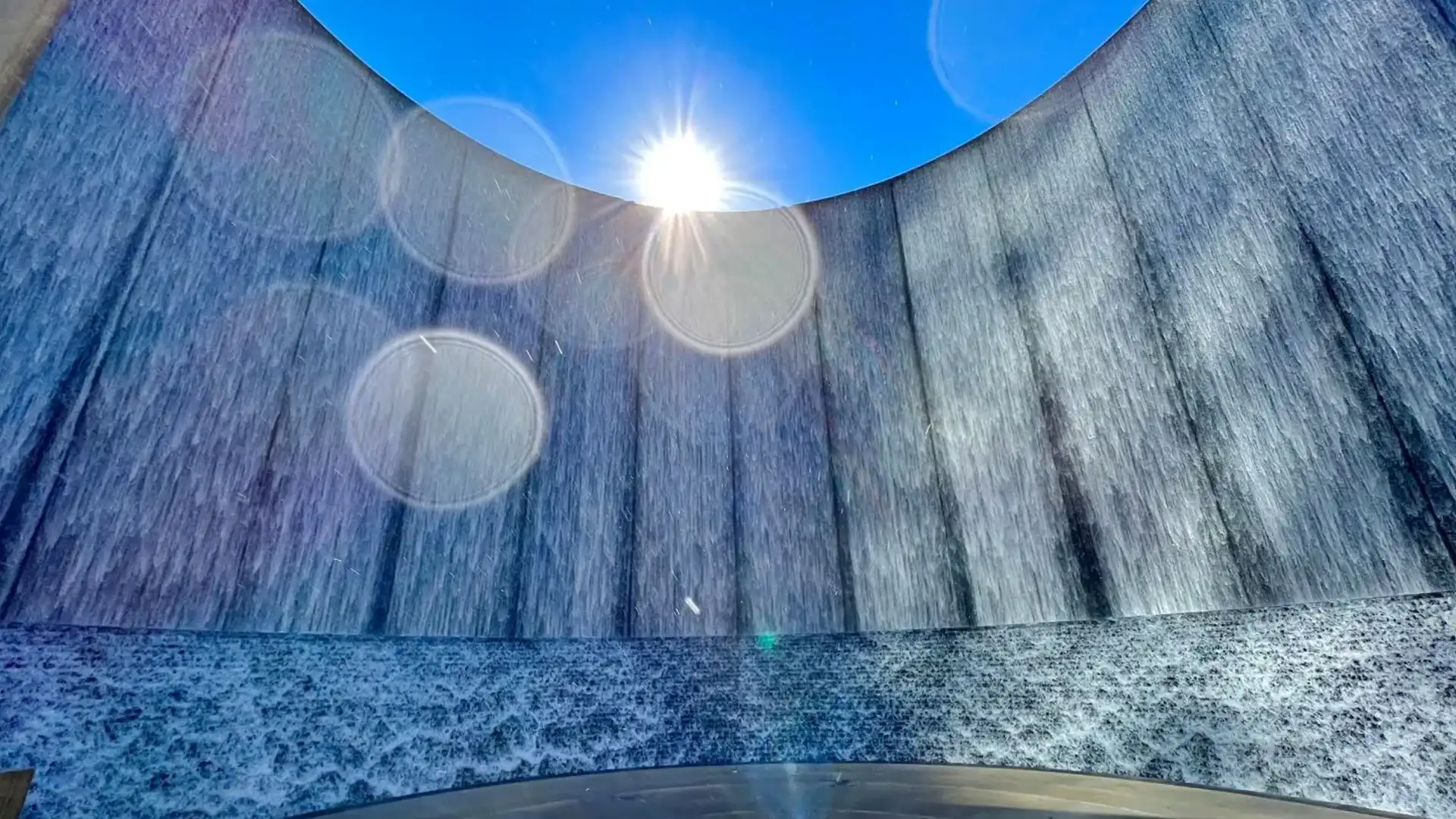

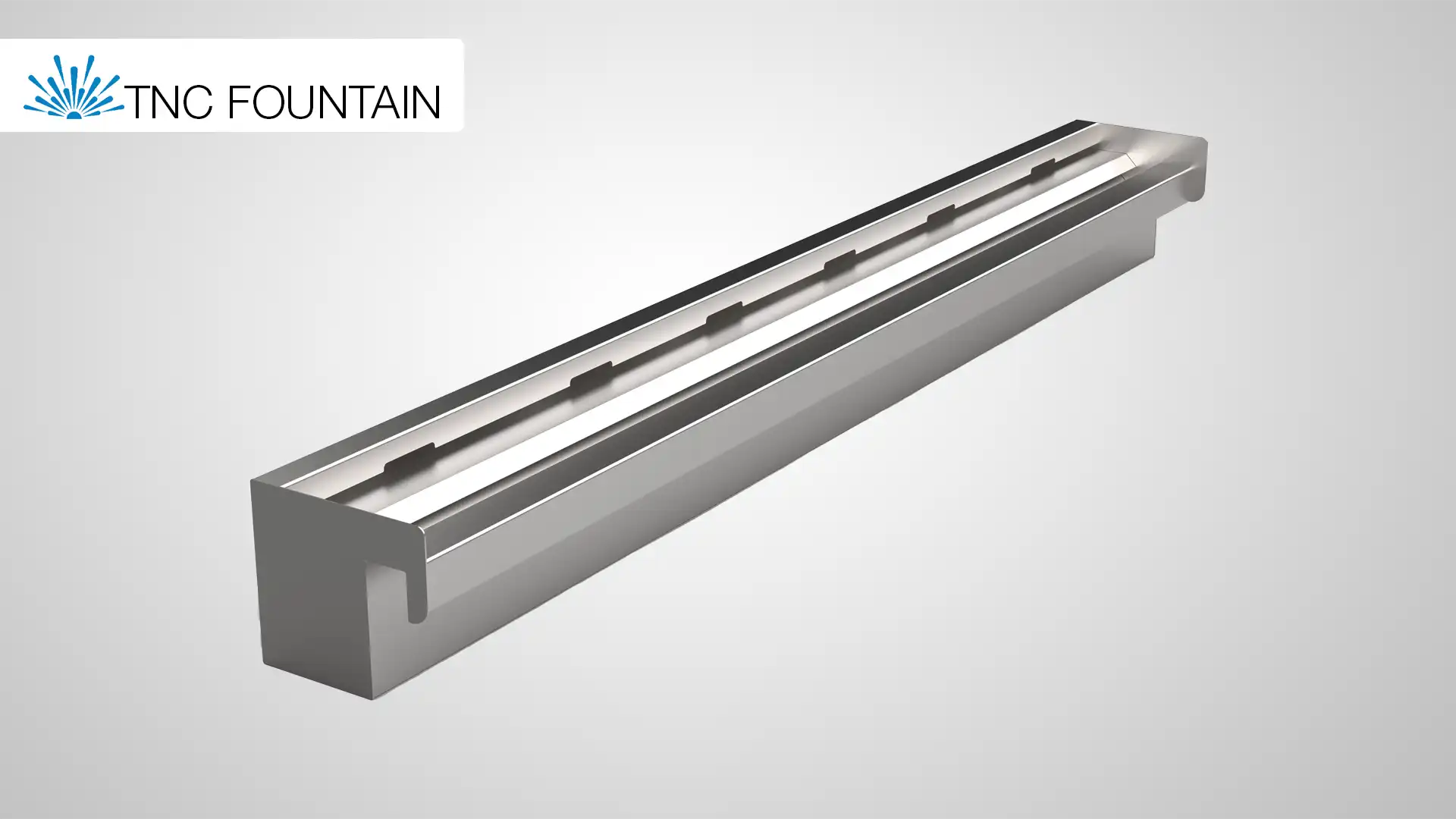

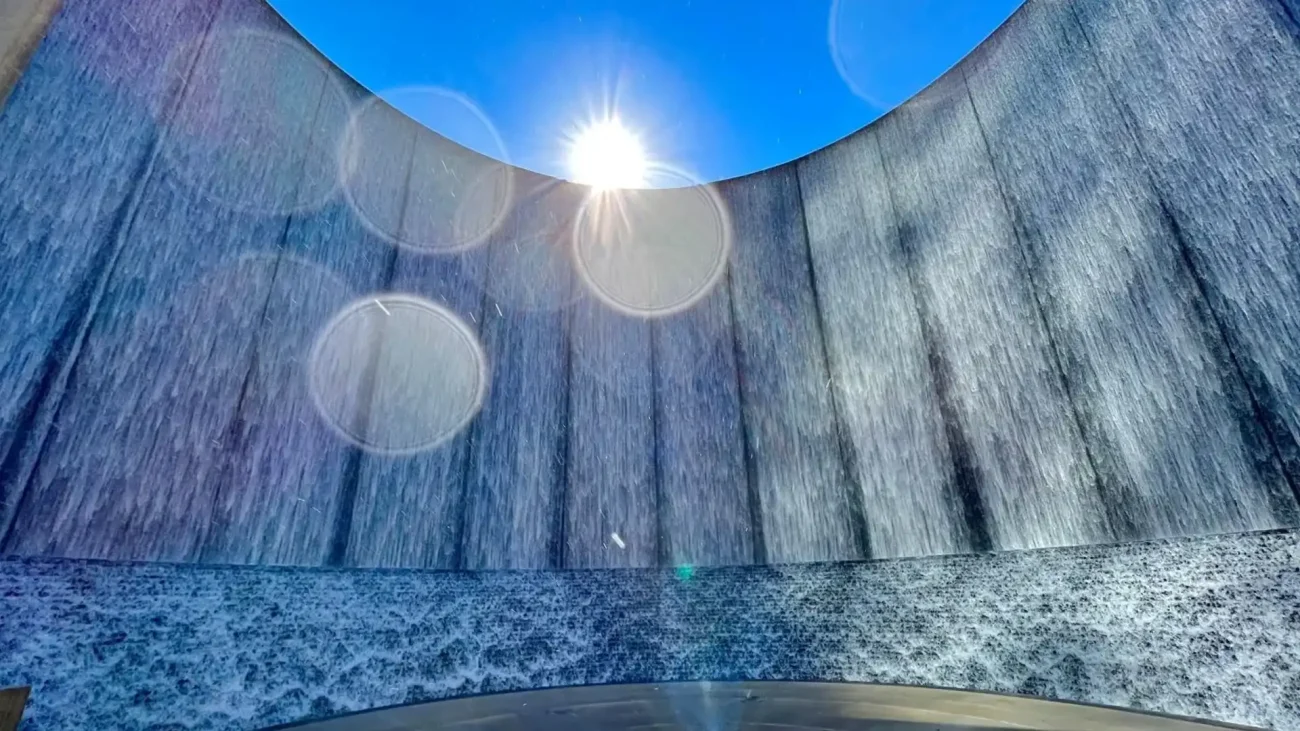

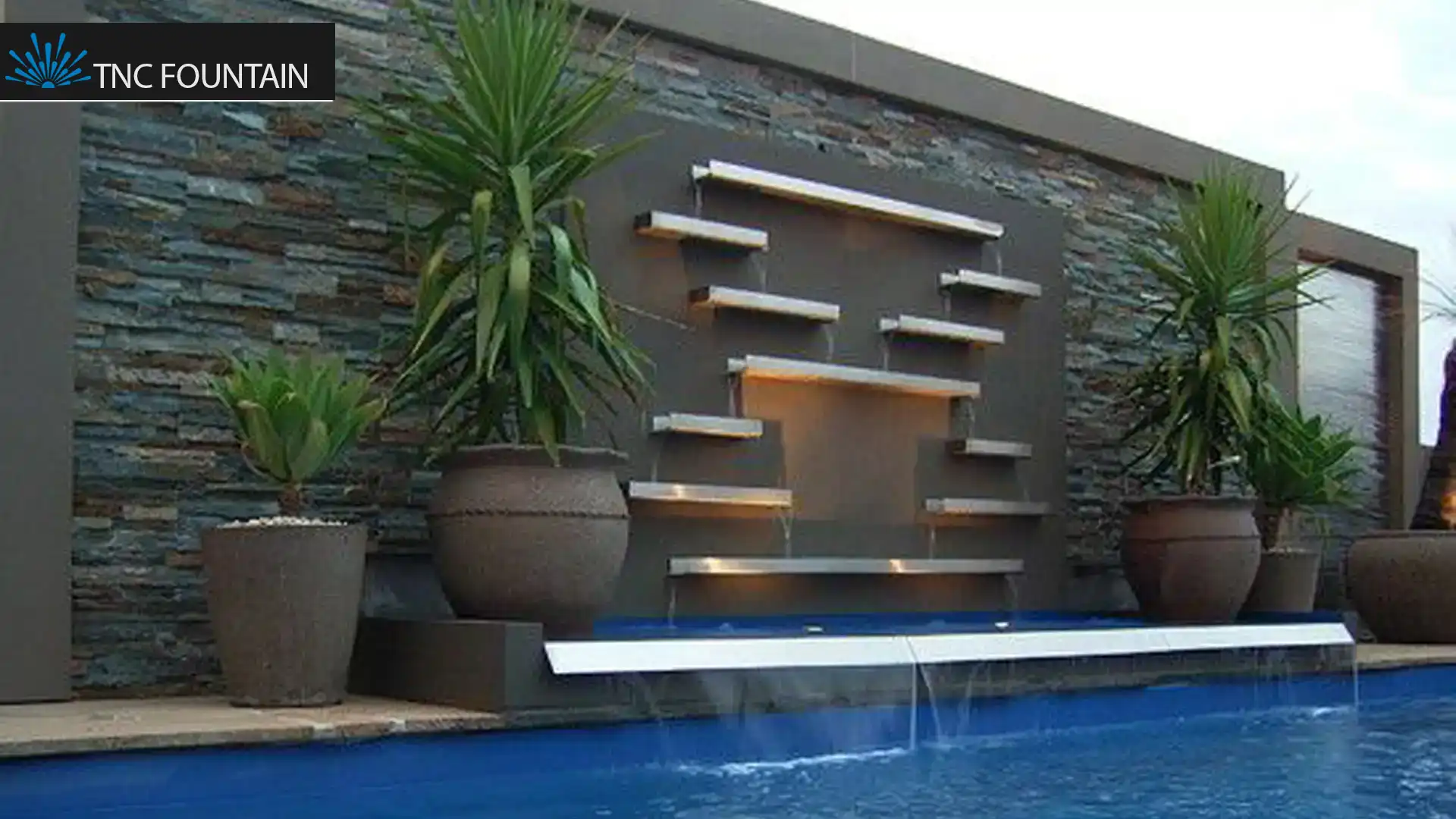

wall waterfall fountain
The premise of the wall waterfall fountain is simple: it creates an awe-inspiring quality with water running vertically over some kind of architectural surface. This makes any atmosphere very tranquil. It can function in a way that it would fulfill the goal of a peaceful Water Feature in interior or exterior settings while being versatile to work with. The fountain would be a really advanced concept, be it with this new idea of a possibility of a double placement within an apartment, and would architecturally marry interior spaces.
Optimal Integration for Diverse Architectural Spaces
Flexibility is the key feature of our custom-made Outdoor Water Fountains, and hereby allows it to adapt itself to a wide variety of environments:
Commercial Spaces: In intense design details of any attractive restaurant or big hotels.
Corporate Sites: Corporative buildings and headquarters.
External Areas: Sky gardens or general exterior landscape designing.
Internal Spaces: High-grade residential or any kind of commercial interior space.
Key Features of Our Custom Wall Waterfall Fountains:
The construction allows one to choose the best assembly and fixing method:
Installation Options:
Pre-assembled packages to take a disciplined project through the quickest route possible: to being a fully functional Wall Waterfall in no time at all.
On-site construction and assembly: A necessary requirement in order to address large-scale custom builds.
Mounting Alternatives:
Surface-mounted nozzles are for easy installations with less intervention.
Recessed nozzle systems will create a beautiful flush to the wall, with the nozzles completely concealed from view.
Custom Sizing: Allows for almost infinite dimension customization to fit it to the desired space.
Design Variants:
Standard Wet Wall design (a complete sheet flow).
Aria Wall design (the dynamic water flow creates aerated effects).
The Ultimate Guide for Wall Waterfall Fountain Nozzles and Models
The smooth functioning and beauty of a wall waterfall fountain depends on the selections between the two fundamental nozzle types that the specifying architect makes according to the constraints of the project and the desired visual finish.
Comparing Nozzle Types: Concealed vs. Exposed Systems
1. Recessed Wall Waterfall Fountain Nozzle (Architectural Preference):
This is the choice of architects for the fabrication of self-contained wall waterfall fountains, as the built system offers design elegance and, over time, greatly reduced maintenance needs.
Design Mechanics:
The nozzle remains completely concealed behind the stone or panel cladding.
Water flows almost at the edge of the surface in an easy and clear manner.
The system has always been a good solution for the prevention of exterior silt formation.
What It Demands: This design demands a clear space of about 30 cm behind the vertical wall structure in order to meet the standard.
Ideal For: First-time constructions, high-end luxury projects, and minimal architectural design.
2. Surface-Mounted Wall Waterfall Fountain Nozzle (Renovation/Constraint Solution):
Usually, retreading or retrofitting projects will indulge in using such a mechanism if structural and depth constraints engulf their projects.
Design Mechanics:

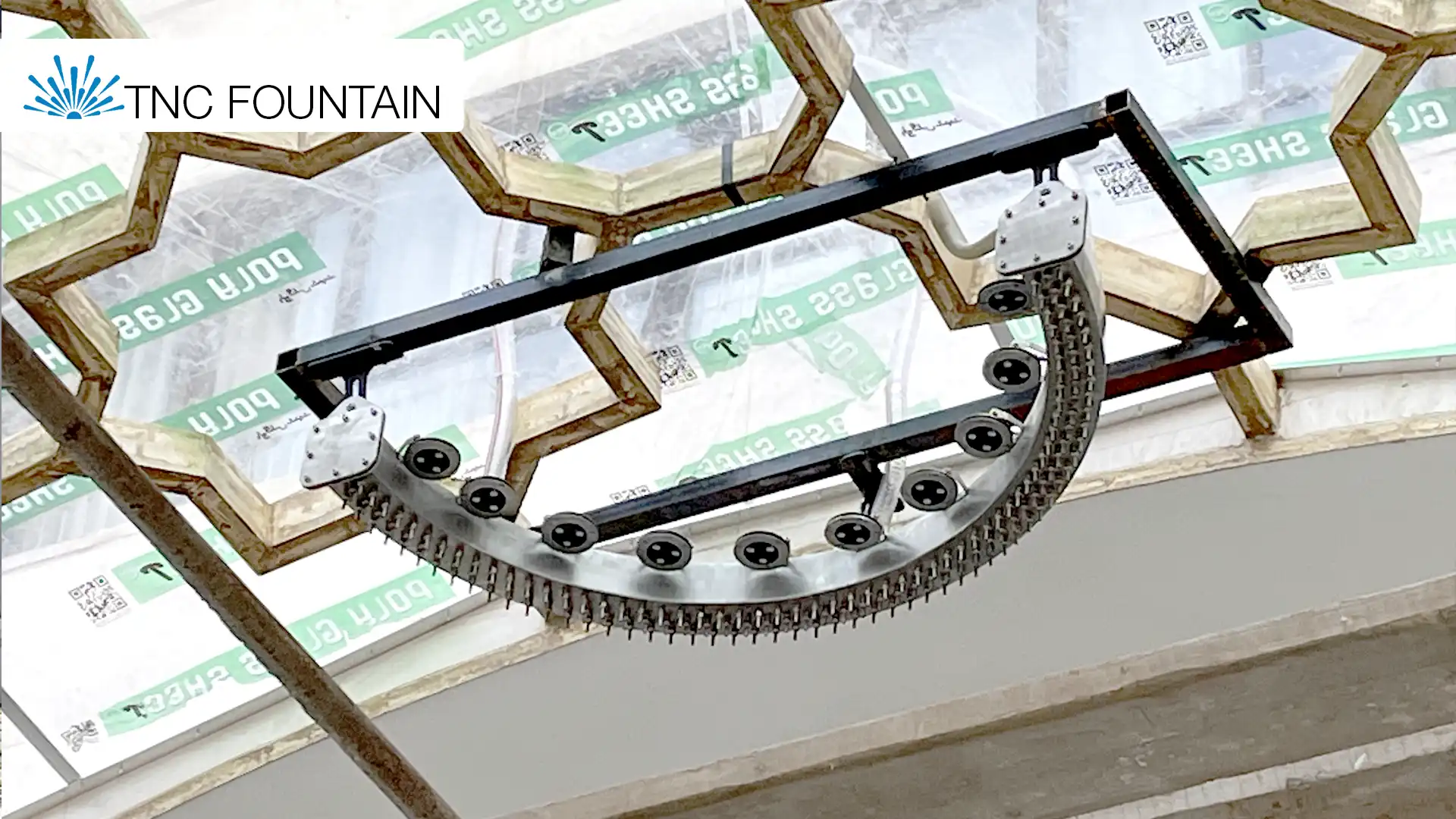

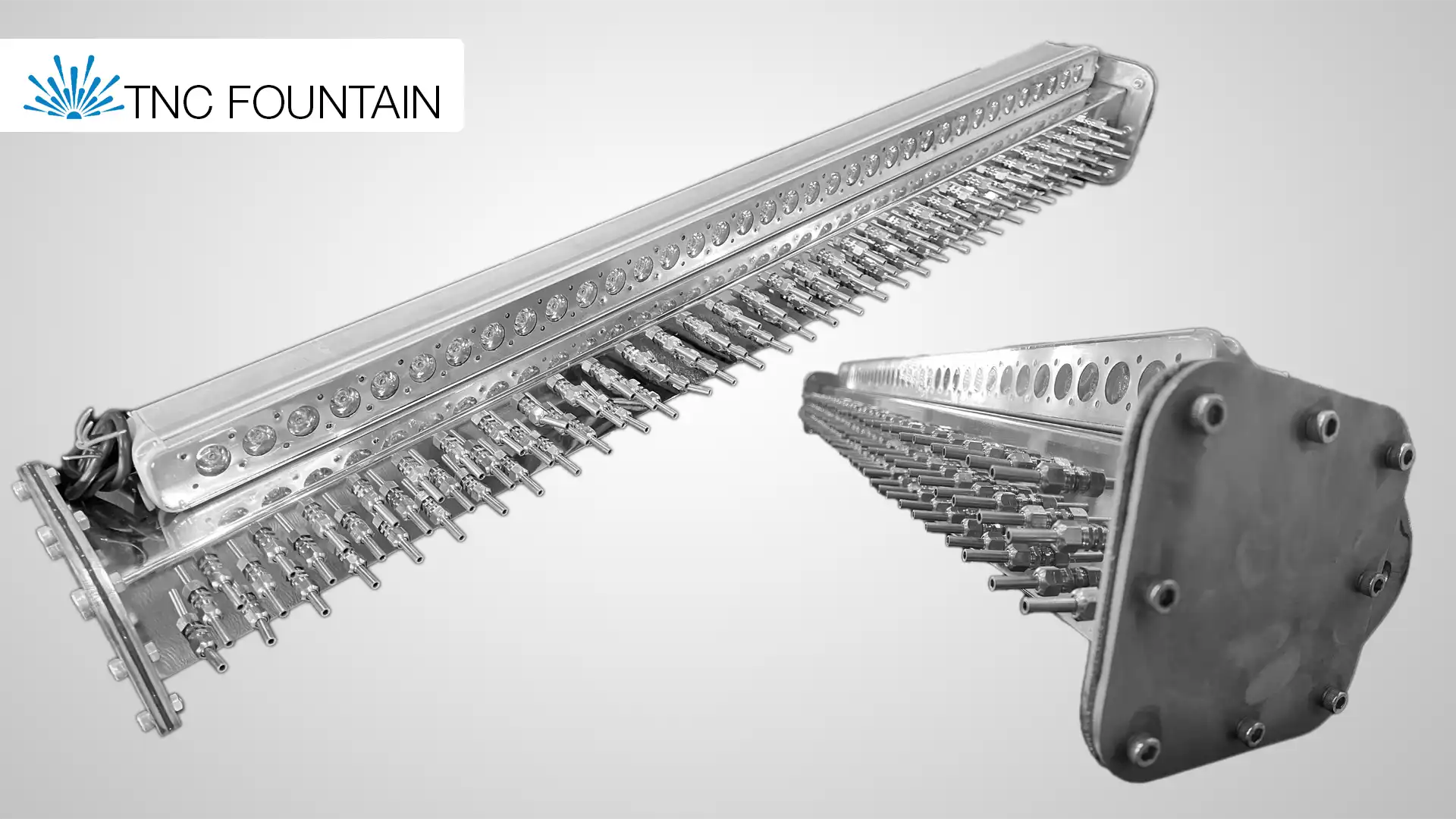

The nozzle is mounted externally on the wall face. (1 Line Rain Water Curtain)
Water is directed to the vertical surface at a slight angle.
Installation is easy and does not throw any structural constraints in its way (no major demolitions needed).
Pros & Cons Summary:
| Advantages | Disadvantages |
| Quick setup | Requires frequent descaling (visible mineral buildup) |
| No structural changes | Visible nozzle (less sleek and minimalist) |
Ideal For: Renovation scenarios with existing walls and projects mindful of their budget.
Wall Waterfall Fountain Models: Visual Effects
When looking at the models of the wall waterfall fountain, effects would come up with a view in their own design philosophies that adopt different water flow mechanisms and thus give respective visual effects.
1. A Wet Wall Fountain (Quiet and Elegant):
Flow: Smooth and uniform sheet flow that highly reflects below the knife edge.
Nozzle placement: It should be best associated with very white colors of cladding e.g., highly polished natural stones like duly gloss-elegant slate, granite, or nonporous glass/metal.
Sound: Does not make a lot of fuss in splashing, so good for indoor settings in residential and commercial spaces.

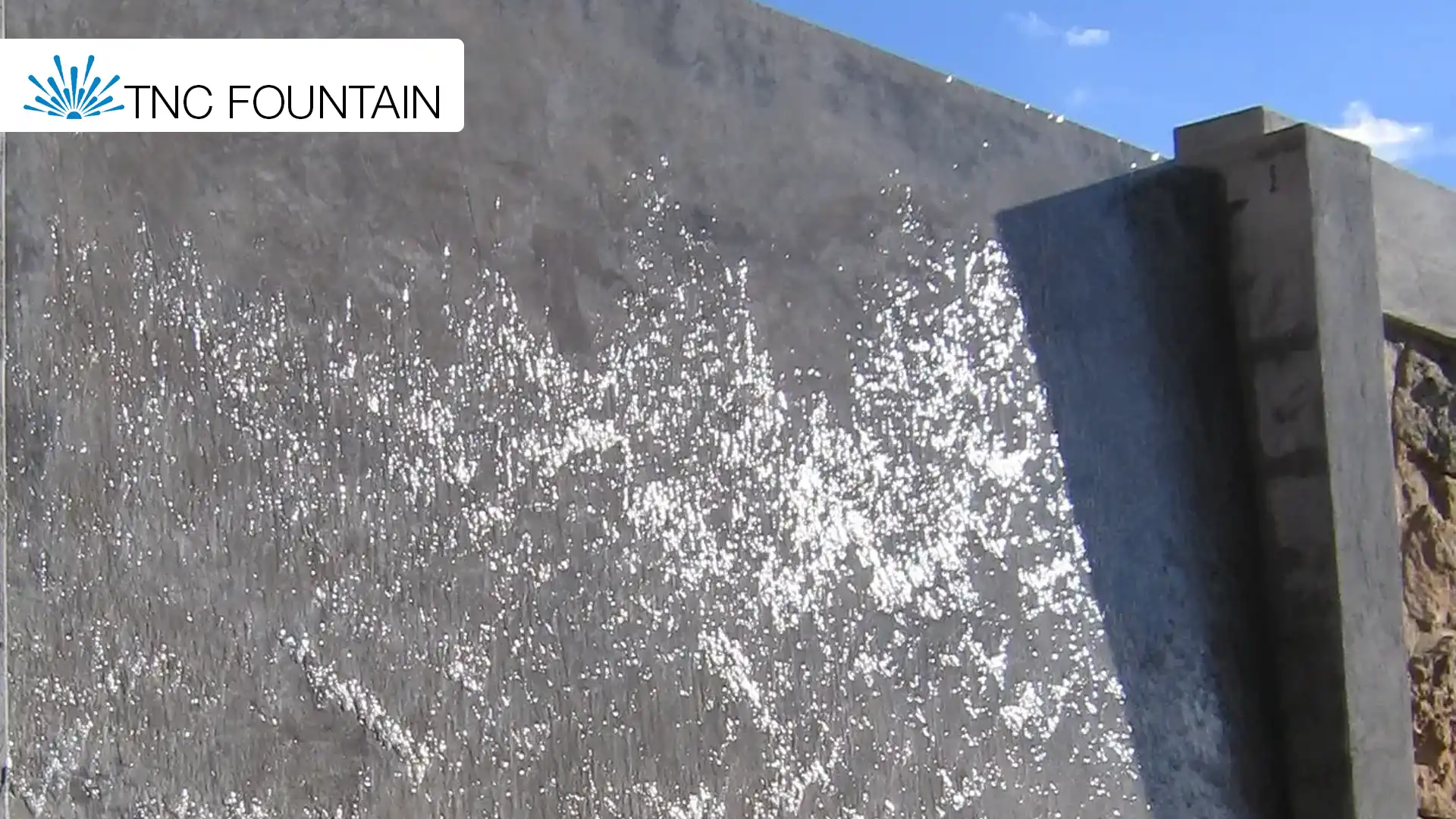

2. Aria Wall Fountain (Dynamic and Dramatic):
Flow: Have a very dynamic effect on the aerated water flow with visible thick foam effect.
Nozzle placement: Should, exclusively and always, be employed whilst using decorative finish or other impacter stones with generally heavy texture to thus enable much water aesthetic effects of the said air.
Sound/Height: Delivers a lot of splash and consequently a lot of noise, so well outside only.
Minimum Height: Minimum height to be 300 cm to get the right visual foam effect.
| Location | Recommended Water Feature Model | Why? |
| Homes, Offices, Clinics | Wet Wall | Quiet operation, elegant aesthetic. |
| Hotel Lobbies, Corporate HQ | Large Wet Wall | Customizable scale, suitable for branding. |
| Outdoor Facades, Urban Centers | Aria Wall | High dramatic visual and acoustic impact. |
Stone Selection Guide for the Wall Waterfall Fountain
The material cladding apart from aesthetics plays a very lively and crucial role in the proper functioning of the wall waterfall fountain; do remember, if it falls in the beauty section, it also falls directly into any functional topic.
Crucial Material Selection for Service Life
Aesthetic Considerations:
Pattern Avoidance: Avoid any very veined or busy stones as these may block some of the water clarity through reflection.
Techno-Limitations (materials to be avoided):
Porosity : Avoid porous stone types (some limestones) due to heavy absorption of water causing efflorescence and damage to internal walls.
Softness: Avoid soft stones that are likely to erode or wear down visibly throughout the life of the structure.
Seal: Proper joint sealing between cladding panels is absolutely critical for water penetration with associated structural leaks.
Next Steps: Building a Water Feature Perfectly
For personalized technical assistance with designs including respective detailing on recess nozzle go-down and stone permeability guidance in your wall waterfall fountain project, contact our design team without delay.

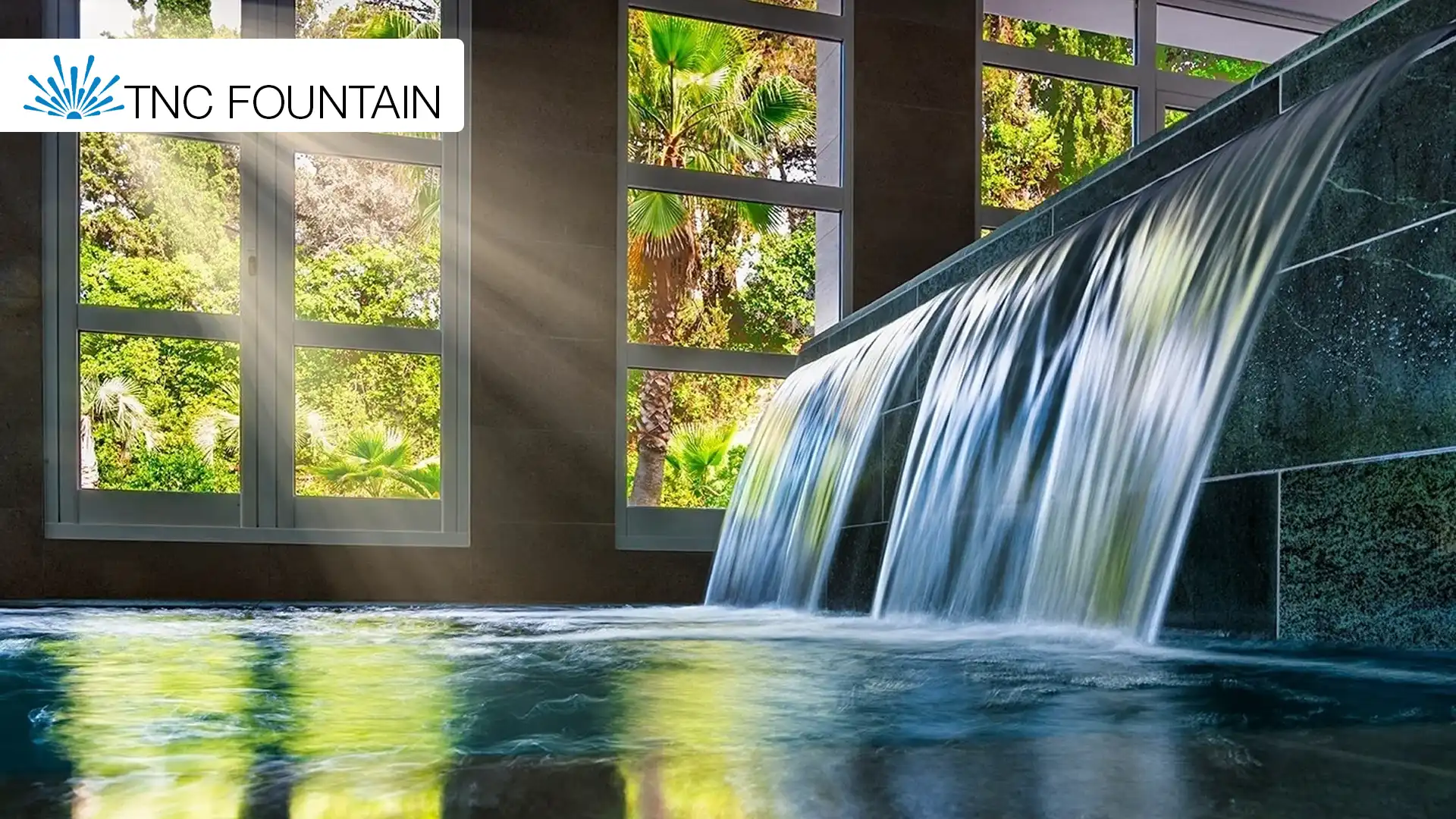

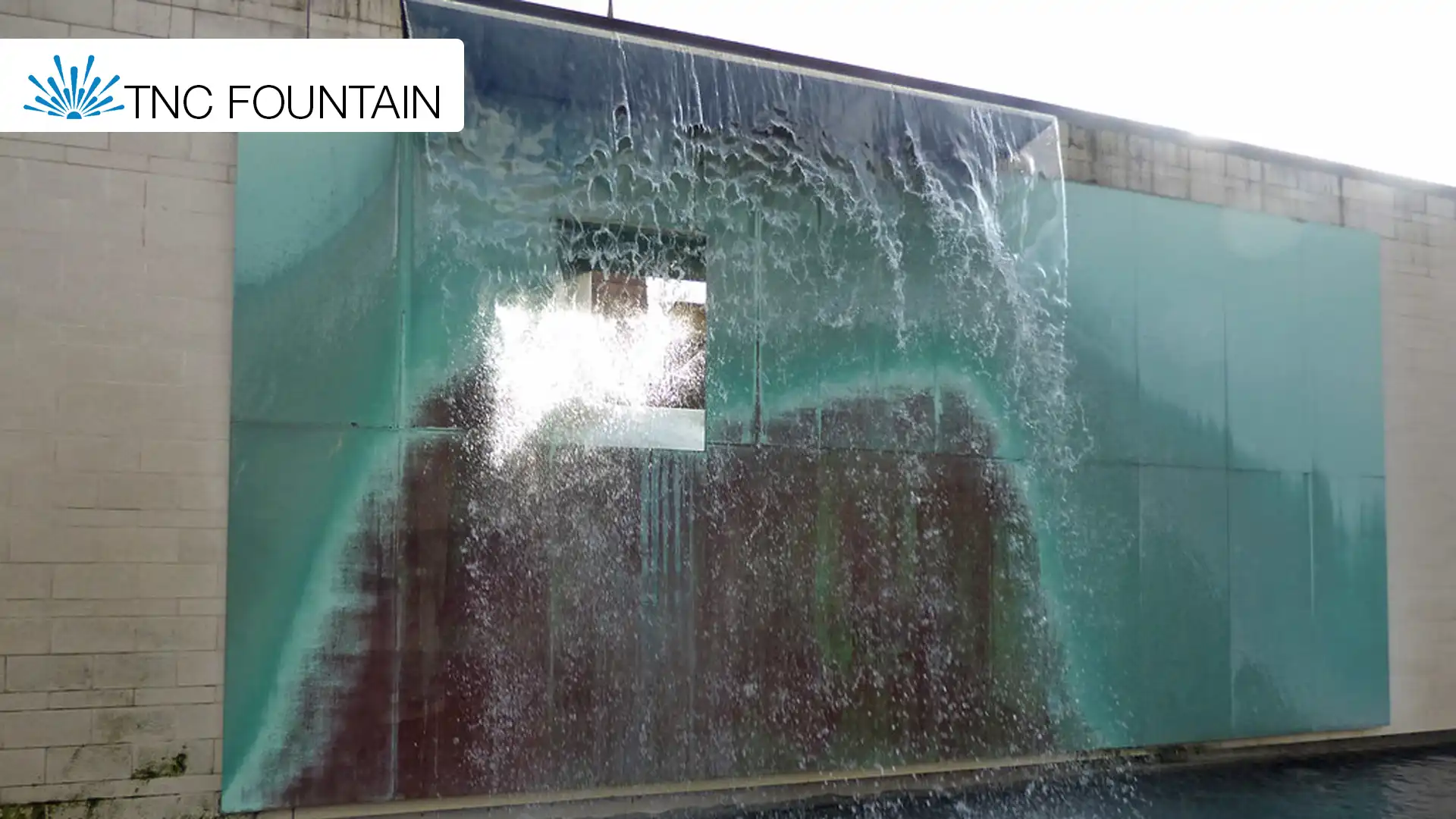

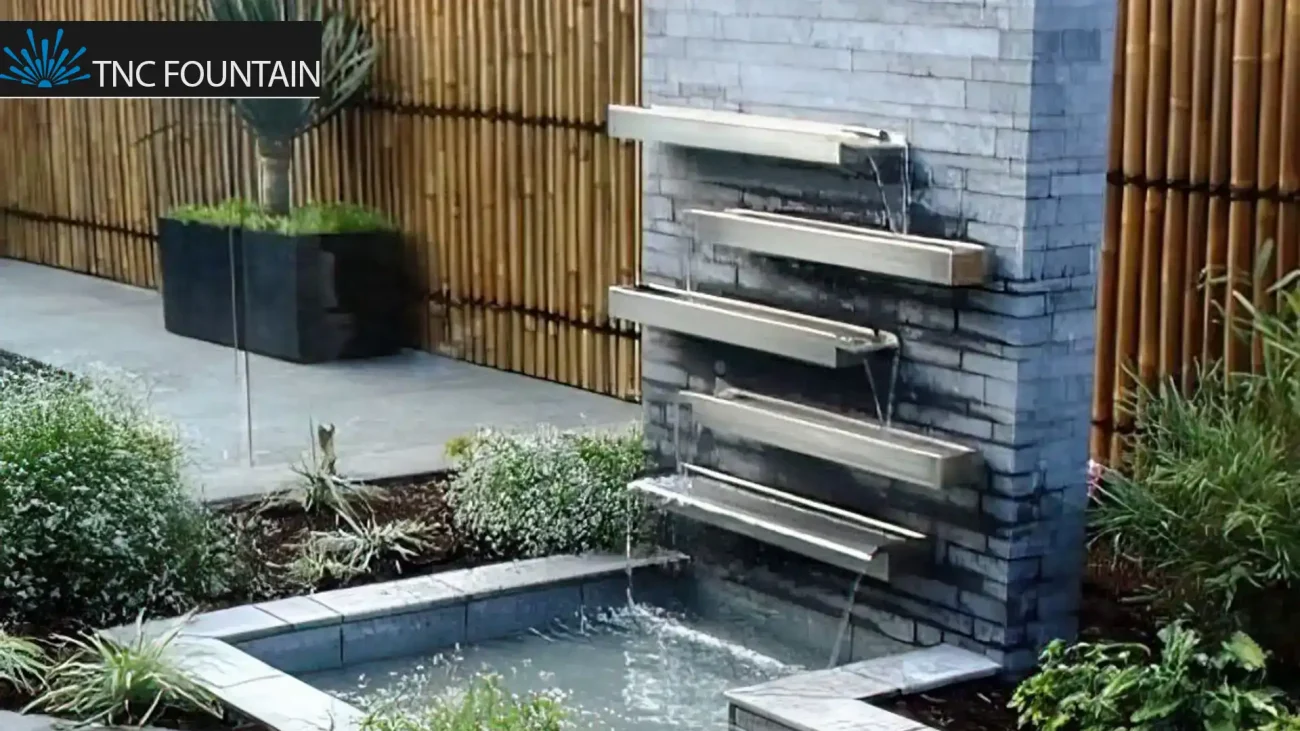

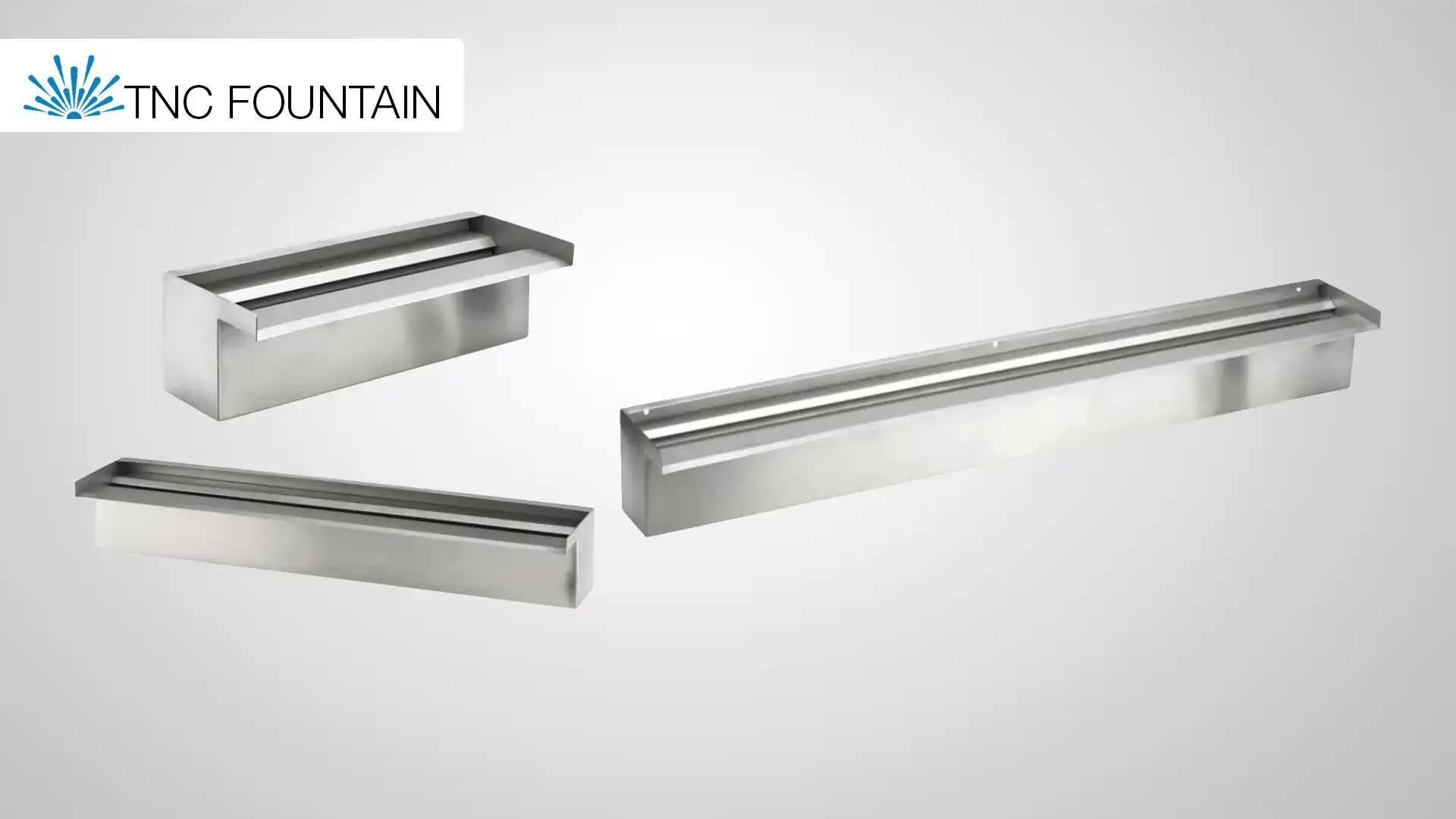

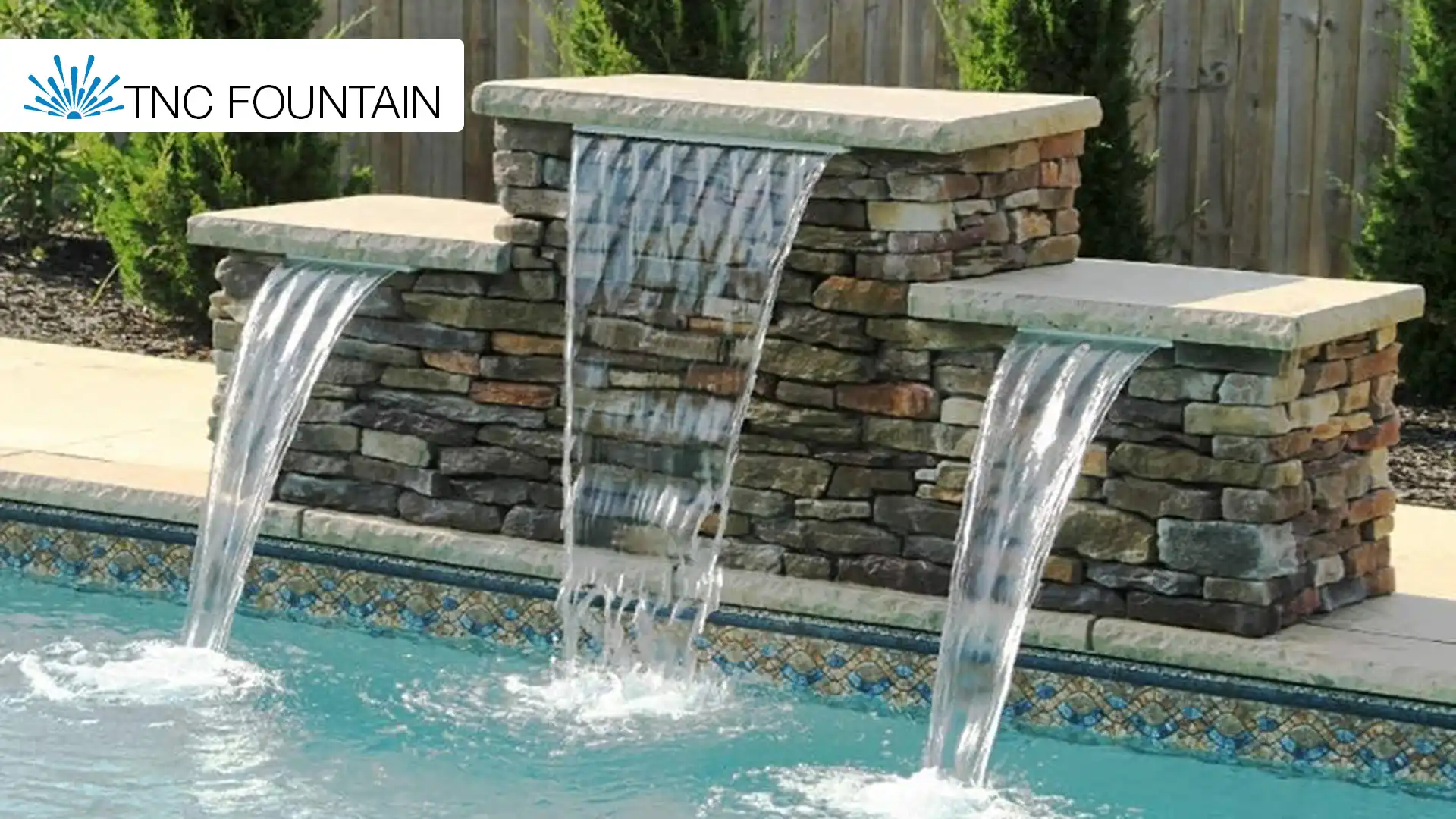

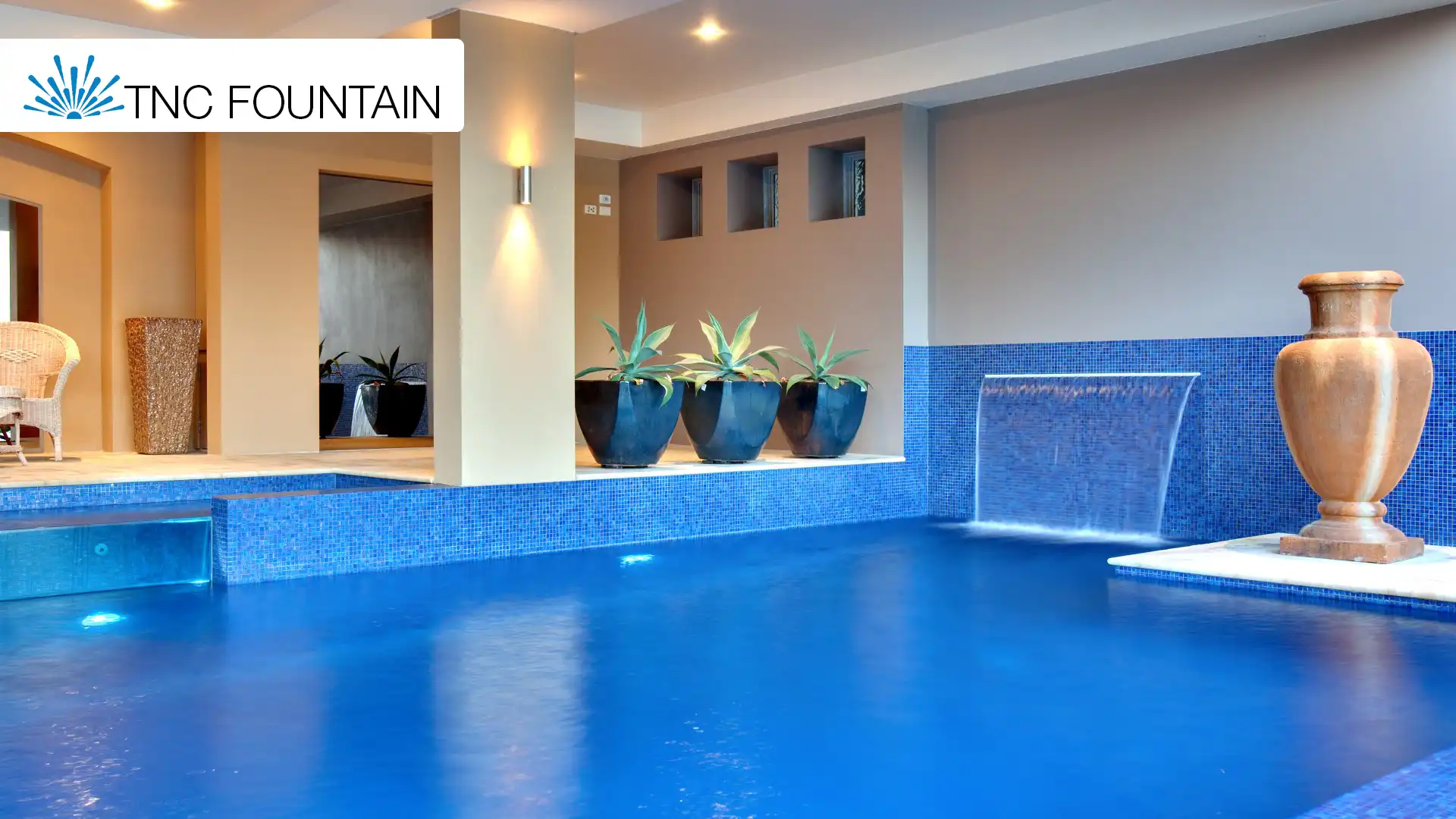

Waterfall Fountain
The nozzle selection process for Outdoor Waterfall Fountain, however, presents a simplex variety of models. Our approach at TNC Company centers on collating perfect technical specifications so that every waterfall nozzle maintains uniform flow and virtually sound performance, meeting industry’s highest standards of visual beauty and functional hydraulics. Little wonder that waterfall nozzles have come by being the first choice in the solution for Outdoor Water Fountains.
Critical Material Selection for a Lasting Water Feature
Most importantly, construction material and placement strategy were used as the major determinant on which the future success of any Outdoor Waterfall Fountain depended. It was important to select the right alloy in order to obtain long service life and reliability because water was in constant flooding over it:
Best-recommended materials:
Stainless Steel (100% corrosion resistant):
304 Grade: Best for standard, general application to freshwater.
316 Grade: Best for saltwater, chemically treated environments (pools) or coastal areas.
Avoid (Risk of Corrosion Failure):
Iron Sheets: Fail rapidly and totally to corrode.
Galvanized Sheets: The zinc coating for protection fails quickly in environments with circulating water.
Design and Technical Constraints: The Maximum Height Policy
Physical limitations need to be incorporated into the architectural design phase itself directly for optimised performance – especially, for perfect, seamless water curtain.
Critical Height Guidelines:
Exceeding the following maximum height limitations causes the water stream to lose its laminar form, resulting in undesirable droplet or rain patterns:
| Nozzle Type | Maximum Recommended Height | Effect Above Limit |
| Small Nozzles (< 60cm width) | 70 cm | Water forms triangular patterns. |
| Large Nozzles (> 60cm width) | 120 cm | Water breaks out into rain-like droplets. |
Note: The 120 cm maximum ensures perfect curtain integrity regardless of the nozzle’s width.
Performance Parameters and Installation Environments
Every Waterfall Fountain would remain useful only under controlled conditions, where the outdoor waterfall fountain would perform consistently.
H3: Core Performance and Design Specifications
Basic parameters for effective specification and operation are as follows:
Flow Rate: Range of 15–25 L/min per linear meter of nozzle width.
Operating Pressure: Recommended range of 1.5–2.5 bar.
Available Lengths: Standard lengths from 30–200 cm.
Finish Options: Available in Brushed or Polished Stainless Steel for compatibility with architectural material palette in adjacent areas.
Ideal Installation Environments:
The versatility of the Outdoor Waterfall Fountain allows it to be specified for various high-end settings:
Villa courts and private lands.
By pools and spas.
Public and private businesses in open spaces.
Note for Indoor Adoptions: Always ok, but the design should involve special splash containment measures (deep basins, creative air baffling) planways for accidents with indoor water damage.
Top Professional Benefits and Best Practices
Such physical restraints and corresponding performance characteristics must be incorporated into all architectural systems to avoid costly execution pitfalls and ensure satisfaction from clients.
H3: Advantages of a High-Quality Outdoor Waterfall Fountain System
Specifying a TNC system is honed for architects at:
Inbuilt Flow Stabilizer: Keeps flow smooth and laminar from one end to another.
Construction Material: Corrosion-resistant, ensures longevity using S/S 304/316 alloy.
Flow Rate Consistent Water Curtain: Height criteria considerations give reliable performance.
Flexible Installation Solutions: Adjustments for different types of wall material and condition in structures.
Professional Tip: Always ensure that this natural behavior of water in your design phase-through surface tension and height limits-is well understood and incorporated into the design of the Outdoor Waterfall Fountain or other complex Water Features to derive the best visual and aural effects. In the case of a configuration that falls short of these standard parameters, a specialist should be consulted.
Next Steps: Consultation Specific to Project Needs
For the specific design of your Outdoor Water Fountains project to meet the critical 70cm/120cm height limits and for expert consultation on adjusting flow rates and the right stainless steel alloys for your project, contact our engineering team.

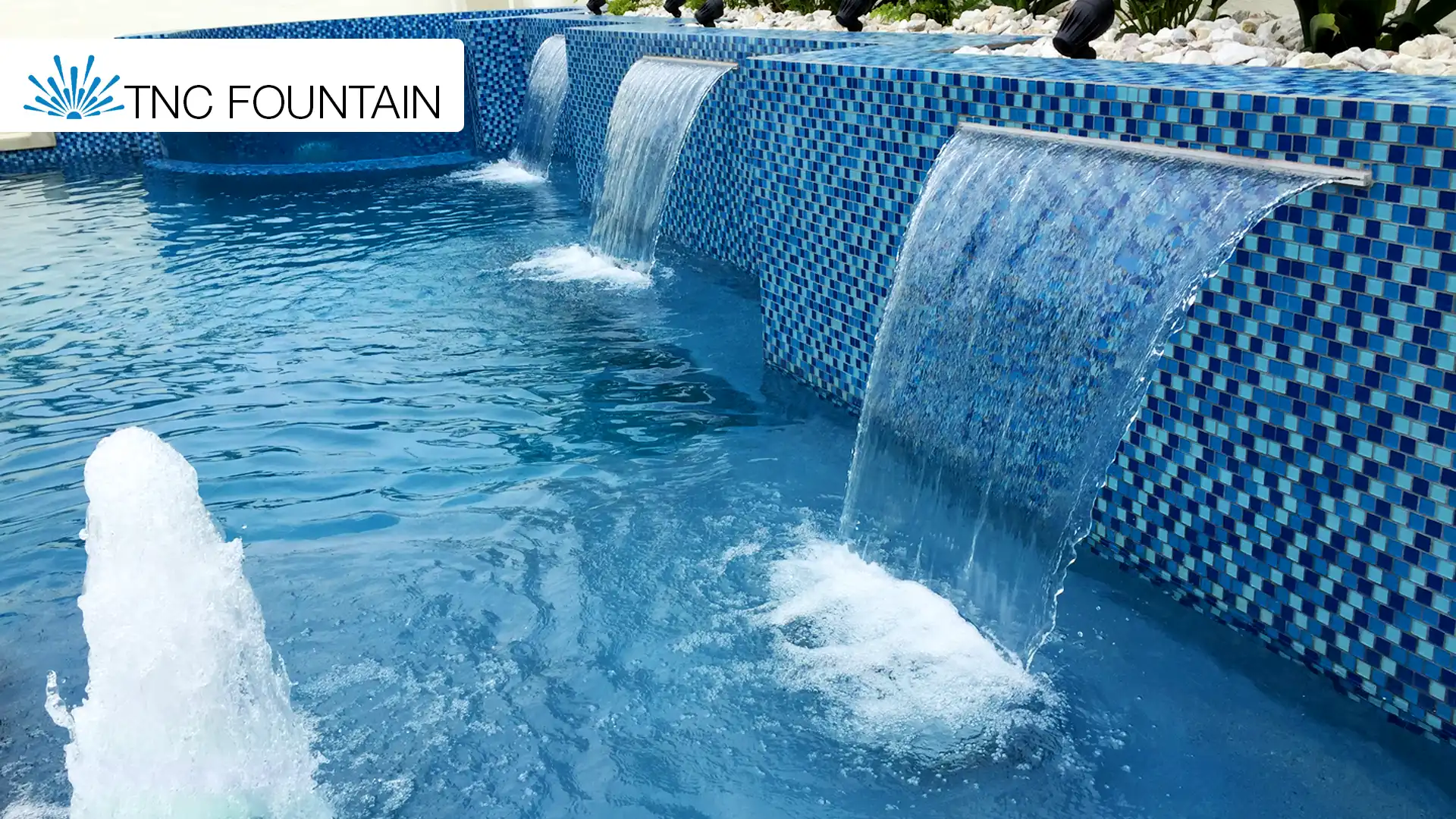

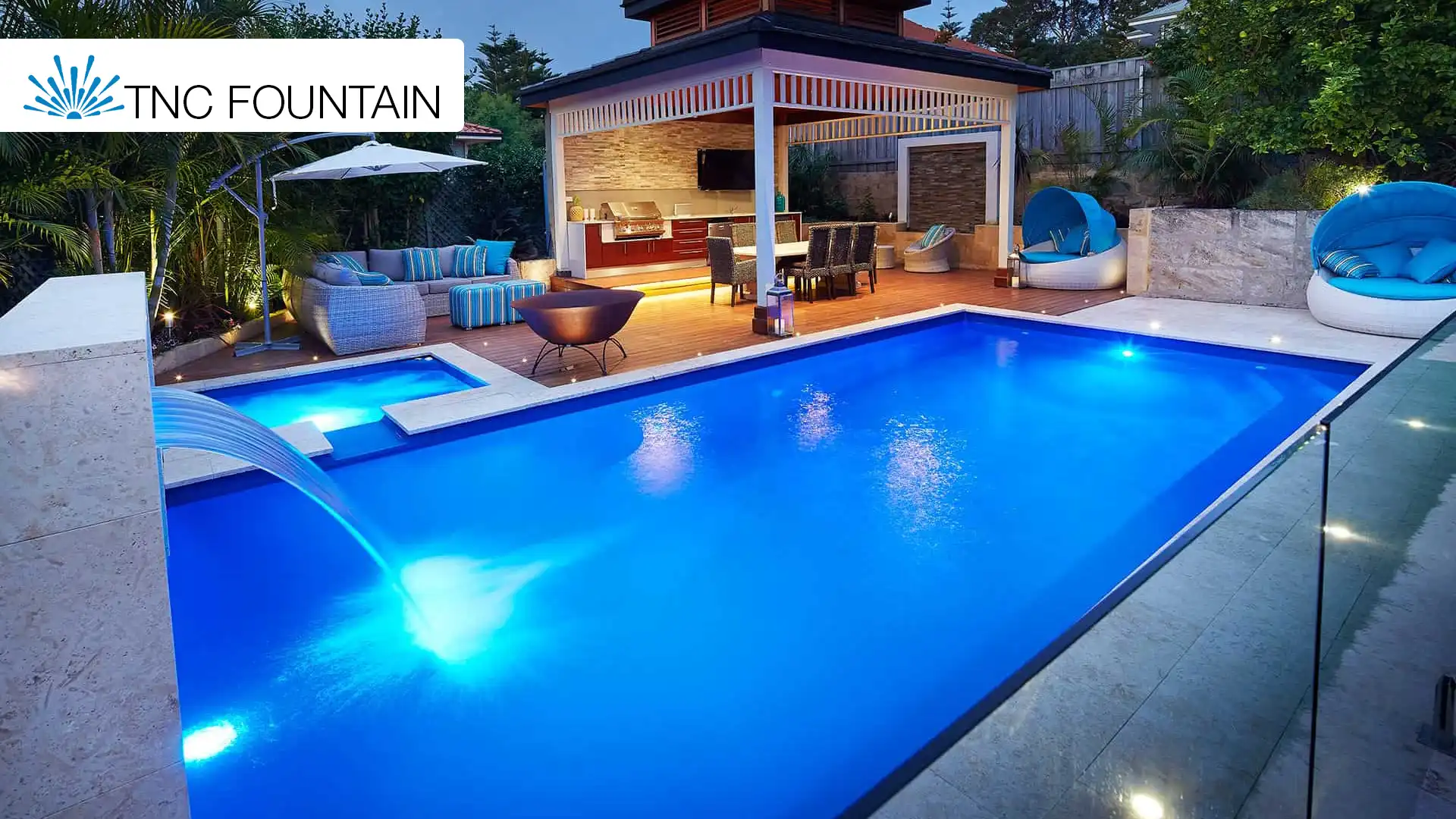

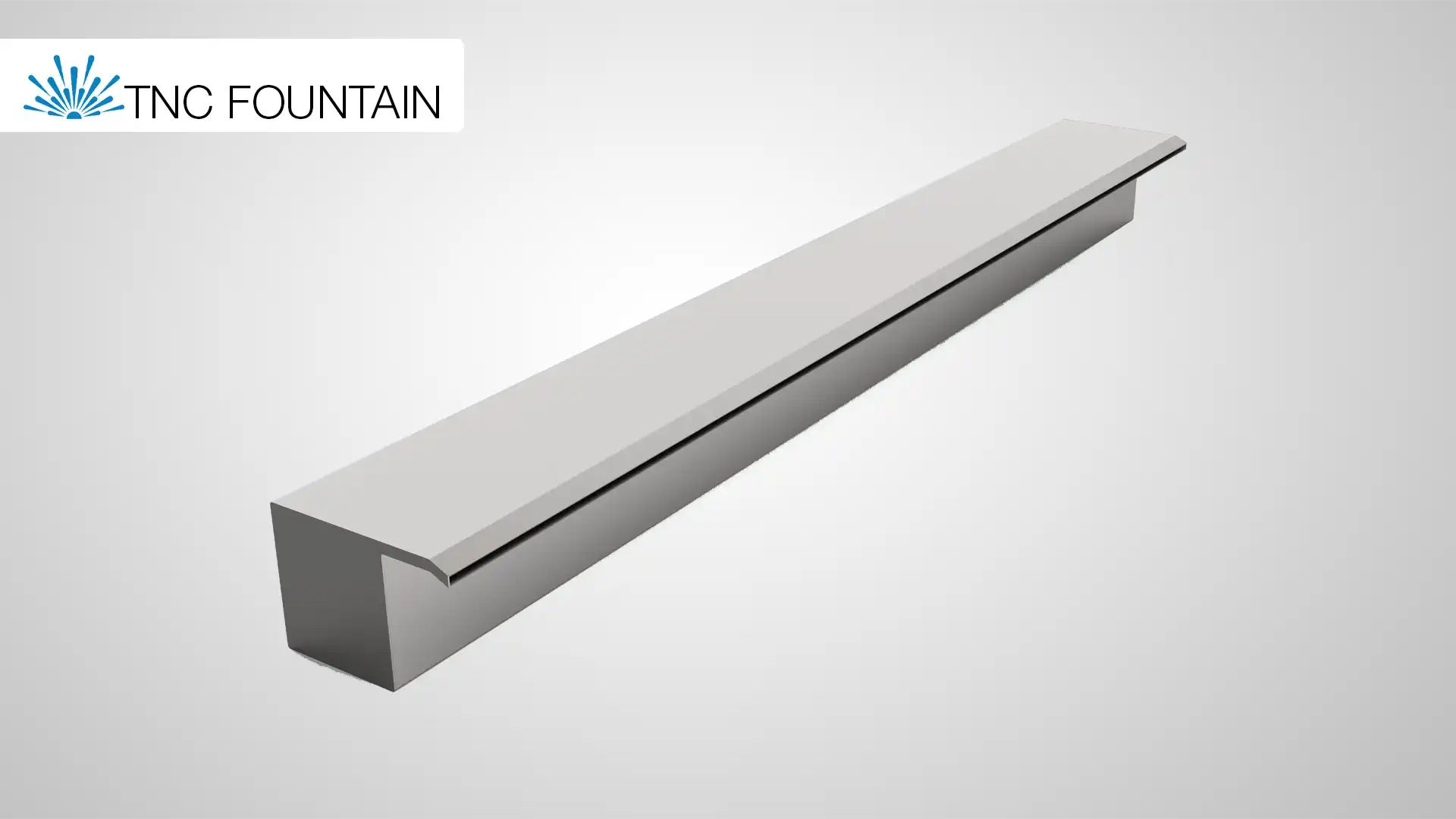

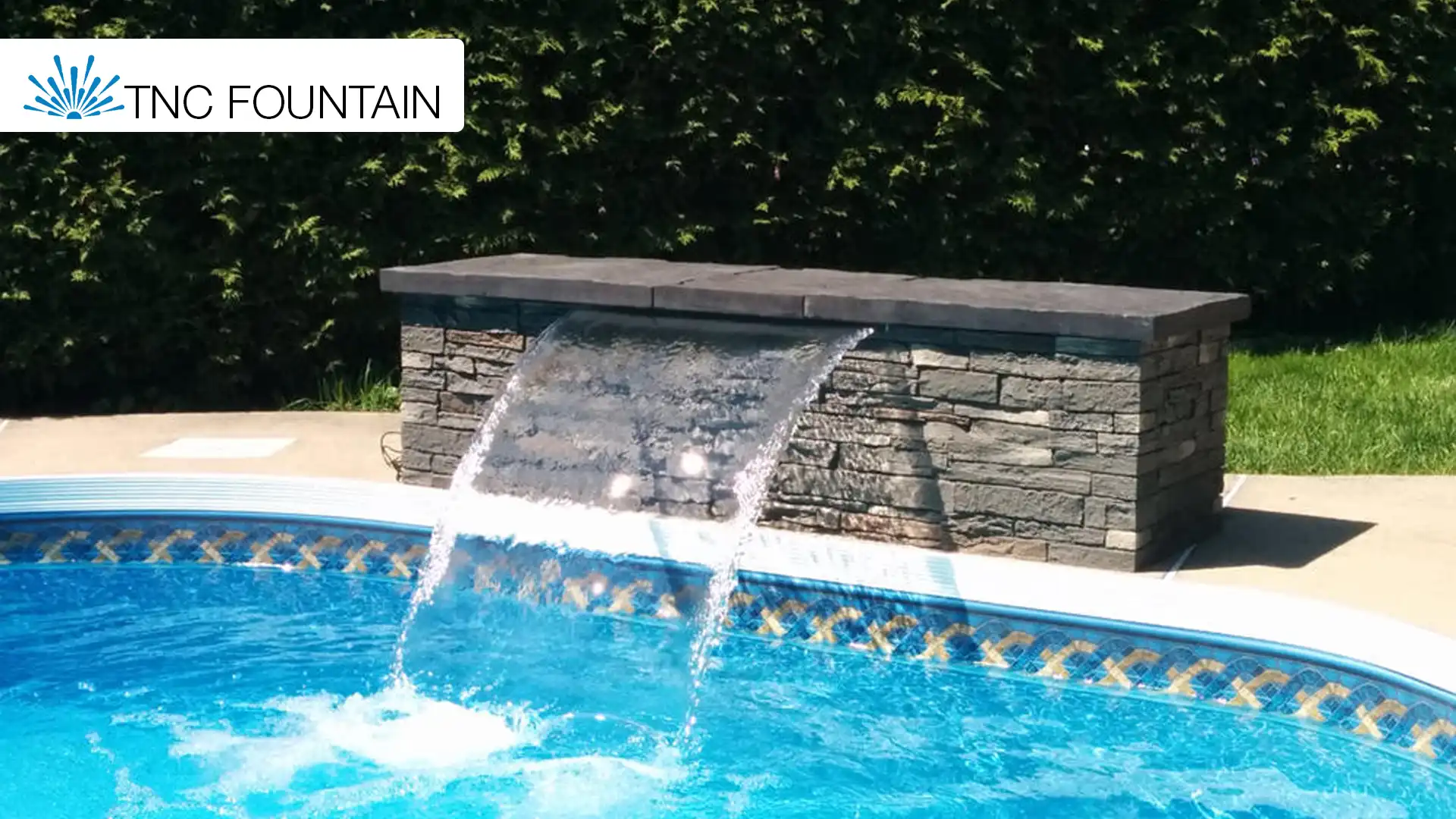

Shooter Waterfall Fountain
The Outdoor Shooter Waterfall Fountain is designed and built to meet the high specifications set by landscape architects and designers, creating a spectacular effect in precisely projecting water curtains from vertical surfaces – no small feat achieving powerful throws of water. Concentrated coursing high-pressure streams barfing out as far as 50 cm forward add to the already long accolades for ceremony made the best choice for a design that needs coverage, however critical, across a space between a retaining wall and that at the edge of a pool or basin.
It stands conspicuously as an Outdoor Water Fountains offering at once an aesthetic drama as well as technical precision.
Technical Highlights and Performance Advantages
The integrity of the system refers to its ability to hold laminar flow under pressure as well as its resistance to environmental factors:
Forward Projection: Achievements by means of very accurate throw of water up to 50 cm dramatic maximum.
High-Pressure Curtain: A constant and continuous flow that contributes to a good sheet of water.
Construction: Made from 304 Stainless Steel for very strong corrosion resistance and long-term durability in the outdoors.
Stabilization: Built-in stabilization system with damping devices ensuring a smooth, uninterrupted flow.
Wind Resistance: Assure reliability of performance even with low conditions of wind.
Scalability: Offer Multiple Size Options, custom-sized for every project scale.
The Ultimate Guide to the Outdoor Shooter Waterfall Fountain System
The Outdoor Shooter Waterfall Fountain is crowned as the best in contemporary Water Feature design, giving you an exciting, precise sheet of water to light up your upscale landscape. The guide contains critical technical information, design compatibility, and performance authority, thus marking it as the dominant option for specifying architects and professional landscapers.
Core Technical Specifications and Advanced Turbulence Control
The precision of this is due to the quality materials and proprietary internal mechanics.
Material: Construction from 304 stainless steel (by means of rigid 2 mm thickness).
Operating Pressure: The recommended range for optimal sheet formation through flow is 0.5—1 bar.
Projection Distance: Reliable performance for a maximum of up to 50 cm clean throw distance.
Flow Stabilization: Uses an integrated turbulence reduction system within the nozzle body.
Maximum Pressure Tolerance: Designed to safely handle a maximum pressure of 1.5 bar.
Maintenance Protocol: Requires semi-annual cleaning only.
Advanced Turbulence Control Technology
The internal stabilization system is the most essential component of the Outdoor Shooter Waterfall Fountain, and which gives it its exceptional performance:
Vibration Reduction: Actively reduces vibrations of water flow to maintain perfectly smooth effect.
Uniformity: Keeps sustained pressure, ensuring a seamless and uniform water sheet.
Steady Output: Guarantees a stable, visibly smooth water curtain output.
Fluctuation Handling: Handles moderate pump fluctuations efficiently for consistent, flawless operation.
Endurance, Design Integration and Professional Use
Designed for maximum durability and integration into high-end architectural projects, the Outdoor Shooter Waterfall Fountain possess.
Construction and Maintenance Mandates
Material Durability: Defined by the Corrosion-resistant 304 stainless steel construction.
Structural Integrity: Features a Reinforced structural design engineered for exceptional longevity.
Biannual edge cleaning (to prevent mineral buildup).
Removal of sediment from the interior of the system.
Strongly recommended for continuous, high-quality filtration of water.
Ideal Applications for This Water Feature
The precision and projection capacity of the Outdoor Shooter Waterfall Fountain made it truly possible to realize certain exceptional applications:
Architectural Water Features in public and private high-profile spaces.
Landscape designs where precise water projection is non-negotiable.
Pool edge installations requiring a visually seamless transition.
Projects specifically involving unique wall-to-pool gaps.
Contemporary urban spaces and commercial plazas demanding high-impact Outdoor Water Fountains.
Professional Installation and Configuration
For optimized performance, professional hydraulics come into play:
Professional water connection is required to maximize laminar flow performance.
Works seamlessly with standard high-performance filtration systems.
The most common dedicated pump setups are compatible.
For optimum performance and proper configuration of your Outdoor Shooter Waterfall Fountain, contact our technical team for assistance with:
Size customization for your architectural specifications.
Professional guidance on lighting integration for night aesthetics.
Detailed project-specific flow configurations and recommendations.
Next Steps: Getting Precision and Longevity
To get hydraulic calculations or details on projection distance and longevity needed in your outdoor installation of the Outdoor Shooter Waterfall Fountain, speak to our engineering specialists now.

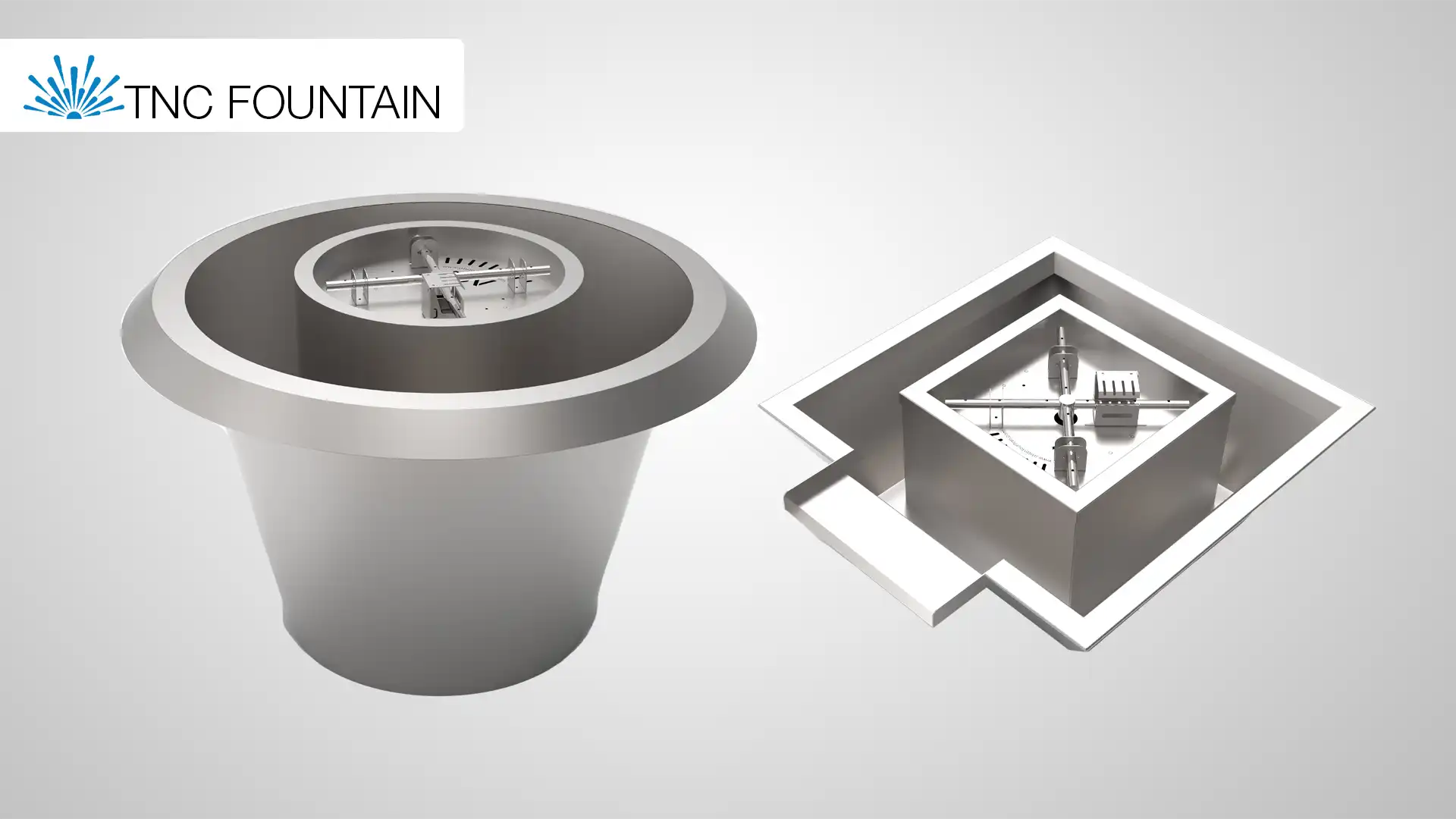

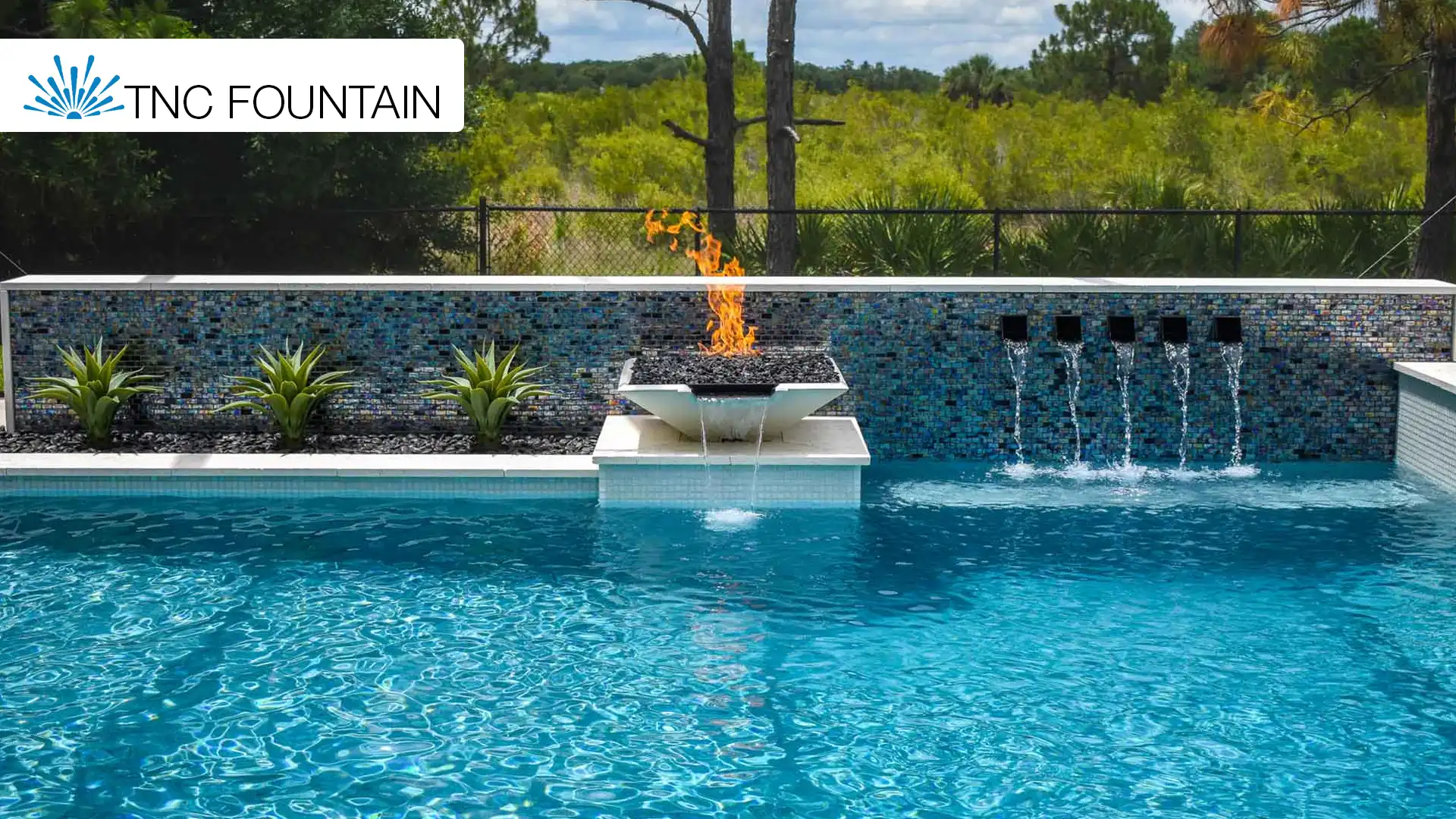

Fire and Water Fountain
The outdoor fire and water fountain is one of the newest, most ingenious, and wonderful innovations in Outdoor Water features for luxury homes or poolside installations. This one-of-a-kind, high drama outdoor fountain is engineered to combine, at once, the opposing elements of water and fire to produce visual effects so breathtaking that any landscape becomes a wonderful and powerful focal point.
Technical Pre-Requisites and Key Features of the Water Features
The complexity of the Water Feature requires a proper pipe system for it to correctly perform its function:
Water Supply: Needs a dedicated pipe, which is generally from 1 to 2 inches depending on the model and flow rate.
Gas Connection: Needs a safe connection to City gas lines or equivalent LP source.
Power Supply: Works using a standard household electricity supply.
Essential Characteristics of Design and Function:
Design Flexibility: Available both in elegant square and circular design options.
Durability: Made from durable 304 stainless steel for excellent corrosion protection as well as outdoor resilience.
Safety Control: Equipped with an intelligent fire pit system that incorporates advanced safety sensors.
Convenience: This feature allows remote and simplified operations via remote control or integrated smartphone connectivity.
Weather Resilience: Fully weather-resistant design includes guarantees for protection and performance against wind and rain.
A Detailed Guide to Outdoor Fire and Water Fountain Types
The outdoor fire and water fountain contains numerous features that distinguish it from all normal analogs. It is going to discuss the key issues that rate it as the top candidate among any extravagant open-air space, shapes, and material as well as advanced operational technologies.
Which Shape Is Better: Square or Round Outdoor Fire and Water Fountain?
Generally, TNC Company manufacturers two models of the Outdoor Fire and Water Fountain: a square model and a round model. Each of these geometric configurations has unique individual uses that make it applicable for beautifying villas, large expanses of green, rooftop gardens, or prestigious entrance to buildings.

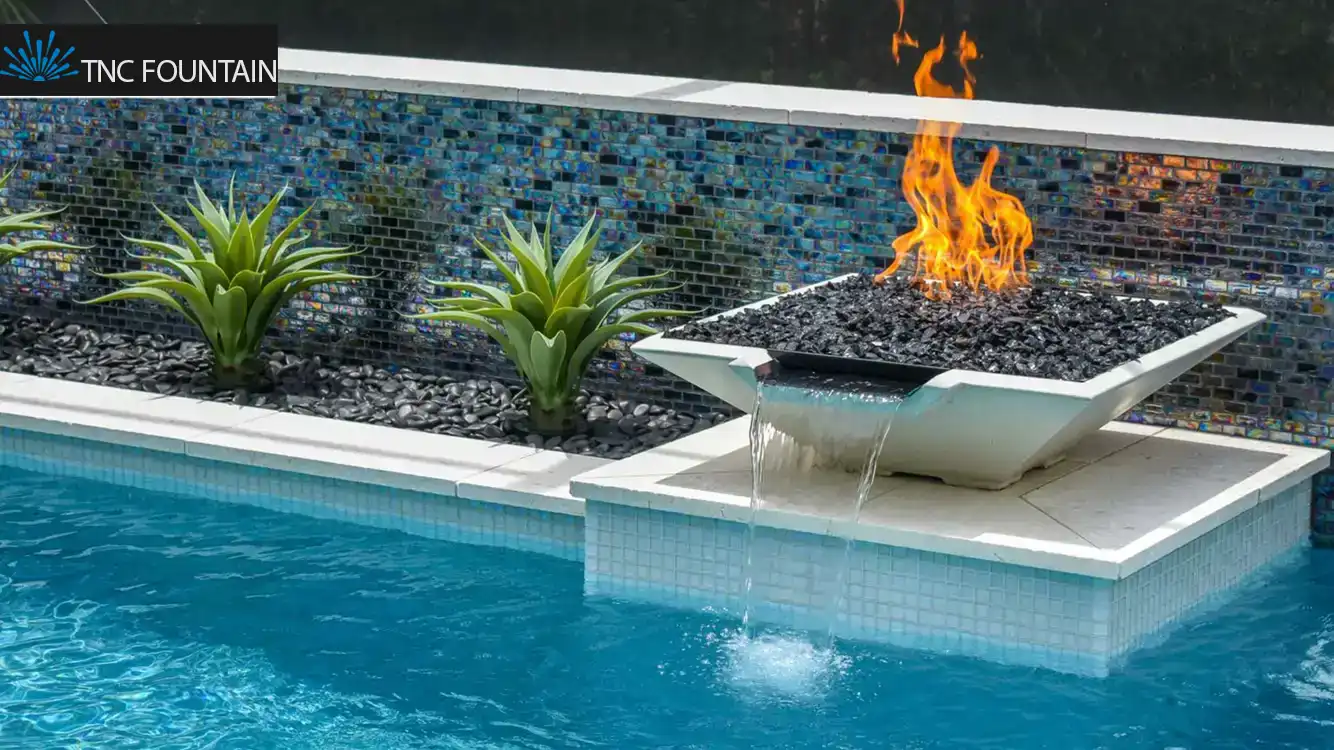

Square Outdoor Fire and Water Fountain
Normal Usage: This is one of those among its most common applications positioned along edges of outdoor swimming pools or other large water bodies.
Flow Options: Built either with a single-sided water flow (ideal for alignment along a pool edge) or as completely customizable four-sided flow.
Installation: The single-flow models are either installed one-by-one or in clusters of two to four along the perimeter of a pool or pond.
Available Sizes: Two standard square dimensions available: 60 cm and 80 cm per side. The square profile imparts a modern, linear aesthetic to the Water Feature.

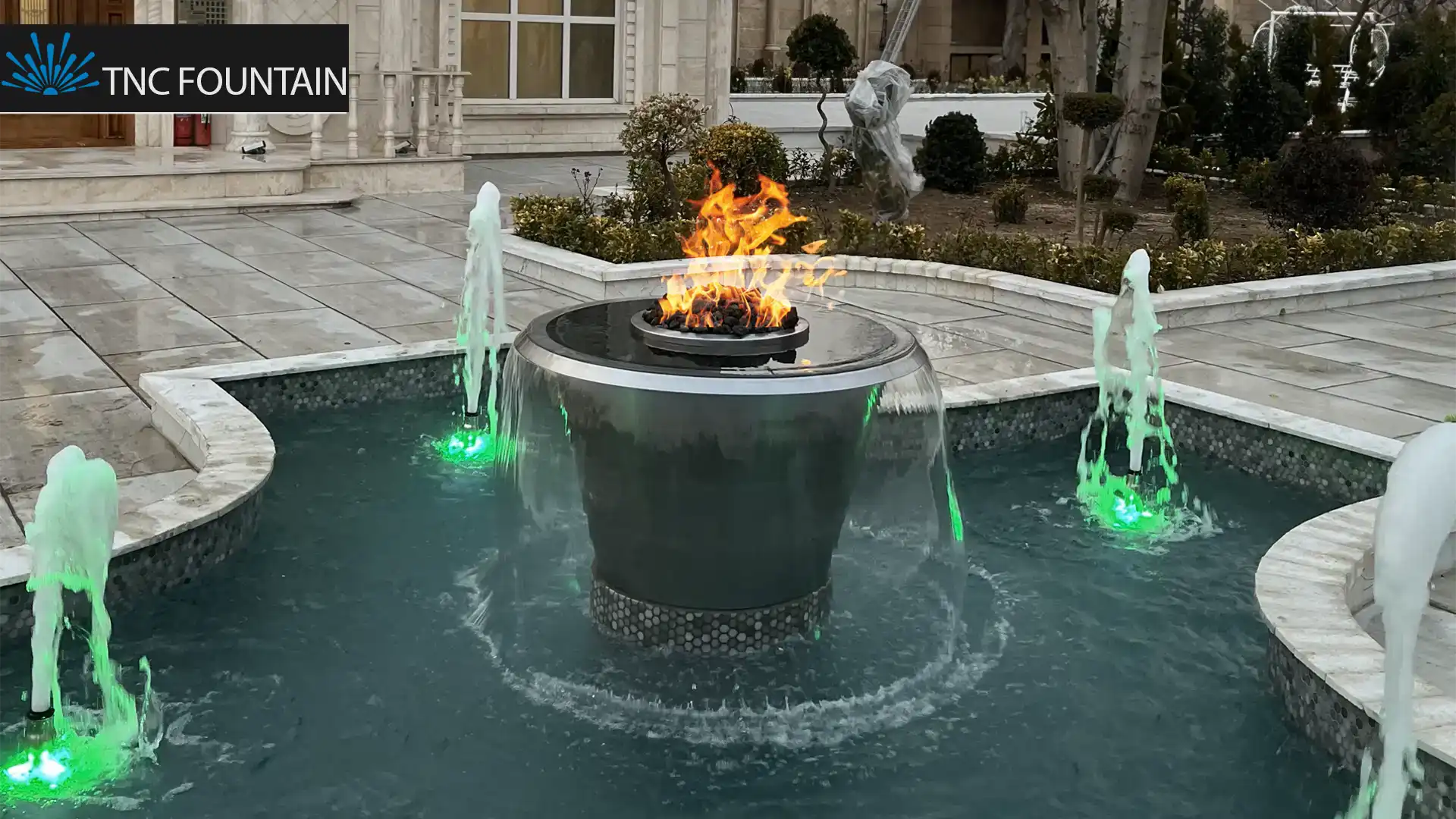

Round Outdoor Fire and Water Fountain
Flow Dynamics: It has a homogenous and graceful laminar water curtain cascades uniformly from its outer edge into its receiving basin or pond below.
Placement: It is positioned most often at the center of a Water Feature or pond.
Acoustics: The internal vibration-damping system that-coontains, therefore, efforts in reduction splashing sounds, contributing to a quieter-and-more peaceful environment.
Ideal Setting: Thusly, it very well could be the best place to install at the center of a gazebo, pergola, or quite quiet seating area.
Technical Integrity and Intelligent Safety
Operating with both fire and water at the same time makes manual on and off impractical. Therefore, while handling all those complexities of the outdoor fire and water fountains, people need nothing more than a very reliable remote control and smart system for an easy management of this Water Feature.
The Worthy Alloy for Resilience Outdoors:
The alloy is Stainless Steel 304 because, as space is identified for the operation of the product, it can qualify as very corrosive-and-harsh above conditions. The appreciable corrosion resistance that this alloy offers against water and rust, along with its ability to weather atmospheric conditions, makes it the most sought-after and appropriate material for such special outdoor installations.
The Smart Gas Burner System:
The intelligent gas burner system is composed of several critical components: a sensor, an automatic igniter, a remote control unit, and a centralized smart control box. The system ensures safe operation through a sophisticated sequence:
Connection: The intelligent box adapter is plugged into a source of power.
Activation: Ignition occurs through the remote activation of the igniter.
Automatic Operation: Systematic method once the flame has been lit successfully – Putting it in automatic mode.
Safety Protocol: Flame will be extinguished by external factors (eg strong wind or rain), upon which the system shall automatically attempt to reignite. If reignition fails within a critical 10-second window, the smart box’s solenoid valve immediately cuts off the gas supply, ensuring a definitive and safe shutdown.
Water Circulation System Variability:
The design of the plumbing and water supply system depends on the model, size, and location of the installation:
Poolside installation: This type of installation would require a dedicated pipe that draws water directly from its pool’s main pump room.
Other set-ups: Circulation can be managed from either a submersible pump (located inside the pond/basin) or a dry pump (located in a separate, dedicated pump room).
Pipe Sizing: For the square Outdoor Fire and Water Fountain, generally a 1-inch pipe is required, whereas the round model is usually fitted with a larger 1.5- or 2-inch pipe that should provide for a more successful laminar flow performance.
Next Steps: Complete Specification of Your Water Feature with Dual Elements
Consult our installation drawings or the design integration team to ensure compatibility of gas, water, and electrical services with your chosen Outdoor Fire and Water Fountain.

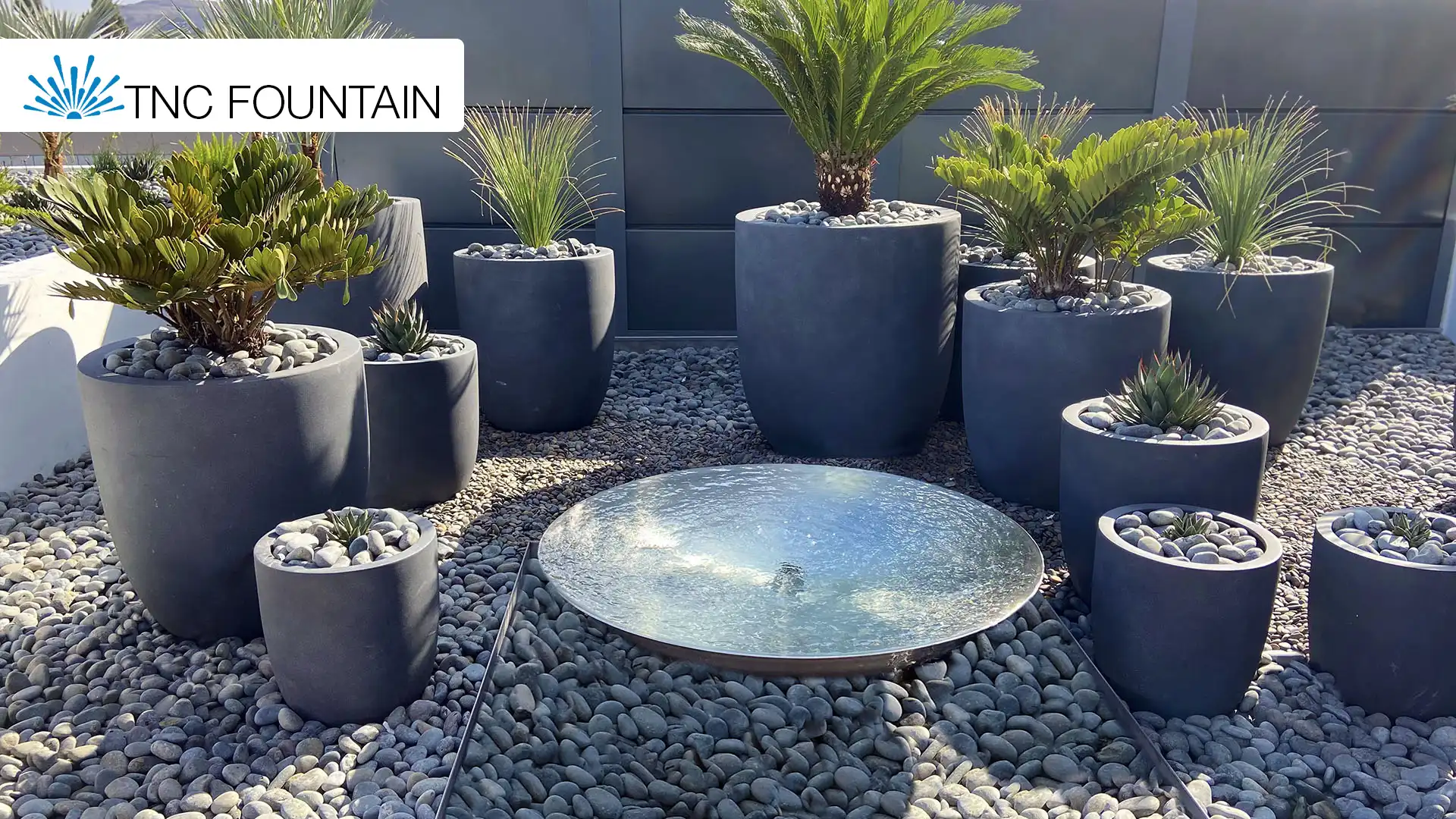

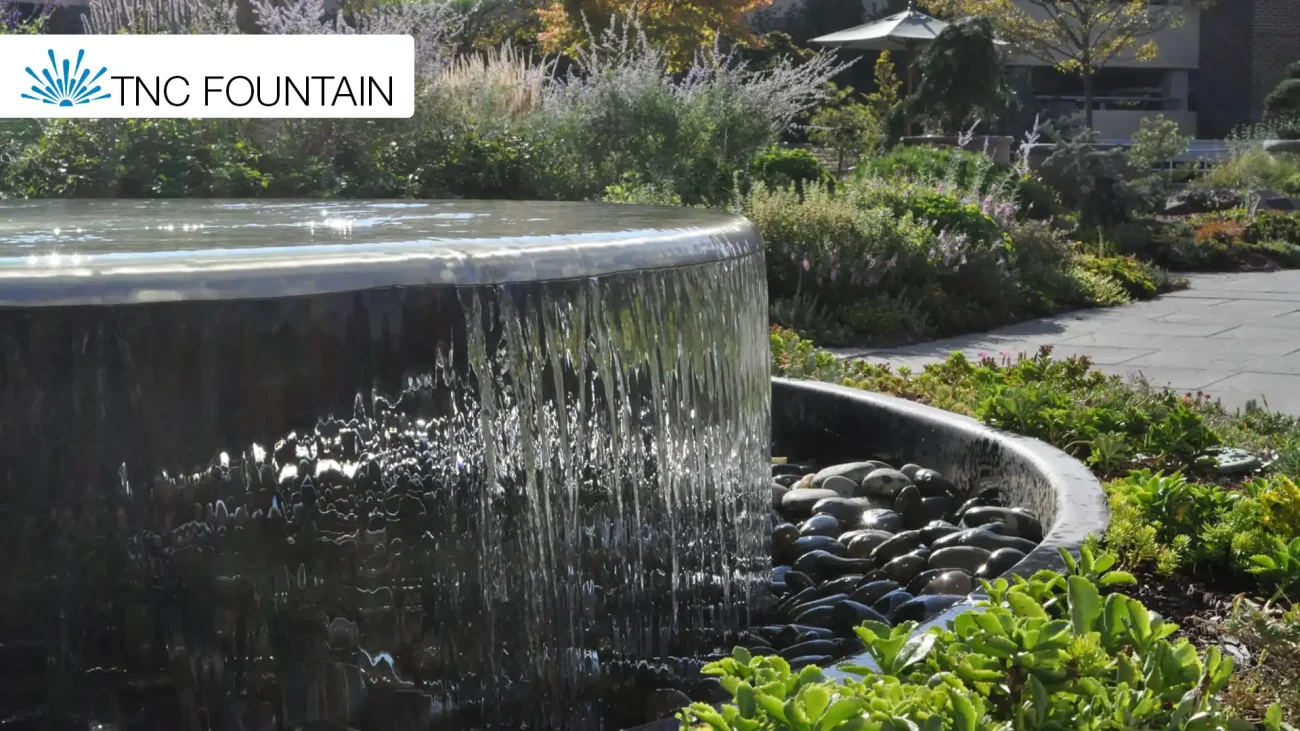

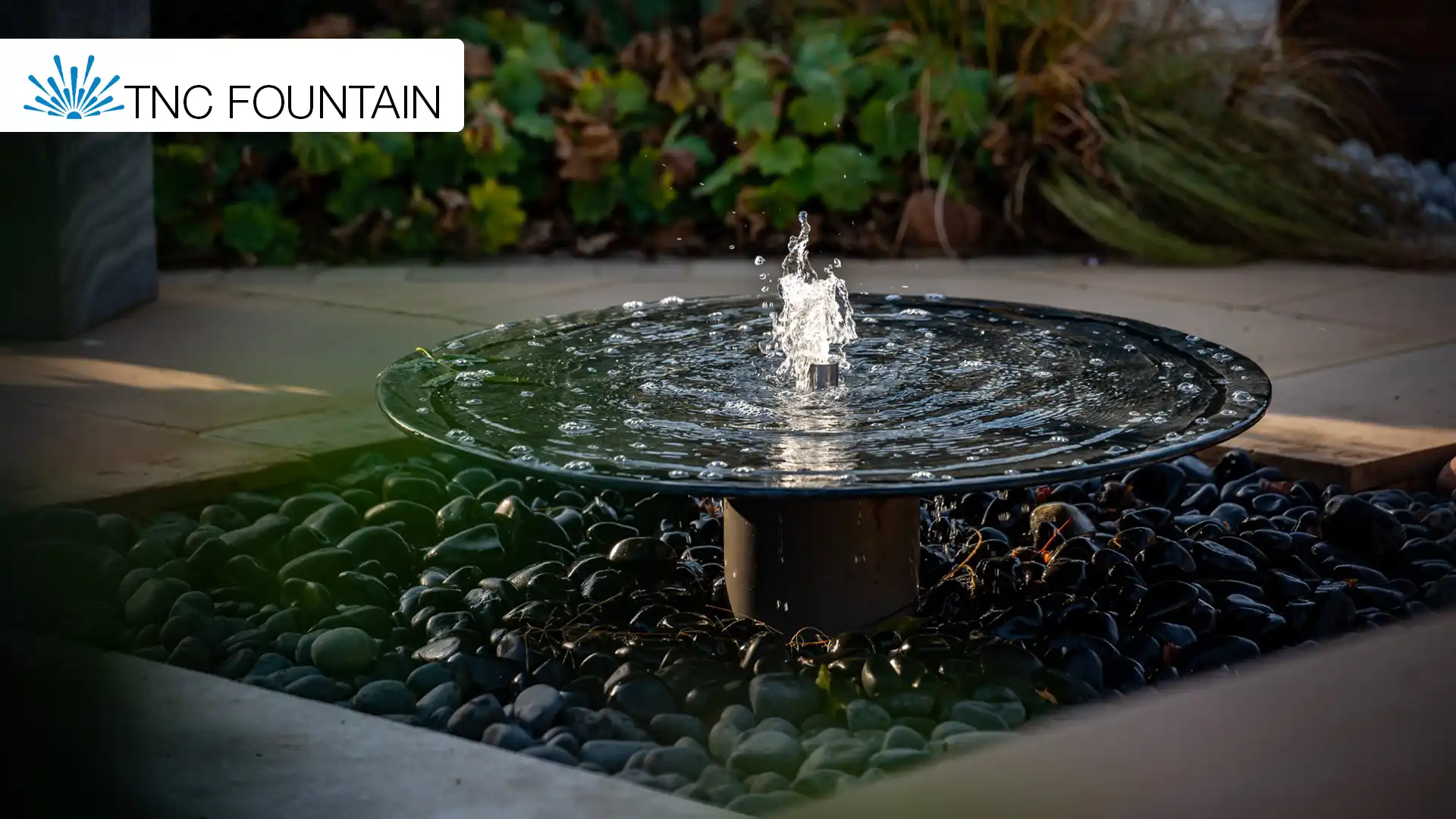

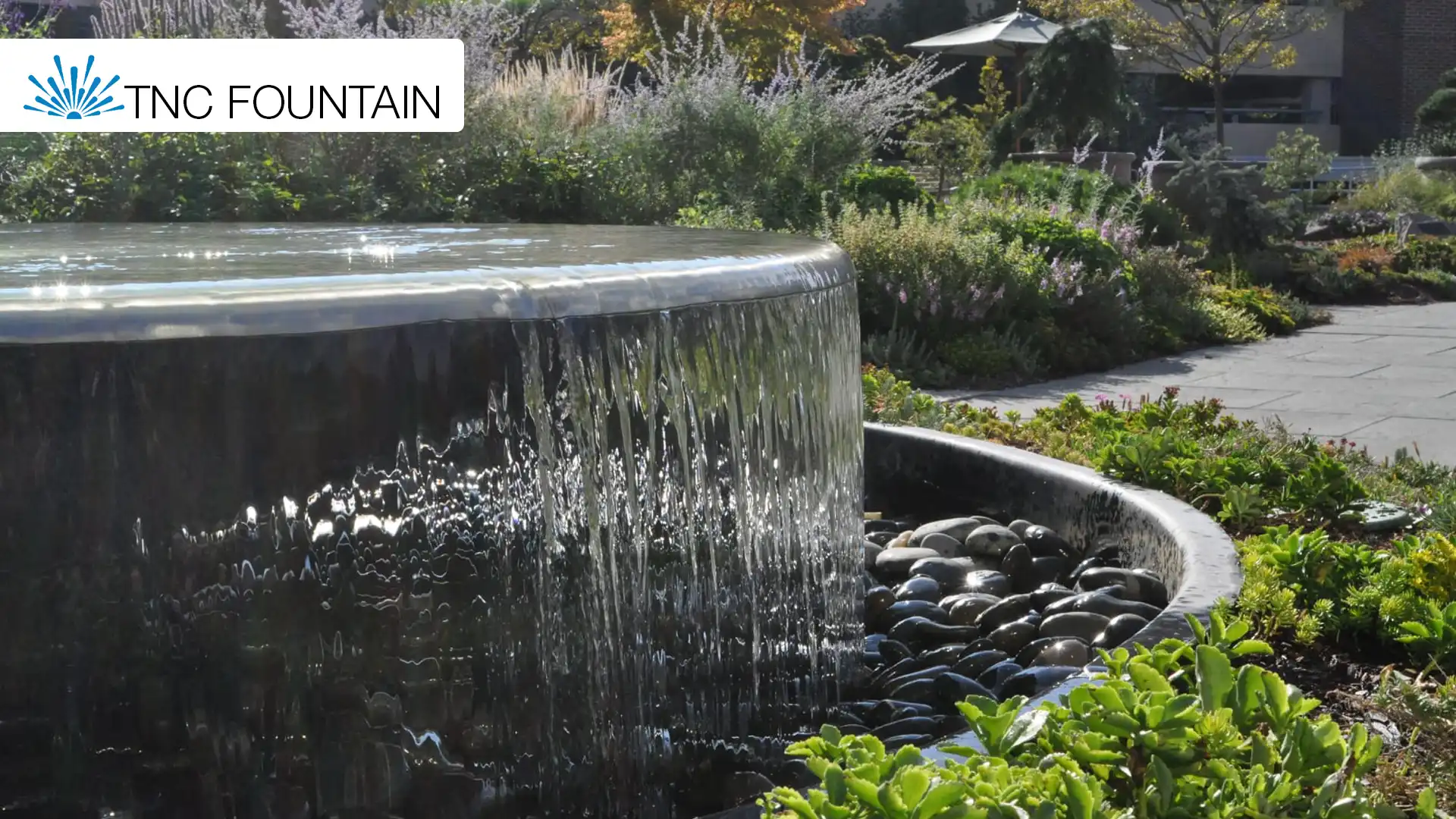

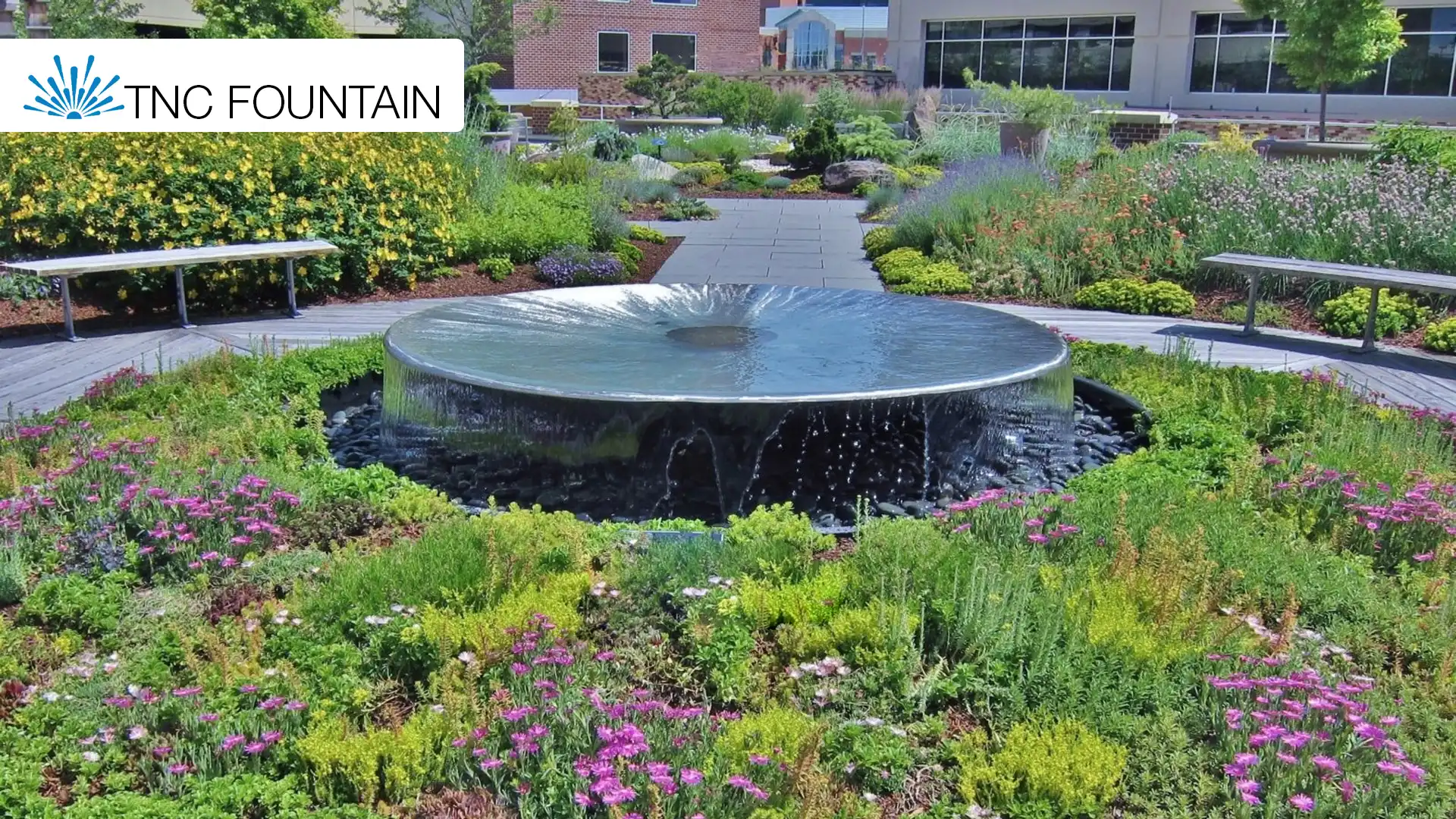

Outdoor Dish Water Feature
The Outdoor Dish Water Feature stands as an exceptionally versatile Water Feature equally suitable for expansive outdoor landscapes as for refined interior designs. Its basic form allows it to function beautifully as a static, reflective element. Alternatively, by forming a central nozzle-such as a cascade nozzle or foam fountain nozzle,- the unit is instantly transformed into an active fountain with dynamic and animated water displays. The fact that the Outdoor Dish Water Feature retains this natural attractiveness along with versatile usage is precisely why it remains an ever-popular, front-line number of the premium Outdoor Water Fountains solutions.
Customization and Essential Installation Requirements
To allow the Outdoor Dish Water Feature to fit seamlessly in any environment, several factors concerning customization and planning need to be addressed quite early in the course of planning by the architect and installer:
A change in height: Depending on the specific installation context, specialized adjustable stainless steel bases are used in several sizes so that the exact height could be achieved as per the design brief.
Visual enhancement: Dedicated fountain lights will enhance its attraction even more at night. Lights can be placed in the following areas to highlight the Outdoor Dish Water Feature:
-
Inside the dish itself.
-
Around the exterior perimeter of the dish.
-
Within the surrounding receiving water basin.
Key Technical Features:
-
Available Sizes: Available in three standard diameters: 50 cm, 100 cm, and 150 cm.
-
All Bases: With an adjustable stainless steel base with multiple stable height options.
-
Material of Construction: Made from the best quality anti-corrosive metals: Stainless Steel 304 & 316.
-
Compatibility: Fully compatible with a vast variety of standard fittings fountain nozzles and professional lights.
Critical Engineering Considerations for the Outdoor Dish Water Feature
Although the Outdoor Dish Water Feature is not demanding a very complex installation procedure, the careful consideration of several critical factors in the design and construction phase shall allow for the successful delivery and longevity of the project.
Material Selection, Basin Design, and Flow Control
In this section, we review the primary technical considerations that delineate a robust, high-performing installation from one beset by problems:
1.Alloy Choice for the Water Feature:
This is a most critical factor that influences the longevity of the system. The dish must be made entirely of stainless steel (S/S 304 or S/S 316 grade) so as to avoid rusting and any long-term corrosion. Rare occasions would find a copper sheet used, but differences in welding and fabrication bring about different cost evaluations.
2. The Receiving Basin Size:
Another essential planning consideration is the sizing of the basin that lies beneath the dish. From the outer edge of the basin there must be at least 50 cm space outward from the outer circumference of the fountain dish on all sides. This buffer is calculated with the express purpose of avoiding any incidental water splash from escaping the basin, thus keeping the surrounding paved or landscaped area dry at all times.
3. Customization of Nozzles and Hydraulics:
The visual and aural display of the Water Feature is fully customizable with a proper choice of nozzles:
-
Dynamic Effects (Outdoor): Use of foam nozzle creating dynamic, highly visible water effects, ideal for Outdoor Water Fountains. Note that this would inherently increase sound and splash radius.
-
Calm Effects (Indoor): A pressure reducer with the right pump would ensure a peaceful, almost placid water surface. It is this arrangement that suits quiet controlled indoor environments (for example, corporate lobbies, luxury shopping centers, and office buildings).
Recommended Environments for Your Outdoor Dish Water Feature
The adaptability of this fountain allows it to be specified in varying settings:
-
Outdoors: Best suited for active nozzles (i.e., cascade or foam) for a big, dramatic water display.
-
Indoors: Best suited for controlled low-flow movement with a calm, splash-free reflective effect.
Frequently Asked Questions on Dish Fountain Dynamics
1. Does the Dish Water Feature Deliver Perfectly Even Water Flow?
No, not inherently. Making perfectly even water flow seen for example on a sheet fountain would also require the complete damping of pump-induced vibrations, which is also quite a relevant technical challenge to achieve in shallow dish-style installations. Therefore, architects should expect that water would almost always flow a tad bit unevenly toward the edge of the dish, making for an aesthetic that looks naturally organic rather than an applied rigid sense of engineering.
2. Is a Standard Nozzle Required for a Small Central Water Bubble?
A cascade nozzle is usually specified to bubble or aerate effect, however, this nozzle type must be completely submerged to work properly. Due to the fact that dry dish fountains have a shallow water depth, this nozzle frequently operates inefficiently. Instead, the desired bubbling effect can be totally accomplished by careful regulation of the water outlet at the base of the dish itself.
Next Steps: Precision Sizing and Technical Review
For the correct sizing of the receiving basin (mandatory 50 cm radius extension) and confirmation of the optimal S/S alloy selection for your specific environment, consult our technical sales team today.

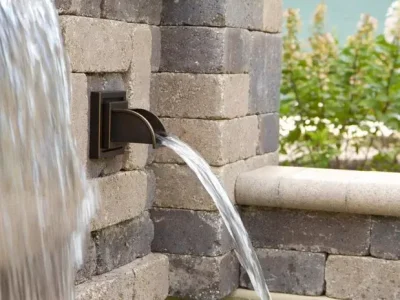

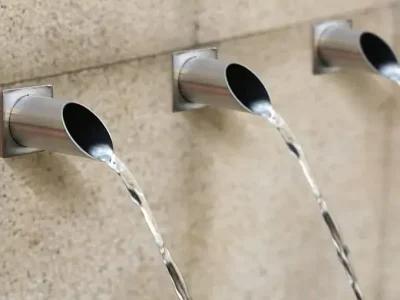

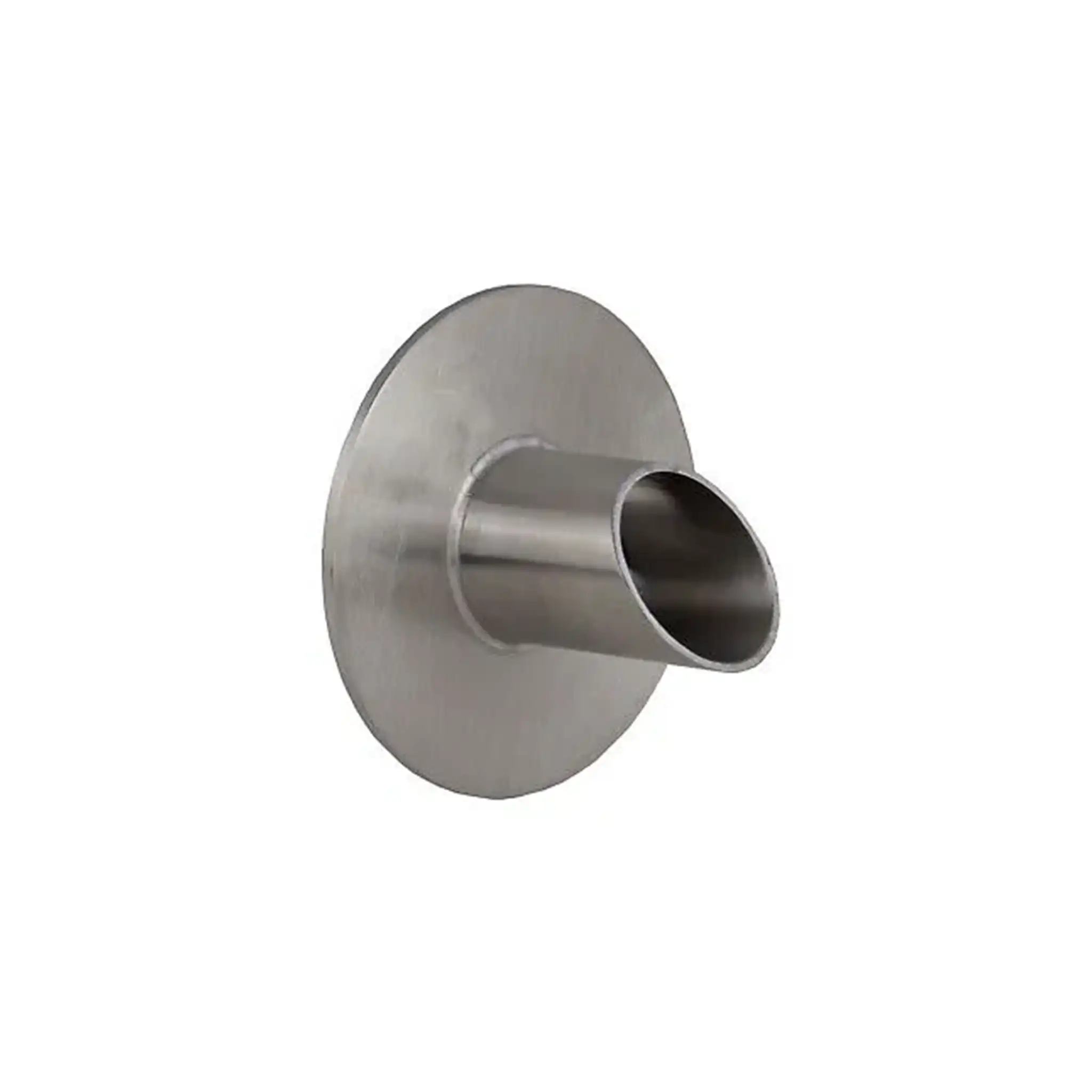

Steel Neyriz Water Fountain
The Steel Neyriz Water Fountain is a decorative and ornamental wall fountain system designed and manufactured as a complete package, suitable for installation in both indoor and outdoor spaces. This wall fountain features a series of water outlets mounted at varying heights, directing water flow from the top into a basin at the base, creating a mesmerizing visual effect.
Ideal for landscaping gardens, rooftop gardens (roof gardens), modern courtyards, and even interior décor, the Steel Neyriz Water Fountain not only enhances aesthetic appeal but also brings a refreshing ambiance to any environment.
Key Features:
High resistance to wind and environmental conditions
Made of durable, rust-proof 304 stainless steel
Modular design for standalone or grouped installations
Compatible with modern architecture and green spaces
Low energy consumption due to efficient circulation pumps
Customizable in size and nozzle count per project requirements
Discover the Steel Neyriz Water Fountain: A Masterpiece of Minimalist Water Design
For those who appreciate the perfect balance of contemporary minimalism and classical elegance, the Steel Neyriz Water Fountain offers an exquisite water feature solution that transforms any space into a work of art.
The Steel Neyriz Water Fountain Difference:
Elegant Single-Stream Design: A precisely engineered water flow that creates a captivating visual effect
Modular Flexibility: Install as a standalone piece or create breathtaking group installations
Premium 304 Steel Construction: Built to last with superior corrosion resistance, making this Steel Neyriz Water Fountain a durable choice.
Adaptable Performance: Optional water calming box for perfect flow control
Two Distinct Models of the Neyriz Water Fountain:
Classic Neyriz Fountain:
Sleek cylindrical design with integrated vibration damping
Perfect for creating water walls and artistic installations
Wall-Mounted Water Channel:
Contemporary square profile with sheet waterfall effect
Ideal for modern architectural applications
Designed for Sophisticated Spaces:
Luxury residential entrances
High-end commercial properties
Premium hospitality environments
Landscape architecture projects
Technical Excellence Meets Design Flexibility:
Comprehensive technical specifications available
Detailed installation guides provided
Custom configuration consulting
Investment Value:
Competitive pricing for exceptional quality
Low maintenance requirements
Long-lasting durability
Professional Recommendation:
While ideal for outdoor applications, interior installations of the Steel Neyriz Water Fountain require careful planning to manage water dispersion. Our design team can provide expert guidance for challenging spaces.
Take the Next Step:
Contact our water feature specialists today to discuss how the Neyriz Fountain can elevate your project. Request our complete product portfolio and technical package for detailed specifications.
Steel Neyriz Water Fountain: Where Precision Engineering Meets Timeless Water Artistry.

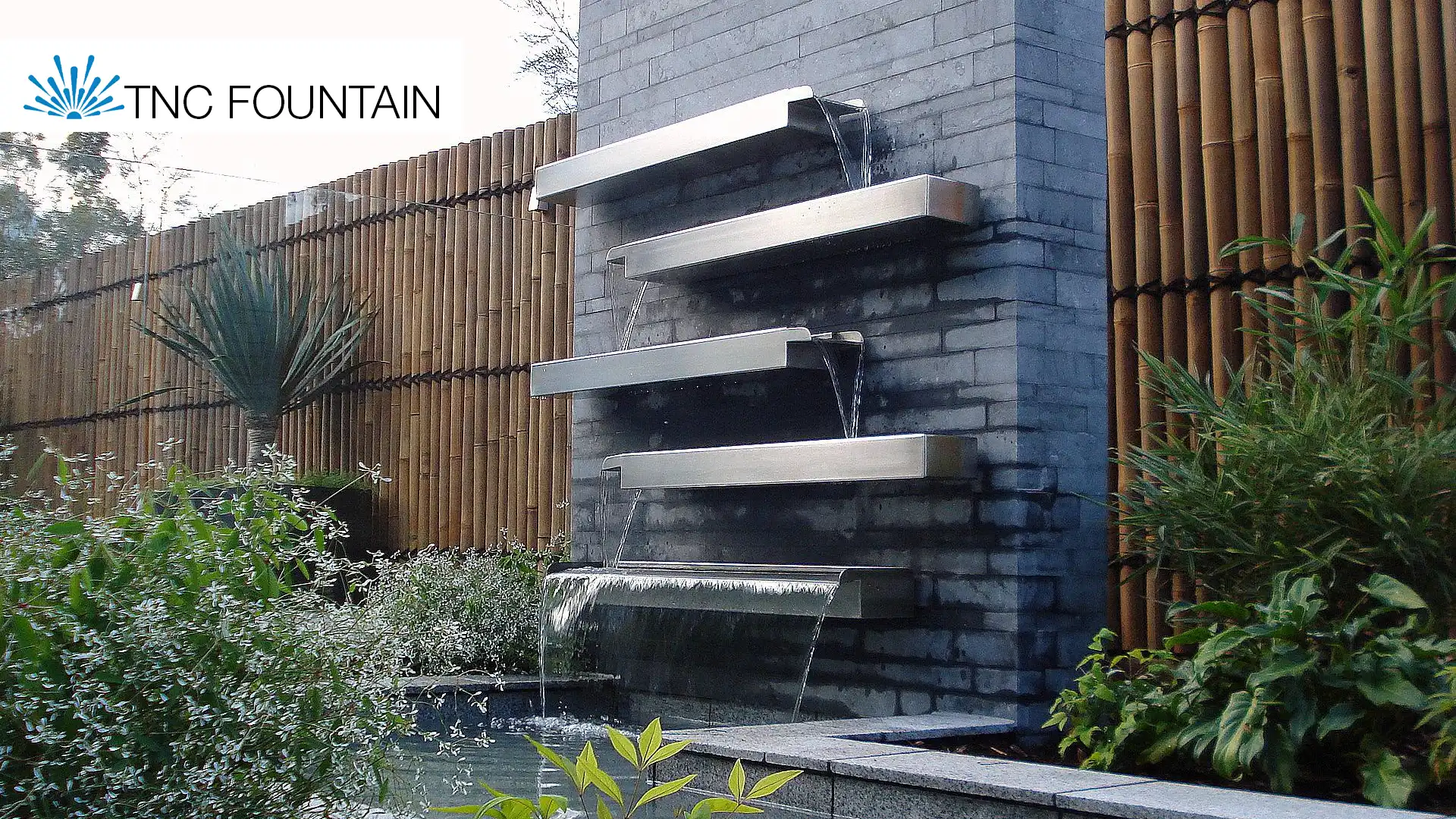

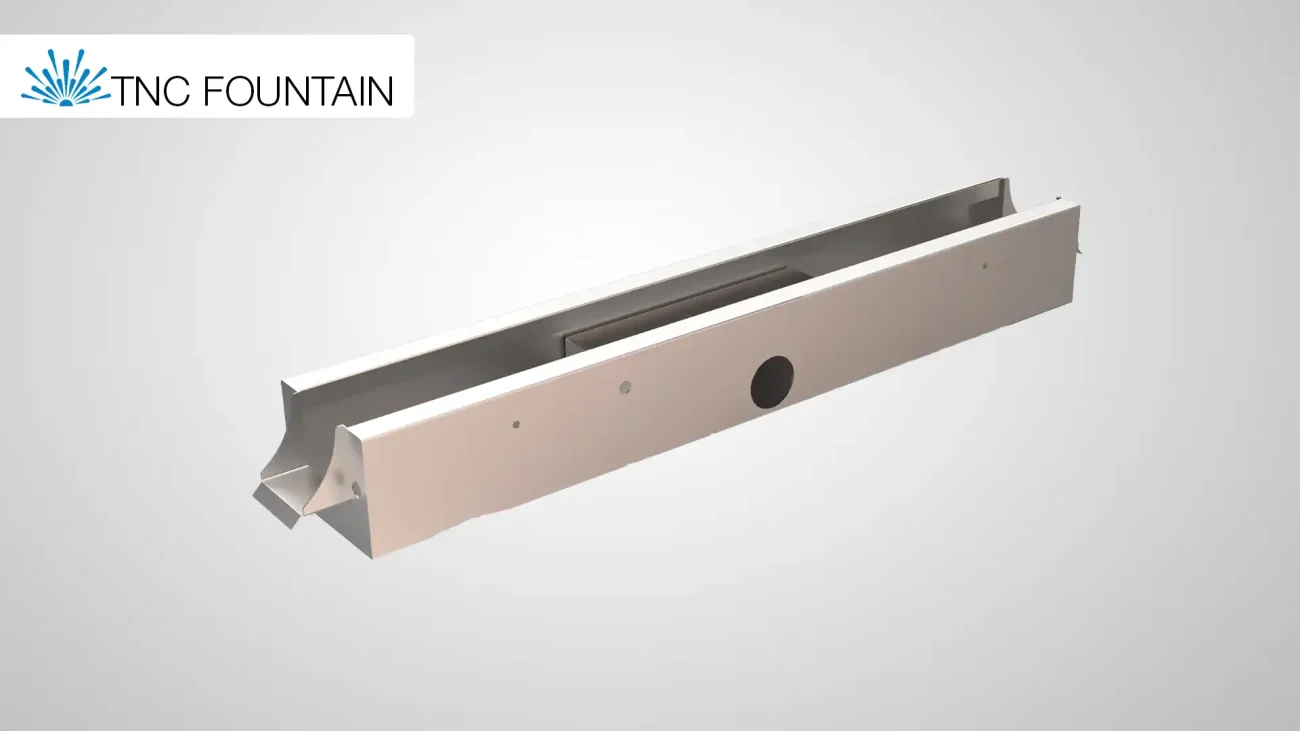

Kariz Water Feature
This is the top choice for any designer looking for the most-chic of neoclassical fountains: Kariz Water Feature. A first impression carries one of thin water stream gentle enough flowing from the mouth of the Kariz. Its connection possibilities within a group are the most prominent aesthetics standpoint.
The Kariz system demonstrated so much malleability because this is the most essential of a Water Feature, without a water slowing agent the Water Feature could take on a range of architectural constraints and project constraints.
H3: Technical exigencies: Why Kariz is the Preferred Water Feature
The Kariz system gathers the most elementary engineering from a meticulously chosen blend of the foremost materials to provide the most affordable pricing and optimum durability till the end:
Installation Versatility: Single or Group installation as per design mandate complexity and scale.
Acoustic & Flow Control: Optional water calming box controls turbulence to address current and future scalability.
Material Integrity: 100% Stainless Steel 304 guarantees life-long resistance to a harsh environment caused by corrosion and assures higher durability.
Cost Efficiency: Affordable pricing with all the qualities expected of a good design product.
Aesthetic Fit: Designed well to complement any neoclassical space, as well as minimalist ones.
Integrating the Kariz Water Feature in Landscape and Green Space Design
The Kariz wall fountain is an essential and coveted item in both elite landscaping aesthetics and Outdoor Water Fountains, complementing sophisticated open spaces. It cascades water from hotter nozzles to colder ones that, together, give a sort of unresistable crystal water stairway effect. The sound of the waters ignites a unique sandalwood salon-like calm completely over its environment while beauty itself chooses to hang out in it.
H3: How Does the Kariz Water Feature Enhance Luxury and Serenity?
The Kariz project is relevant for a chic yet tranquil modern attraction. Be it transparent steelwork or reflective streams, the hypnotizing “flow” certainly lifts the walls in numerous set-ups:
Stress Relief and Relaxation: It brings in the unending assurance of the peace of nature as of sound.
Aesthetic Appeal and LED Lighting: Modern flair and elegance are all achieved with customizable LED lights. The lights can be quite a drama factor during the night around the Kariz fancied Water Feature.
Air Quality: The medium promotes the restoration of comfortable and hygienic air qualities with continuous Humidity control.
Versatile Styling: Its sleek design would go well with trends in interior design to modernize any thing, including minimalist, classic, wood, stone, or glass decor.
Installation and Maintenance Protocols for Optimal Performance
Negligible Installation Protocols and any kind of care are fatal for the well being and continued operation of the Kariz system. It thrives on an energy-efficient water circulation pump and thick 304 stainless steel construction.
Installation Steps:
Site Inspection: Examine the strength of the wall and ensure proper conducive placement to vital water and power sources.
Nozzle Mounting: Place them at increasing heights relative to each other, to facilitate direct connection to the water in the main collection.
Pump Setup: Allow for smooth low-consumption pump operation, ensuring that water is distributed evenly across every nozzle-causing cascade.
Testing and Adjustment: Ensure the water pressure is correctly balanced around the entire system to have a beautifully cast, constant cascade.
Essential Maintenance Tips:
Water Replacement: The water should be replaced depending on material to make it practical to curb algae growth and mineral deposition.
System Cleaning: For maintaining efficiency and integrity of flow, the pumps and filter system should be cleaned monthly.
Water Treatment: Some antiscaling treatment meant for water clarity can be used to prevent calcification on those nozzle outlets.
LED Checks: Any applied LED corner must be checked and repaired for maintainability from impairment.
Blending Kariz Water Feature with Contemporary Material
To harmonize aesthetic vision between the project and material loupe, the Kariz definitely wins out every time.
Material Paired Ideas to Design for Maximum Impact:
Natural Stone (Marble, Granite): Allows for a deep, contrasting background that brings instant opulence and scale.
Thermowood or Exotic Hardwoods: Wood paradox offers a harsh but warm fusion of rustic texture and silken modern form itself.
LED Backlighting: Accentuates water flow with ambiance factors on the experience disturbed with leverage.
Glass/Mirror Panels: Reflective usage strategically enhances the light reflection and the perceived depth of the installation.
Technically Comparing Kariz Water Feature and Wet Wall Fountain
The advantages of the Kariz over the uniform Wet Wall are greater in terms of flexibility in design and sound profiles:
| Characteristic | Kariz Water Feature | Wet Wall Fountain |
| Water Flow | Layered cascades from individual nozzles | Uniform sheet flow, typically frameless |
| Visual Effect | Crystal-clear, articulated waterfall tiers | Glossy, consistent, monolithic surface |
| Sound Profile | Gentle waterfall murmur (therapeutic) | Soft, consistent trickle or whisper |
| Maintenance Focus | Nozzle precision & pump checks | Algae prevention & surface cleaning |
The Kariz Water Feature is a pre-designed, flexible decorative fountain system that can be used indoors and outdoors. It possesses a variety of rigid nozzles that can form different levels to build an articulated water flow into the base pool and makes this feature ideal for gardens, rooftops, modern patios, or sophisticated indoor designs.
Next Steps: Perfect the Execution of Your Project
Get in touch with our engineering team today for a complete hydraulic analysis and to assure the proper stainless steel alloy and system configuration for your Kariz Water Feature or Outdoor Water Fountains project. Steer clear of the common mistakes in installation and secure long life for your design.

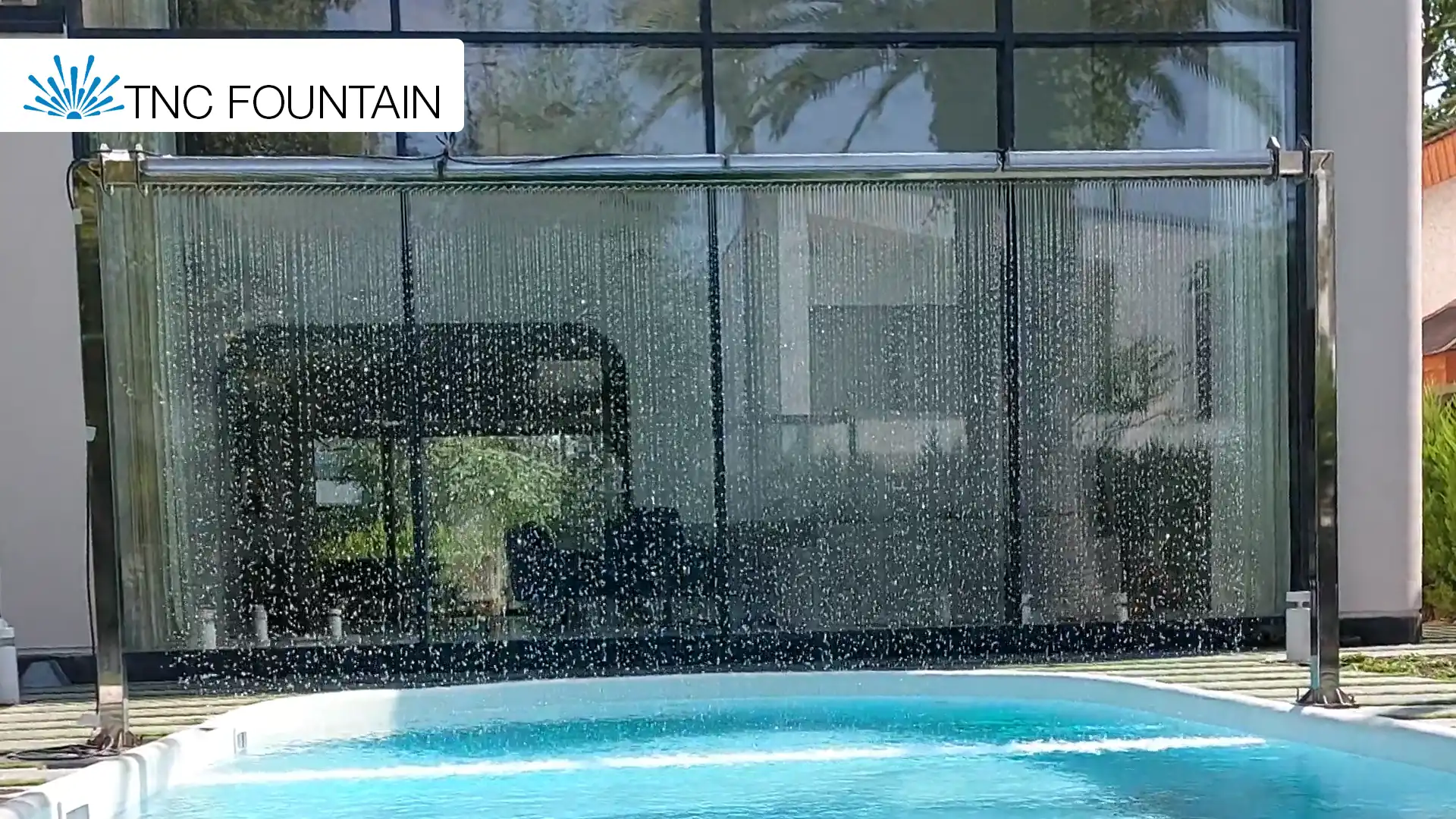

Rain Water Curtain
The Rain Water Curtain fountain falls firmly into the category of premium Outdoor Water Fountains and is ideally suited for refined exterior spaces. Engineered in linear, square, or circular configurations, this feature is designed to generate a highly realistic rainfall effect, characterized by gentle, noticeable water splashing and an exceptionally soothing auditory presence.
Thanks to its inherently simple installation procedure and the vast array of customizable sizes, the Rain Water Curtain serves as an indispensable element for revitalizing various high-value spaces. It provides a perfect blend of visual drama and ambient sound quality, making it a critical choice for:
Rooftop gardens (also known as roof terraces).
Terraces and elevated patios.
Villa courtyards and private estates.
Building entrances and corporate plazas.
Technical Mandate: Core Features for Garden Water Fountain Resilience
The design integrity of the Rain Water Curtain is upheld by several key engineering features that ensure longevity and consistent water quality, making it a reliable garden water fountain option:
Vibration Dampener & Internal Water Divider: This critical inclusion works to eliminate turbulence and guarantees absolutely uniform water distribution across every single nozzle outlet.
Simplified Installation: The design philosophy focuses on a ready-to-use system, minimizing on-site complexity and setup time.
Material Specification: Constructed exclusively from 304 & 316 stainless steel alloys to provide maximum prevention against rust and permanent corrosion in exterior environments.
Nozzle Customization: Available with options for 1, 2, or 3 rows of nozzles (additional rows can be accommodated upon request).
Scalability: Offers multiple size options, ranging from 25 cm to 200 cm (in a single seamless piece), with capability for larger sizes utilizing seamless connections that prevent any disruption to the water flow.
Design Flexibility: Available in customizable shapes including linear, circular, curved, or square designs, based entirely on specific customer requirements.
Critical Engineering Considerations for Rain Water Curtain Maintenance
While Rain Water Curtain systems profoundly revitalize any space, their performance can become severely compromised if crucial factors are overlooked during the design and selection phase, specifically concerning maintenance.
What Are the Risks Associated with Small Nozzles and Collector Systems?
The operation relies on ejecting water through numerous small nozzles to achieve the perfect rainfall effect. However, maintenance challenges arise from:
1. Nozzle Clogging and Water Sedimentation:
Nozzles are inherently prone to mineral and scale buildup over time, even with filtered water.
Clogged nozzles disrupt the intended water flow pattern, leading to significant aesthetic degradation within months.
Solution: Designers must specify nozzles that feature removable caps for easy descaling maintenance—a non-negotiable requirement.
2. Debris Management in Collector Systems:
The numerous small water outlets common in Rain Water Curtain systems are highly vulnerable to contamination from leaves, plastic debris, and dust.
Accumulation leads to partial water flow failure and system stress.
Prevention Methods:
Install basket filters on all fountain pumps prior to water entering the main supply lines.
Select designs with highly accessible collectors to facilitate rapid, regular debris removal.
Mandatory Material Specifications for Outdoor Water Fountains
For optimal durability and longevity, material selection is paramount:
Construction: Must exclusively use stainless steel alloy construction (304 or 316 grade). Brass nozzles with appropriate plating are acceptable for certain budget-constrained projects.
Critical Warning: Never use white PVC pipes for collector or distribution manifold construction due to their inherent unsuitability for pressure distribution and longevity.
The Inherent Dangers of White PVC Pipe Construction
Some manufacturers employ non-rated white PVC pipes to reduce costs by drilling holes to simulate nozzles. This practice has major drawbacks:
Aesthetic Failure: Inconsistent hole alignment rapidly ruins the intended visual effect.
Maintenance Crisis: Leads to rapid sediment buildup in the poorly drilled holes.
Lifespan: Results in a non-repairable design with an extremely short operational lifespan.
Ideal Applications for a Rain Water Curtain
The Rain Water Curtain is best suited for outdoor environments due to its characteristic water splash, making it a perfect Outdoor Water Fountains choice for:
Rooftop gardens and open-air venues.
Landscape features and public parks.
Poolside installations where splash is naturally integrated.
Building entrances and high-visibility areas.
Technical Requirements Summary:
Water Supply Pipe: Selection depends on fountain length and nozzle row count. Recommended Materials: Polyethylene pipes or UPVC pipes.
Pipe Diameter: Longer fountains require larger diameter pipes. Long spans should utilize the main pipe as the collector, with 1-inch branch lines added at appropriate intervals to maintain consistent pressure throughout the system.
Maintenance Protocol: Requires a strict schedule including regular nozzle cleaning, periodic water replacement, pump filter maintenance, and the use of anti-scale treatments.
This comprehensive technical guide ensures your Rain Water Curtain maintains optimal performance and aesthetic appeal throughout its lifespan. Proper material selection and professional installation are essential to prevent common operational issues while maximizing the system’s distinctive visual and auditory impact.
Next Steps: Ensure Flawless Project Execution
For a detailed hydraulic analysis and to guarantee the selection of the correct stainless steel alloy and filtration system for your Rain Water Curtain or Outdoor Water Fountains project, contact the TNC engineering team today. Avoid common installation pitfalls and secure the longevity of your design.
